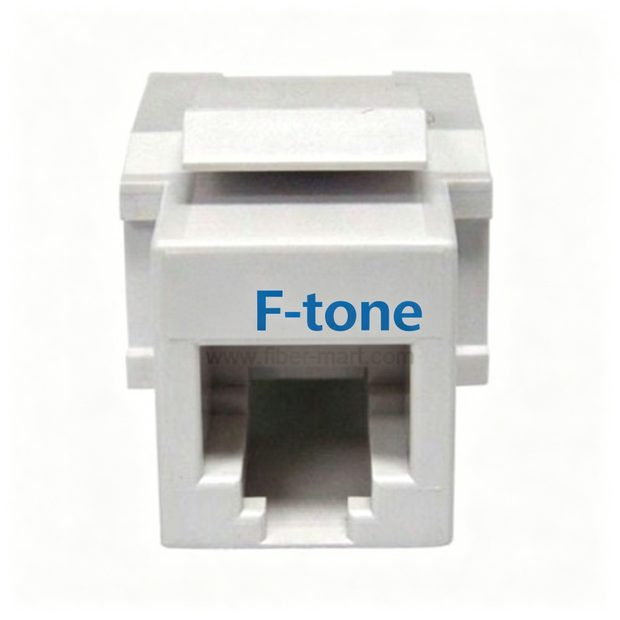

Cat3 Voice RJ11 Keystone Jack

Cat3 Voice RJ11 Keystone Jack

Просмотреть всю информацию

Part Number: RJ-CAT3-J-FM

Cat3 Voice RJ11 Keystone Jack

Our CAT3 Voice RJ-11 Modular Keystone Jacks - works great for adding a Telephone outlet into any room of the house or office. They are designed for superior performance and meet or exceed the industry standards. They are color coded for TIA/EIA standards. The universal wiring scheme provides a hassle free wiring system with easy to read labels.

Features

CAT3 Voice RJ-11 Keystone Jack /Modular Connector Features:
Designed for all voice connectivity applications
Lead frame technology provides maximum performance and superior signal quality
Engineered to provide 110 IDC termination reducing installation time
Terminate with 110 punch down tool
One piece termination cap allows for a quick and easy termination
Includes an integrated USOC/UTP color wiring diagram
Compatible with all ICC faceplates, Decorex inserts, surface mount boxes, and blank patch panels
Works with our telephone line cords
Installation instructions included
UL listed

Specifications

Electrical
Current rating: 1.5 amps max.
Voltage rating: 150 volts alternating
Dielectric withstanding voltage: 1000 volts rms, 60Hz
Insulation resistance: >10 mohms

Mechanical

Mated force: 5 lbs max.
Unmated force: 5 lbs max.
Plug retention force: 20 lbs min.
Durability: 750 cycles

Physicals

Housing: ABS, UL 94V-0
Contact: Phosphor bronze gold plating over 100 inches of nickel
Gold plating: 1.27 micron/50 micro inch min.
Connector: insulation displacement connector (IDC) accepts 22~24 AWG solid wire


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
