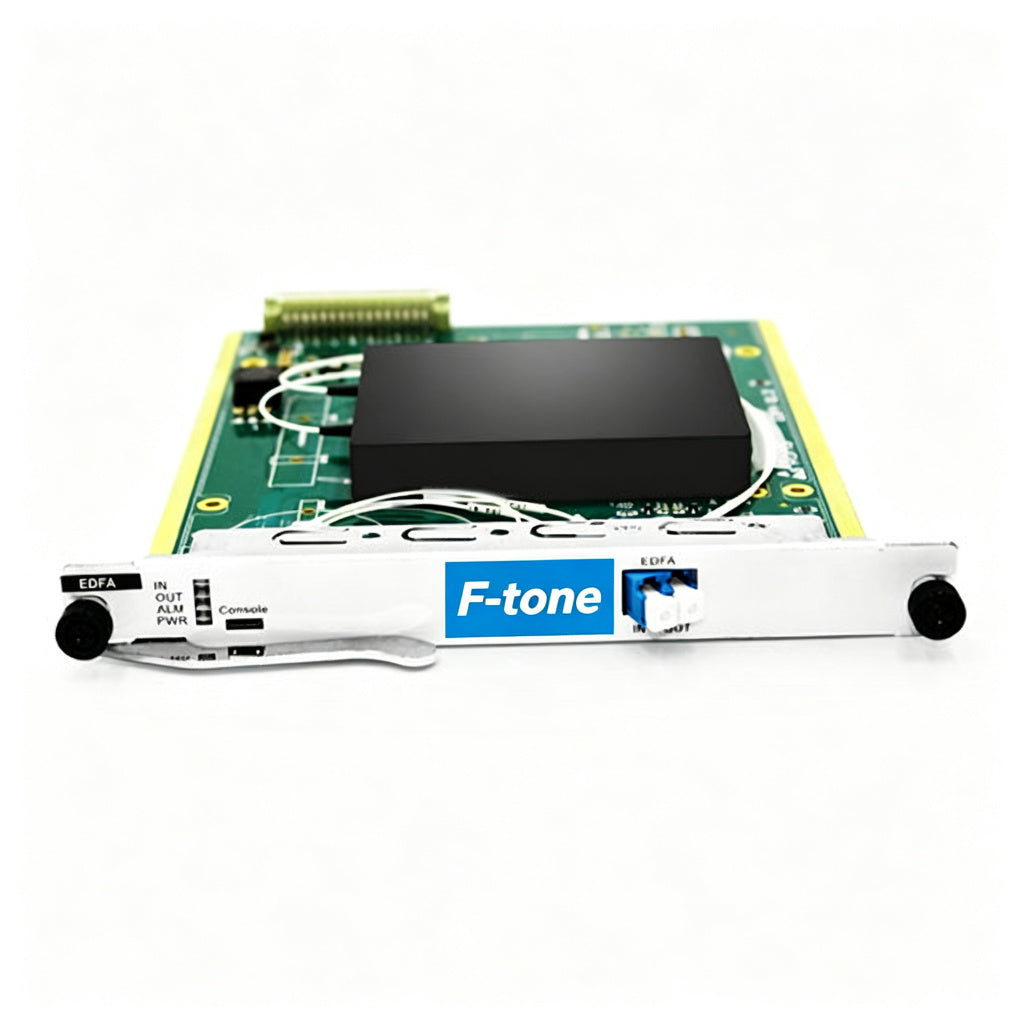

15dBm Single Channel In-Line EDFA Optical Amplifier for SDH Networks

15dBm Single Channel In-Line EDFA Optical Amplifier for SDH Networks

Просмотреть всю информацию

Part Number: SDH-EDFA-LA-O15

15dBm EDFA Optical Amplifier 1U Rack Mount for SDH Networks Single Channel In-Line

F-tone SDH-EDFA-LA-O15 in-line amplifier designed for the Synchronous Digital Hierarchy (SDH) applications are specifically designed for single wavelength optical transmission system to replace traditional O-E-O repeaters. It operates in the middle of an optical link designed for optical amplification between two network nodes on the main optical link. The device features wide input power range from -25dBm to -10dBm, output power up to 15dBm and low noise figure. It also includes RS-232 computer interface.


This Rack mountable amplifier work by default in constant signal-gain mode, but they can be configured to constant total output-power mode. These units are used in long-hauls transmission applications, especially for PDH, SDH, SONET and optical Ethernet transmission application. Its ease-of-use and performance make the SDH-EDFA-LA-xx series the ideal solution for Access and Metro optical networks.

Features

  • Service as a In-Line amplifier C-Band 1550nm
  • Tunable output power: 15dBm
  • Wide input power range: -25dBm to -10dBm
  • Low loise figure: typical is< 4.5dB
  • Connectors: SC/UPC, SC/APC, FC/UPC, FC/APC, LC/UPC, LC/APC, ST/UPC and ST/APC connectors are available
  • Single or dual 110VAC, 220VAC, -48VDC, and/or 100V-240V power supply
  • Serial interface comes with RS232, RS485
  • 1U 19” rack mount structure for easy installation
  • All performance compatible with BellcoreGR-1312-CORE request
  • Use for Access and Metro optical networks
  • Works with point-to-point applications
  • High stability and reliability
  • 3 years warranty
  • 10 years of operation life
  • OEM is available

Highlights

  • Hot Swap Network Management Agent
  • SNMP network management interface: RJ45
  • Support Telnet for optional
  • ASE noise filter & ASE suppression filters
  • High Precise ACC (automatic constant current) Circuit as default, if you need other circuit, please contact at [email protected]
  • ATC (automatic temperature control) function
  • Offering status appearance and diagnosing fault with LCD

Mechanical Structure

Structure Example


NOTE:


  • The SDH EDFA from F-tone including 1+2+3.

Parameters Symbol Min Typ Max Unit
Operation Wavelength λc 1530 1550 1562 nm
Saturated output power (1) Po 15 dBm
Input power (2) Pi -25 -10 dBm
Gain G ------ ------ dB
Noise Figure NF 4.5 dB
Input Isolation ISOi 30 dB
Output Isolation ISOo 30 dB
Input pump leakage PumpLin -35 dBm
Output pump leakage PumpLout -45 -45 dBm
Return Loss RL -45 dB
Polarization Dependent Gain PDG 0.3 dB
PMD PMD 0.5 ps
Operation Temperature Tw -5 60 ℃
Storage Temperature Ts -40 80 ℃
Humidity (3) 10 85 %
Power Voltage Vps 85/170 110/220 132/264 VAC
Power Consumption P 18 W
Serial interface RS232, RS485
Power supply 110VAC, 220 VAC, -48VDC, or 100V-240V
Connectors Simplex SC/UPC, SC/APC, FC/UPC, FC/APC, LC/UPC, LC/APC , ST/UPC and ST/APC available
Warranty 3 years

(1): Customer optional
(2): Pre-Amplifier: input power –35~-25dBm; Inline-Amplifier: input power –25~-10dBm, Booster: input power –10～+6dBm
(3): No condensation


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
