1 Fiber Single-mode Single-Armored Multi-core Tight Buffered Indoor Cable SFAC

1 Fiber Single-mode Single-Armored Multi-core Tight Buffered Indoor Cable SFAC

Просмотреть всю информацию

Part Number: SFAC-B1.1

Multi-core Tight Buffered 1 Fiber Single-mode Single-Armored Indoor Cable SFAC

This cable is suitable for indoor level and vertical cabling, it could be laid out directly along with indoor wall and ceil. 1~2 fibers cable could work as armored jumper and pigtails.

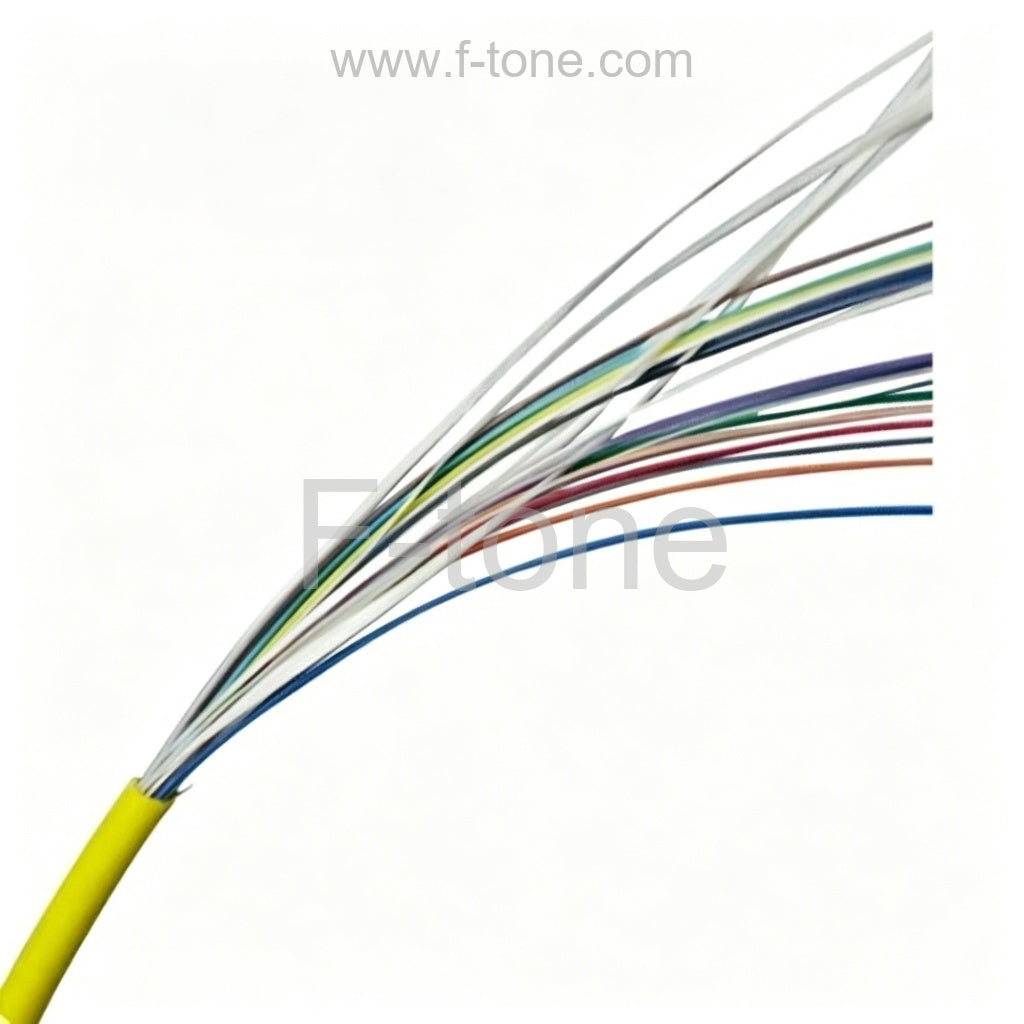

The cable consist of several 0.6mm tight buffer fibers, armored flexible metal tube, a layer of Kevlar yarn, and a outer jacket.

Item Details

  • Fiber Count : 1 Fibers
  • Fiber Type: Single-mode G.652D
  • Outer Jacket: PVC

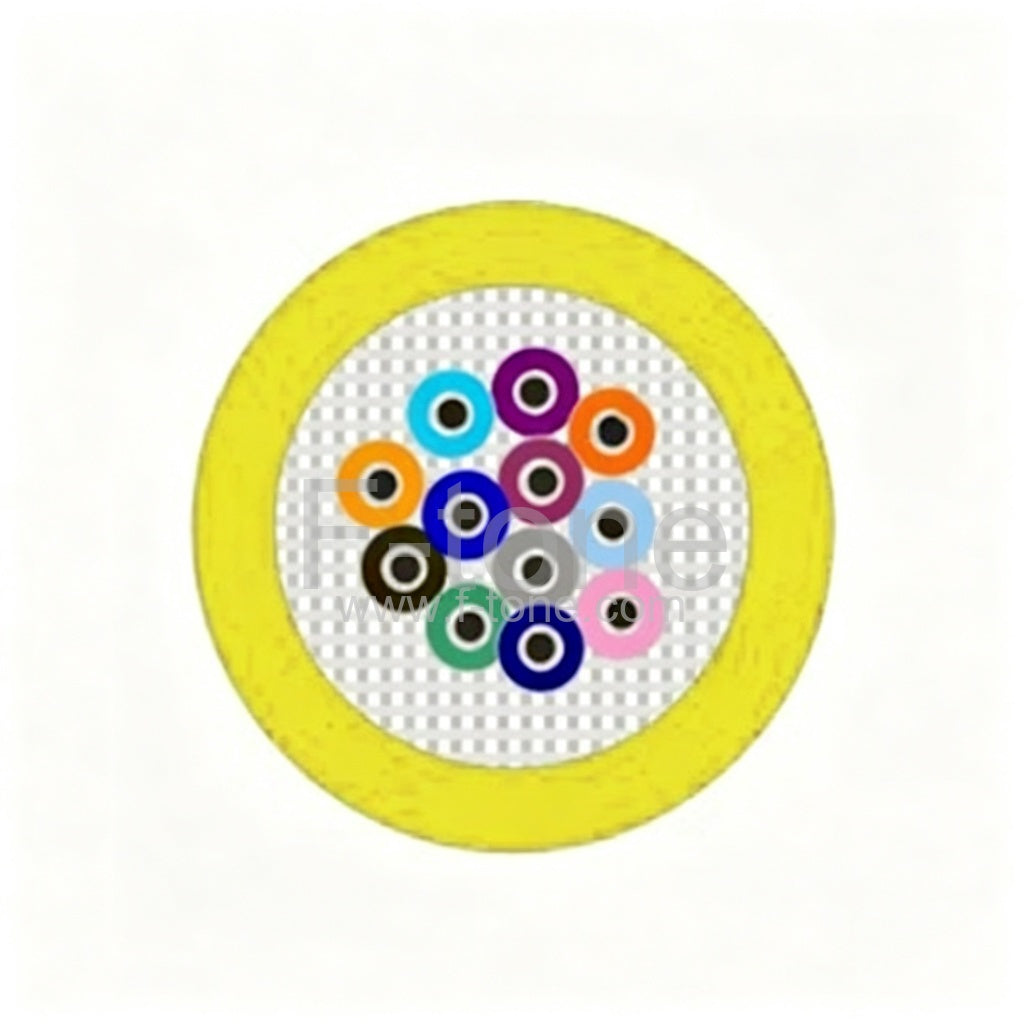

Cable Structure

Features
  • Good mechanical property and environment property.
  • Soft, agility, convenience for connect.
  • Flexible metal tube and outer jacket provide good performance of high compression resistant,high tensile resistant,rat –bite resistant.
  • This cable is suitable for indoor level and vertical cabling, it could be laid out directly along with indoor wall and ceil. 1~2 fibers cable could work as armored jumper and pigtails.
  • The cable consist of several 0.6mm tight buffer fibers, armored flexible metal tube, a layer of Kevlar yarn, and a outer jacket.
  • Single-mode:9/125µm; Multi-mode: 62.5/15µm & 50/125µm Optional.
Application
  • Pigtails and Patch cord
  • Ideal for use in optical device, equipment
  • Ideal for use in optical distribution frame

Package

Package 1
Package 2
Package 1: usually for indoor cable, light weight cables.
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

Mark


Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX

Cable production throughout the chart

Cable Count Out Sheath
Diameter		 Weight Minimum Allowable Tensile Strength
(N)		 Minimum Allowable Crush Load
（N/100mm)		 Minimum Bending Radius
(MM)		 Storage
Temperature
（MM) （KG) short term long term short term long term short term long term （℃）
1 3 12 200 100 5000 3000 20D 10D -40+60
2 3 18 200 100 5000 3000 20D 10D -40+60
4 4 70 300 150 5000 3000 20D 10D -40+60
6 4.5 70 300 150 5000 3000 20D 10D -40+60
8 5 80 400 200 5000 3000 20D 10D -40+60
12 6 100 400 200 5000 3000 20D 10D -40+60

G.652 50/125µm 62.5/125µm
Attenuation
(+20°C) (dB/km)		 @850nm ≤3.0 ≤3.0
@1300nm ≤1.0 ≤1.0
@1310nm ≤0.36
@1550nm ≤0.22
Bandwidth (Class A) (MHz·km) @850nm ≥600 ≥200
@1300nm ≥1200 ≥600
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc (nm) ≤1260



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
