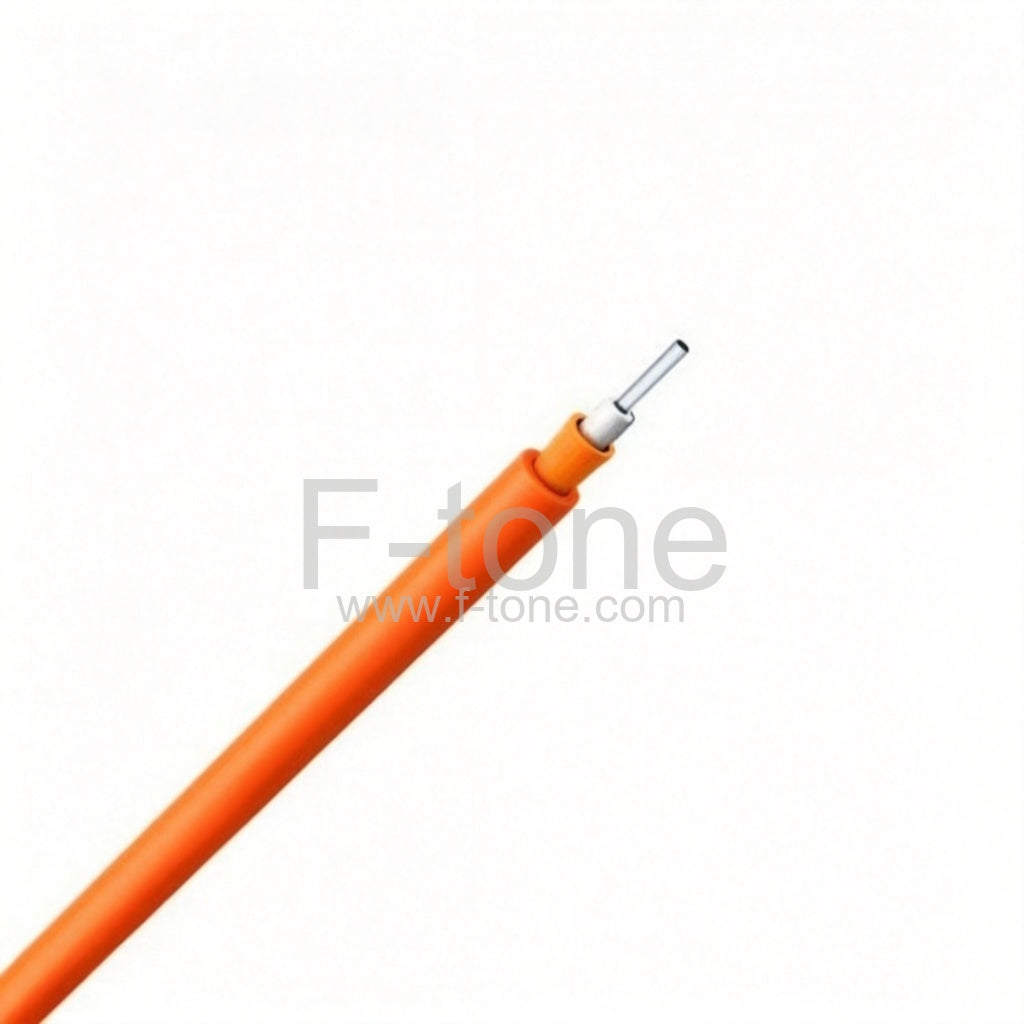

Corning Fiber OM1 62.5/125μm Multimode 900μm Tight Buffered Optic Fiber Cable-Riser

Corning Fiber OM1 62.5/125μm Multimode 900μm Tight Buffered Optic Fiber Cable-Riser

Просмотреть всю информацию

Part Number: SFC-A1bRC9

OM1 62.5/125μm Multimode Corning Fiber Multimode 900μm Tight Buffered Optic Fiber Cable-Riser

900μm buffered fiber is ideal for routing within cable enclosure and for environment with limited space. The 900μm buffered cable comes with white colour jacket as standard.

The 0.9mm tight buffer is easily stripped, and have excellent tension and environmental performance.

Item Details

  • Fiber Count: 1 Fiber
  • Fiber Type: 62.5/125μm Multimode Corning Fiber
  • Flame Rating: Riser

Cable Structure

Features
  • Easy to strip.
  • Small bending radius, excellent tension and environmental performance.
  • Customized fiber type available.
  • Different flame rating available : Riser, LZSH, Plenum.
Application
  • Ideal for routing within cable enclosure and for environment with limited space
  • Components for various indoor cables
  • Suitable for patch cords and pigtails
  • Suitable for communication equipment served

Package

Package 1
Package 2
Package 1: usually for indoor cable, light weight cables.
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

Mark


Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX

Cable production throughout the chart



Cable Count Out Sheath
Diameter		 Weight Minimum Allowable Tensile Strength
(N)		 Minimum Allowable Crush Load
（N/100mm)		 Minimum Bending Radius
(MM)		 Storage
Temperature
（MM) （KG) short term long term short term long term short term long term （℃）
1 0.9+/-0.05 3.00 100 50 100 80 20D 10D -20～+60


G.652 50/125µm 62.5/125µm
Attenuation
(+20°C) (dB/km)		 @850nm ≤3.0 ≤3.0
@1300nm ≤1.0 ≤1.0
@1310nm ≤0.36
@1550nm ≤0.22
Bandwidth (Class A) (MHz·km) @850nm ≥600 ≥200
@1300nm ≥1200 ≥600
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc (nm) ≤1260


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
