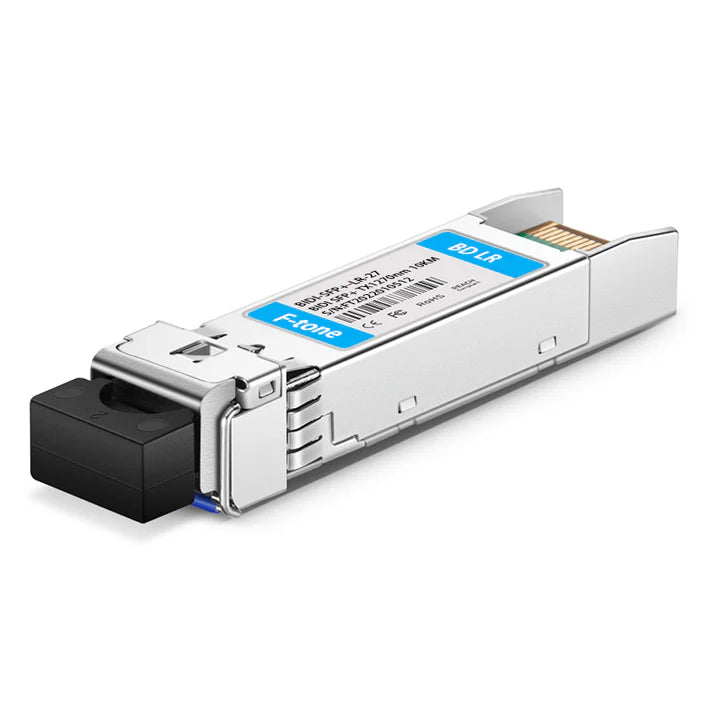

IBM 45W2420 Compatible 10GBASE-LR SFP+ Transceiver

Part Number: SFP-10G31-10-IBM

10GBASE-LR SFP+ 1310nm 10Km SMF Transceiver IBM 45W2420 Compatible

The SFP-10G31-10 series single mode transceiver is small form factor pluggable module for serial optical data communications 10GBASE-LR/LW. It is with the SFP+ 20-pin connector to allow hot plug capability. This module is designed for single mode fiber and operates at a nominal wavelength of 1310 nm.

Key Features

• 10GBASE-LR SFP+ 1310nm 10km optical transceiver
• High Quality with ISO9001, TUV, CE, FCC, UL and RoHS certificates
• Factory New
• Fully compatible with IBM
• Operating data rate up to 10.3Gbps
• 1310nm DFB-LD Transmitter
• Distance up to 10km
• Single 3. 3V Power supply and TTL Logic Interface
• Duplex LC Connector Interface
• Hot Pluggable
• Compliant with MSA SFP+ Specification SFF-8431
• Compliant with 10GFC 1200-SM-LL-L FC standard
• Compliant with 8.5G FC-PI-4 800-SM-LC-L FC standard
• Compliant with 4.25G FC-PI-4 400-SM-LC-L FC standard
• Compliant with 2.125G FC-PI-4 200-SM-LC-L FC standard
• Compliant with 1.0625G FC-PI-4 100-SM-LC-L FC standard
• Compliant with IEEE 802.3ae 10GBASE-LR/LW

OEM and ODM

F-tone designs, develops, manufactures and markets a diverse portfolio of high-performance, cost- competitive fiber optic communication products for all applications. We are mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for F-tone in the world.

• OEM/ODM order is available
• We can supply SFP-10G31-10 according to your requirements, and design SFP-10G31-10 label and packaging for your company.
• We welcome any inquiry for customized SFP+ optical transceiver. Our primary corporate capabilities include software engineering, systems engineering, network engineering, systems support, program management, and information assurance engineering and analysis.

Labeling

• F-tone Labels as default
• Generic Labels
• Specific Labels as Request
• No Labels

Packaging

• antistatic bag
• packed on pallets in a box(Default Customer Options)
• Specific Labels as Request
• Seperate white Box for each transceiver

Shipment

• International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
  FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
  DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
• Shipments are usually dispatched within 2 working days after received payment

Save Cost By Buying 45W2420 From Original Manufacturer F-tone Directly.

F-tone is an professional manufacturer & supplier of IBM 45W2420 transceivers. All of our IBM 45W2420 transceivers are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee IBM 45W2420 transceivers to work in your system and all of our IBM 45W2420 transceivers come with a lifetime advance replacement warranty.
If you have questions about IBM 45W2420 optics, please feel free to contact us at [email protected].

Ordering Information

Prices and specifications are subject to change without notice. F-tone Transceiver is not responsible for typographical or photographic errors.

Specifications

• Form Factor: SFP+
• Device Type: Transceiver module
• Interface (Bus) Type: Plug-in module
• Connectivity Technology: Wired
• Application: 10GBASE-LR
• Data Transfer Rate: 10Gbps
• Wavelength: 1310nm
• Max Distance: 10km
• Fiber Type: SMF
• Connector: Duplex LC
• DDM: With DDM

Applications

• 10GBASE-LR at 10.31Gbps
• 10GBASE-LW at 9.95Gbps
• 1000 Base-LX Ethernet
• 8XFC at 8.5Gbps
• 4XFC at 4.25Gpbs
• 2XFC at 2.125Gpbs
• 1xFC at 1.0625Gbps
• Other optical links

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
