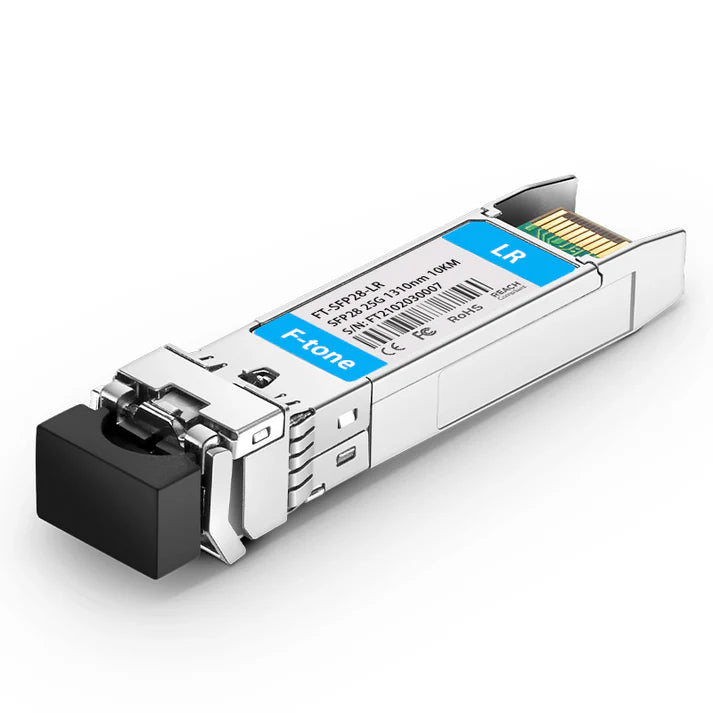

25GBASE-LR SFP28 1310nm 10km DOM LC SMF Fiber Transceiver

25GBASE-LR SFP28 1310nm 10km DOM LC SMF Fiber Transceiver

Просмотреть всю информацию

Part Number: SFP28-25GLR-31FM

25GBASE-LR SFP28 DOM Optical Transceiver Module for Data Center and Telecom (SMF, 1310nm, 10km, LC, DOM)

The SFP28 transceiver provides 25GBase-LR throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via an LC duplex connector. It provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data center. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.

Spotlights

  • High Quality 25G Chip, DFB+PIN, Built-in CDR
  • Fully Compatible With 200+ Vendors
  • EMC Support, Anti Electro-Static Discharge and Radiation Resistant
  • For Data Center and Telecom Applications
  • Class 1 Laser Safety
  • Up to 10km (Support RS-FEC, FC-FEC)

Description

Part Number SFP28-25GLR-31 Vendor Name F-tone
Form Factor SFP28 Max Data Rate 25.78Gbps
Wavelength 1310nm Max Cable Distance 10km
Connector LC Duplex Cable Type SMF
Transmitter Type DFB 1310nm Receiver Type PIN
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -2~4dBm Receiver Sensitivity <-14dBm
Power Consumption 1W Extinction Ratio 2dB
Modulation Format NRZ CDR TX and RX
Transmit and Dispersion Penalty 1dB Powerbudget 12dB
Packaging Technology TO-CAN Packaging FEC Function Supported
Protocols MSA Compliant, CPRI, eCPRI Application 25GBASE Ethernet, Data Center, Telecom

Datasheet

Part Number Distance Fibers Port
SFP-25G-SR-SFM 100m MMF LC Duplex
SFP28-25GLR-31FM 10km SMF LC Duplex
SFP28-25G-BXFM 10km SMF LC Simplex
SFP28-25G-BXFMI 10km SMF LC Simplex
CWDM-SFP25G-40SFM 40km SMF LC Duplex

Quality Certifications

Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.

Compatibility Matrix

Having been individually tested on a large amount of branded switches and servers, F-tone.COM generic compatible transceivers break free of vendor lock-in and guarantee continued flawless interoperability and compatibility with third party vendors as below.

ADVA Chelsio A10 Networks Cumulus Linux Gnoda Harting Hitachi Hillstone
D-Link Emulex EdgeCore F5 Networks Hirschmann IMC Networks Ixia Infinera
MRV Palo Alto Networks Nokia Q-logic Inteno JDS Uniphase ISIS Linksys
Solarflare TP Link SMC UniFi Long haul Lanner LevelOne LCSI
Ubiquiti ZYXEL ZTE AOM-CTG-i1SM Milan McAfee Mikrotik Myricom
ASGA Atto Accedian Networks Axis NetScout N-TRON Netscaler NEC
Agilent-Avago Allnet Allied Telesis Altera Stratix Netonix Omnitron Nimble Storage Optelian
Amer Networks Actelis Asante Allen Bradley Stratix Optone Opnext Orckit Optech
Aerohive SR2148P Alaxala Apple Avid ISIS Storage PENo ENto Networks Planet Penguin Arctica PicoLight
Barnfind Blackmagic Broadcom Ceragon QSAN RAD QNAP Redback
Coriant Cyberroam CTCUnion Compaq Ruijie Raiscom Ruggedcom RiverStone
CTC Union Centec Check Point Digital Scientific Atlanta Synology Siemens Seven solution
DCN Delta DATACOM Engenius SAGEM Source Photonics Sixnet Sonnet
Ericsson ELINX EMC ECI Speednt SUN SDN Sophos
FibroLAN Fujitsu Fortinet Fluke Network Telco Transition Networks Tejas TRENDnet
Fortigate Gigamon Fiberhome Gigalight Tellabs Xilinx Vixel XMC20 Keymile


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

Посмотреть все

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

Посмотреть все

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
