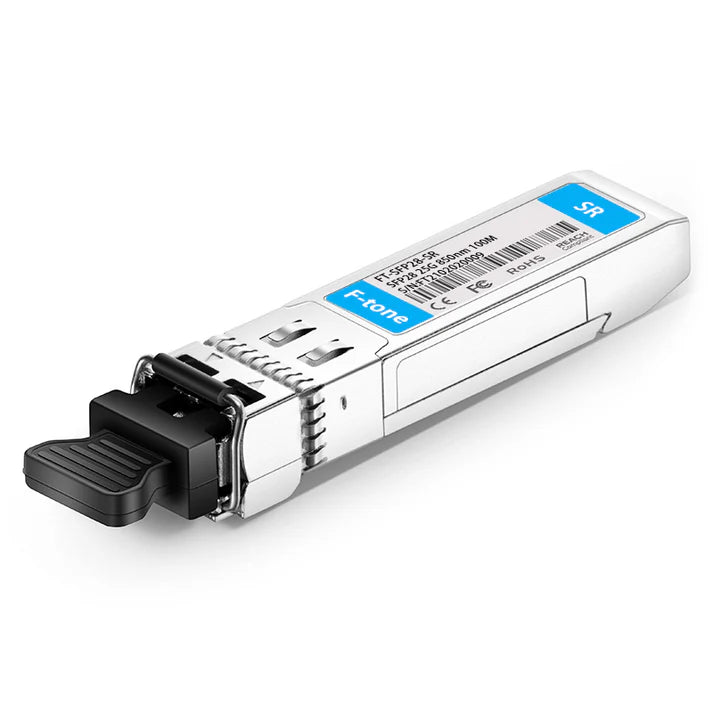

25GBASE-SR SFP28 850nm 100m Industrial DOM LC MMF Fiber Transceiver

25GBASE-SR SFP28 850nm 100m Industrial DOM LC MMF Fiber Transceiver

Просмотреть всю информацию

Part Number: SFP28-25GSR-85FMI

25GBASE-SR SFP28 DOM Optical Transceiver Module for Data Center and Telecom (MMF, 850nm, 100m, LC, Industrial, DOM)

The SFP28 transceiver provides 25GBase-SR throughput up to 100m over multimode fiber (MMF) using a wavelength of 850nm via an LC duplex connector. It provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data center, suitable for both outdoor and indoor deployments. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.

Spotlights

  • High Quality 25G Chip, VCSEL+PIN, Built-in CDR
  • Fully Compatible With 200+ Vendors
  • Industrial Temp -40°C to +85 °C, EMC Support
  • For 5G front-haul network deployment
  • Class 1 Laser Safety
  • Up to 100m/70m over OM4/OM3 (Support RS-FEC, FC-FEC)

Description

Part Number SFP28-25GSR-85-I Vendor Name F-tone
Form Factor SFP28 Max Data Rate 25.78Gbps
Wavelength 850nm Max Cable Distance 100m@OM4/70m@OM3
Connector LC duplex Media MMF
Transmitter Type VCSEL 850nm Receiver Type PIN
DDM/DOM Supported Industrial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -8.4~2.4dBm Receiver Sensitivity <-10.3dBm
Powerbudget 1.9dB Receiver Overload 2.4dBm
Power Consumption <1W Extinction Ratio ＞2dB
Modulation Format NRZ CDR TX & RX Built-in CDR
Transmit and Dispersion Penalty 5dB FEC Function Not support
Packaging Technology TO-CAN Packaging EMC (Electromagnetic Compatibility) Supported
Protocols SFF-8472, SFF-8024, SFF-8431, SFF-8432 MTBF 200,000 Hours
Application 25G BASE-SR Ethernet Warranty 5 Years

Datasheet

Part Number Distance Fibers Port
SFP-25G-SR-SFM 100m MMF LC Duplex
SFP28-25GLR-31FM 10km SMF LC Duplex
SFP28-25G-BXFM 10km SMF LC Simplex
SFP28-25G-BXFMI 10km SMF LC Simplex
CWDM-SFP25G-40SFM 40km SMF LC Duplex

Product Spotlights

High Performance and Reliability
  • Low power consumption＜1W, saving power
  • -40℃~85℃ operating temperature
  • Stainless steel material, anti-corrosion, and salt spray resistance
Wide Application
  • Fully compatible with almost all unencrypted devices
  • Widely used on 25G switches, routers, servers, NICs, and other transmission equipment
  • Suitable for 5G fronthaul, industrial and factory automation, outdoor, and other network environments
Protocols and Safety Standards
  • Class 1 laser safety compliant
  • Class B EMC, IEC 61000-4-2 Anti Electro-Static Discharge and IEC61000-4-3 Radiation Resistant
  • Compliant with IEEE 802.3by, SFP28 MSA, SFF-8472, SFF-8432, SFF-8431, SFF-8402

Quality Certifications

Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

Посмотреть все

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

Посмотреть все

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
