Part Number: SM-DX-MTRJ-FM

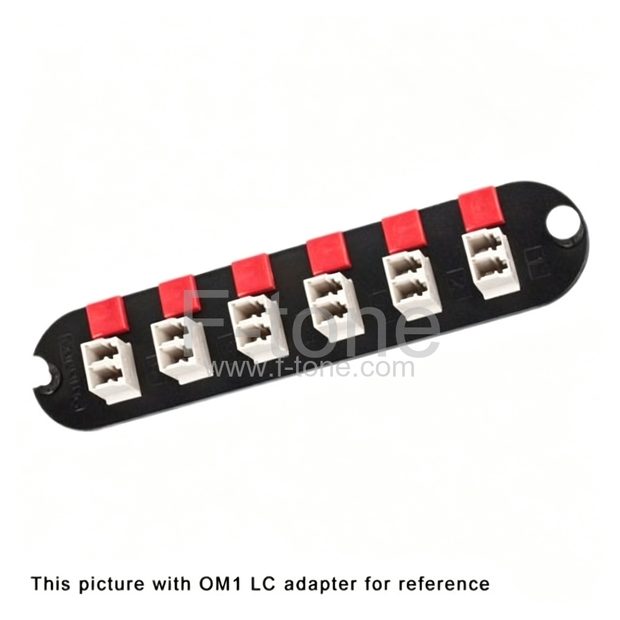

MTRJ Male 2-pin Singlemode Duplex Fiber Optic Pigtail
Fiber pigtail cables provide a fast way to make factory terminations in the field. Factory terminated pigtails can easily be fusion or mechanically spliced to an existing fiber line.
F-tone.COM provide wide degree flexibility on fiber pigtails, including single-mode, multimode and 10G 50/125um OM3 types, simplex fiber, 4 fibers, 6 fibers, 8 fibers, 12 fibers, 24 fibers, 48 fibers and so on. These fiber pigtails can be with fan-out kits and full compliant to Telcordia, EIA/TIA and IEC standards.
MTRJ fiber pigtails include the single mode types and multimode types, MTRJ use a plastic ferrule instead of ceramic, and there are no APC MTRJ connectors. There are female MTRJ and male MTRJ types, the difference is male type are with two pins in the connector. MTRJ fiber optic connector is used in density connections and it is born to use with duplex cables.
Features
- The 2-fiber
- Dual connection
- Single ferrule design
- Low insertion loss and back reflection loss
- Good exchangeability
Specification
| Items | Singlemode | Multimode |
|---|---|---|
| Insertion Loss | ≤0.3dB | ≤0.3dB |
| Return Loss | ≥45dB | |
| Repeatability | ≤0.1dB | |
| Durability | ≤0.2dB typical,1000 matings | |
| Operating Temperature | -40℃～+85℃ |
Technical Test Date
| Test item | Test condition |
|---|---|
| Wet-resistance | Temperature:85℃/relative humidity 85%/14days/insertion loss≤0.1dB |
| Temperature change | Temperature:-40℃～+75℃/relative humidity 10%-80%/42 repetitons/14days/insertion loss≤0.1dB |
| Water resistance | Temperature:43℃/PH5.5/7days/insertion loss ≤0.1dB |
| Vibrancy | Swing 1.52mm/frequency 10Hz~55Hz/X、Y、Z threee direction:2 hours/insertion loss≤0.1dB |
| Load bend | 0.454kg load/100 circles insertion loss ≤0.1dB |
| Load torsion | 0.454kg load/10 circles insertion loss ≤0.1dB |
| Tensility resistance | 0.23kg pull(nakedness fiber),1.0kg(with shell) insertion loss ≤0.1dB |
| Strike | High 1.8m,three directions,8 in each direction/insertion loss ≤0.1dB |
| Reference standard | Bellcore TA-NWT-001209 insertion loss ≤0.1dB |
Custom Information
F-tone offers custom-made pigtails with a wide variety of options:
a. “Unjacketed” fiber pigtails usually installed inside ODF unit.
b. Multi-Strand fiber pigtails without a jacket are ideal for fusion splicing.
c. Multi-Strand fiber pigtails with fan-out are designed for patch panels or cable ducts where space-saving is required.
d. 2, 4, 6, 8, 12, 24 and 48 Strand fiber counts available.
Note :All pigtails can be customized in any fiber type, length, connectors and fiber counts for your requirement.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
