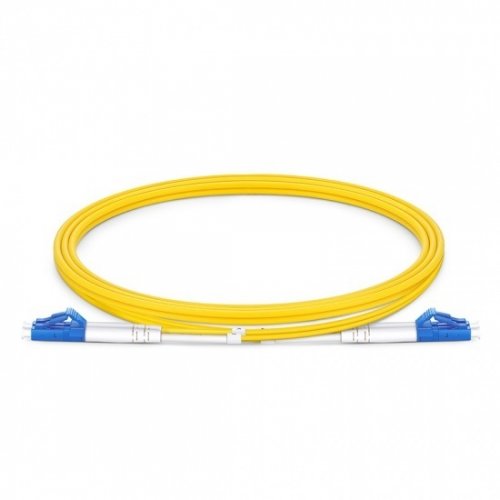

1M LC UPC to LC UPC Duplex 2.0mm PVC(OFNR) 9/125 SingleMode Ultra Low Loss Fiber Patch Cable

1M LC UPC to LC UPC Duplex 2.0mm PVC(OFNR) 9/125 SingleMode Ultra Low Loss Fiber Patch Cable

Просмотреть всю информацию

Part Number: SM-LCU-LCU-DX-B-1M-PVC

1M LC UPC to LC UPC Duplex 2.0mm PVC(OFNR) 9/125 SingleMode Ultra Low Loss Fiber Patch Cable - Yellow

High Density LC-HD Ultra Low Loss Fiber Optic Patch Cable is a totally unique design which can increase panel density to its highest possible, and the lever design utilizes a flexible "push-pull tab" allowing for the connector to be disengaged easily from densely loaded panels without the need for special tools, allow users easy accessibility in tight areas when deploying in data center applications.

Connector LC to LC Jacket OD 2.0mm
Fiber Mode 9/125 um Jacket Color Yellow
Polish UPC to UPC Wavelength 1310/1550nm
Fiber Type Duplex G657A1 Jacket Material PVC
Insertion Loss 0.12dB Interchangeability 0.1dB
Return Loss 50dB Vibration 0.1dB
Operating Temperature -40~75C Storage Temperature -45~85C

Features and Application

Free-floating ceramic ferrule Easy to release trigger connectorLow insertion loss and reflection lossHigh-Speed, High-Bandwidth and Low-CostROHS, IEEE 802.3ae and TIA LOMMF compliantStackable adapters and high precision alignment60%increase in density
CATVMultimediaTest equipmentData centersActive device terminationTelecommunication networksPremise installations

Custom and OEM

1. Customize Jacket Materials

PVC OFNP LSZH OFNR

2. Customize Cable Color

Red Blue Grey Purple

3. Customize Cable Connector

D4 SMA905 VF45 MU

4. Customize Cable Length

5M 10M 50M 100M

5. OEM Label, Printing and Boot Color

NOTE: If you need customize others, welcome to contact [email protected]



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
