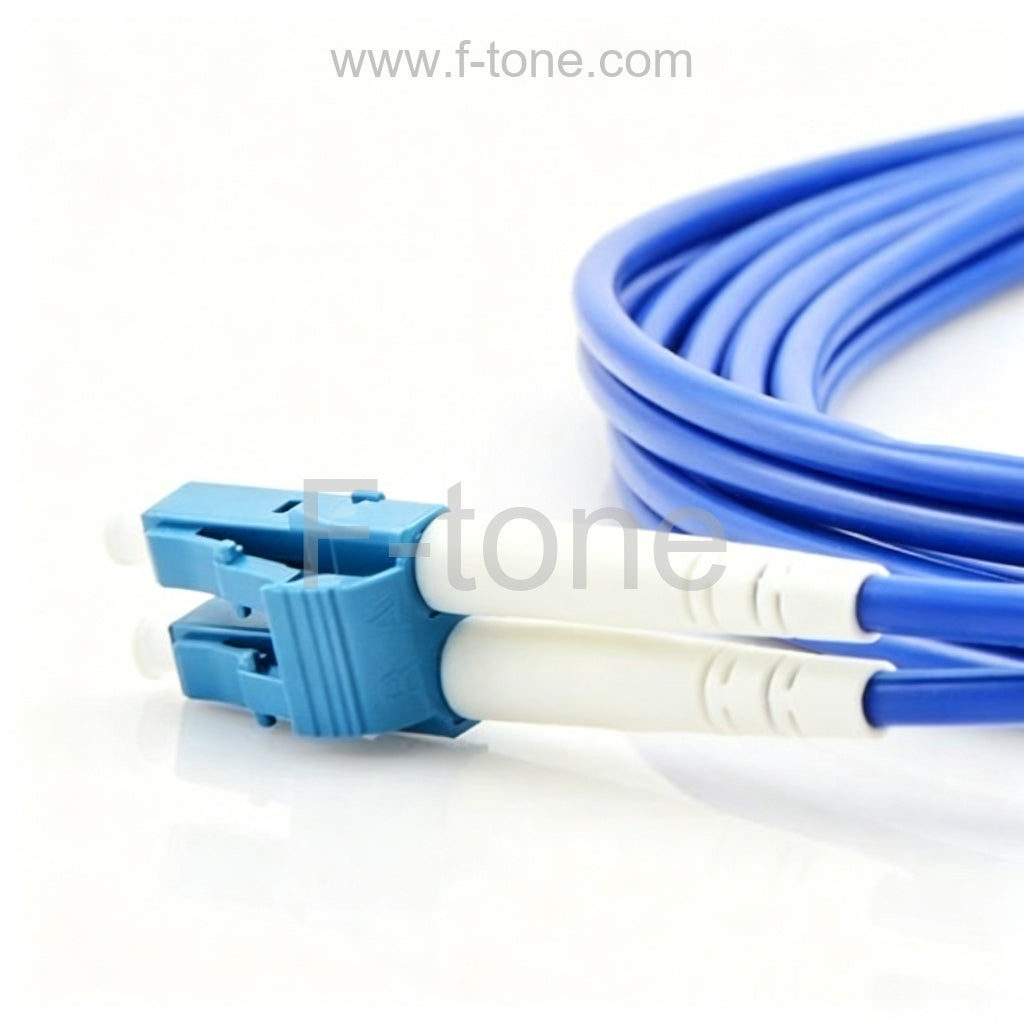

LC UPC to LC UPC Duplex PVC/LSZH/OFNP 9/125 Single Mode Fiber Patch Cable

LC UPC to LC UPC Duplex PVC/LSZH/OFNP 9/125 Single Mode Fiber Patch Cable

Просмотреть всю информацию

Part Number: SM-LCU-LCU-DX-FT-C

LC UPC to LC UPC Duplex PVC/LSZH/OFNP 9/125 Single Mode Fiber Patch Cable, Singlemode Fiber Patch Cable

The 9/125 m single mode fiber patch cable meets RoHS compliant, and all cables are 100%optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.

F-tone also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.

Connector LC to LC Jacket OD standard 2.0 (default)/0.9/3.0mm
Fiber Mode 9/125 m Jacket Color Yellow
Polish UPC to UPC Wavelength 1310/1550nm
Fiber Type Duplex Jacket Material PVC(default)/LSZH/OFNP
Insertion loss 0.3dB Interchangeability 0.2dB
Return loss 50dB Vibration 0.2dB
Operating temperature -40~75C Storage temperature -45~85C
Fiber Grade G652D Fiber Grade G657A1 can also be customized.

How to Correctly Choose Between PVC(OFNR), LSZH and OFNP

Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks, campuses and so on. Whether you choose PVC, LSZH or OFNP jacket depends on where you're going to run the cable.

How to Choose The Right Fiber Optic Cable Type

The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig/second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable, it is 4700 MHz.km while for OM3, it is 2000 MHz.km.


Designation Fiber Dia.( m) Type Fast Ethernet 100BASE-FX 1 Gigabit Ethernet 1000BASE-SX 1 Gigabit Ethernet 1000BASE-LX 10 Gigabit Ethernet 10GBASE 40 Gigabet Ethernet 40GBASE-SR4 100 Gigabet Ethernet 100GBASE-SR4
OM1 62.5/125 Multimode 2000 Meters 275 Meters 550 Meters(MCP cable required) 33 Meters Not supported Not supported
OM2 50/125 Multimode 2000 Meters 550 Meters 550 Meters(MCP cable required) 82 Meters Not supported Not supported
OM3 (Laser Optimized) 50/125 Multimode 2000 Meters 550 Meters 550 Meters 300 Meters 100 Meters 100 Meters
OM4 (Laser Optimized) 50/125 Multimode 2000 Meters 550 Meters 550 Meters 400 Meters 150 Meters 150 Meters
Singlemode 9/125 Singlemode 2000 Meters 5km at 1310nm 5km at 1310nm 10km at 1310nm

OEM and Packaging Services

Illustrations of customized items
1. Cable Color. Red, Purple, White, Black, Orange and Pink can be customized. As to customized colors, our MOQ is 1000 meters.
2. Double-Colored boot Combination. Red-Blue, Red-Black, Blue-White, White-Green, Yellow-Blue, Black-Blue etc.
3. Cable Printing. SM/MM, Cable O.D, Cable Jacket, Length, Parameters, Specifications can be printed on the cable.
4. Cable Tag. Flag tag and wrap-around tag for options, the tagged information can be customized.
5. Custom Logo. The customized logo can be printed on the packing bag as you required, any color, any size.
6. Custom Length. Any length can be customized as you required.
7. Custom Label. The paper lable stick on the packing bag can be made with your requred information.
8. Custom Package. The Brown carton can be printed with your logo.

If you need any further assistance in customized service, welcome to contact [email protected].


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
