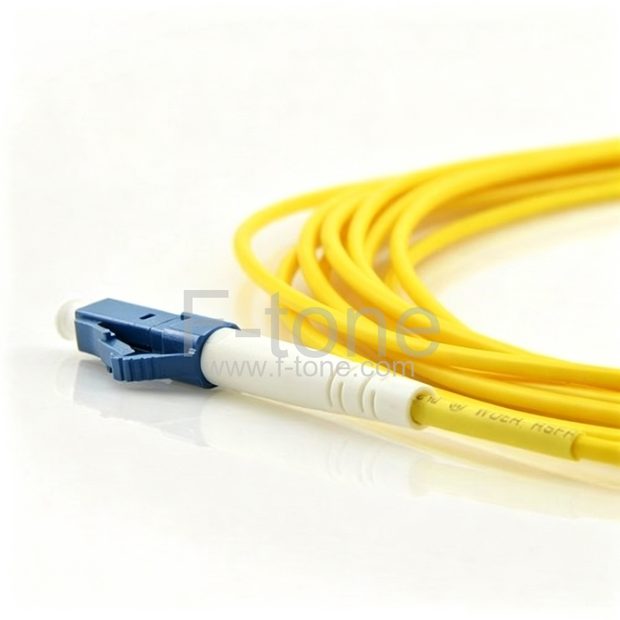

LC UPC to LC UPC Simplex SMF28 ULL Fiber Patch Cable 0.1dB Inerstion Loss

LC UPC to LC UPC Simplex SMF28 ULL Fiber Patch Cable 0.1dB Inerstion Loss

Просмотреть всю информацию

Part Number: SM-LCU-LCU-SX-FT-UUL

LC UPC to LC UPC 9/125μm Single Mode G.654.C UUL Fiber Optic Cable with 0.1dB IL loss

The G.654C UUL fiber exhibits much lower optical power loss under bend conditions while remaining compatible with conventional cabling, designed to reduce optical loss when the cable is bent. It can add the capability of maintaining optical performance and reduce breaks in light dispersion upon twisting, bending or pressure for longer-lasting bandwidth with easy installation.

This fiber optic cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.

Item Spotlights

  • PVC (Riser) Flame-retardant Jacket
  • Grade A Precision Zirconia Ferrule Connectors Ensure Low Loss
  • G.654C UUL Fiber
  • Optical Testing Ensures Network Performance
  • Compliant to TIA-604 (FOCIS)

Description

Connector Type LC UPC to LC UPC Fiber Grade G.654 C
Fiber Mode OS2 9/125μm Wavelength 1310/1550nm
Insertion Loss ≤0.3dB Return Loss ≥50dB
Min. Bend Radius
(Fiber Core)		 7.5mm Min. Bend Radius
(Fiber Cable)		 10/5D (Dynamic/Static)
Attenuation at 1310 nm 0.4 dB/km Attenuation at 1550 nm 0.25 dB/km
Fiber Count Simplex Cable Diameter 2.0mm
Cable Jacket PVC Polarity A (Tx) to B (Rx)
Operating Temperature -20~70°C Storage Temperature -40~80°C

Product Highlights

  • Carrier-grade Cable Ensures Transmission Quality
Superior cable assemblies reduce light loss during cable bending and easily meet your diverse cabling requirements.
  • 10/5D Min. Bend Radius

The G.654C fiber allows tighter cable bends for slack storage and routing.

  • Zirconia Ceramic Ferrule

The precision ferrules can reach up to 500 times insertion lifespan.

  • Max 100N Tensile Strength

The pull-resistant cable prevents cable breaking and prolongs the service life.

Custom and OEM

1. Customize Jacket Materials

PVC OFNP LSZH OFNR


2. Customize Cable Color

Red Blue Grey Purple


3. Customize Cable Connector

D4 SMA905 VF45 MU


4. Customize Cable Length

5M 10M 50M 100M


5. OEM Label, Printing and Boot Color


NOTE: If you need customize others, welcome to contact [email protected].


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
