Part Number: SM-SMA-SMA-DX-FT-C

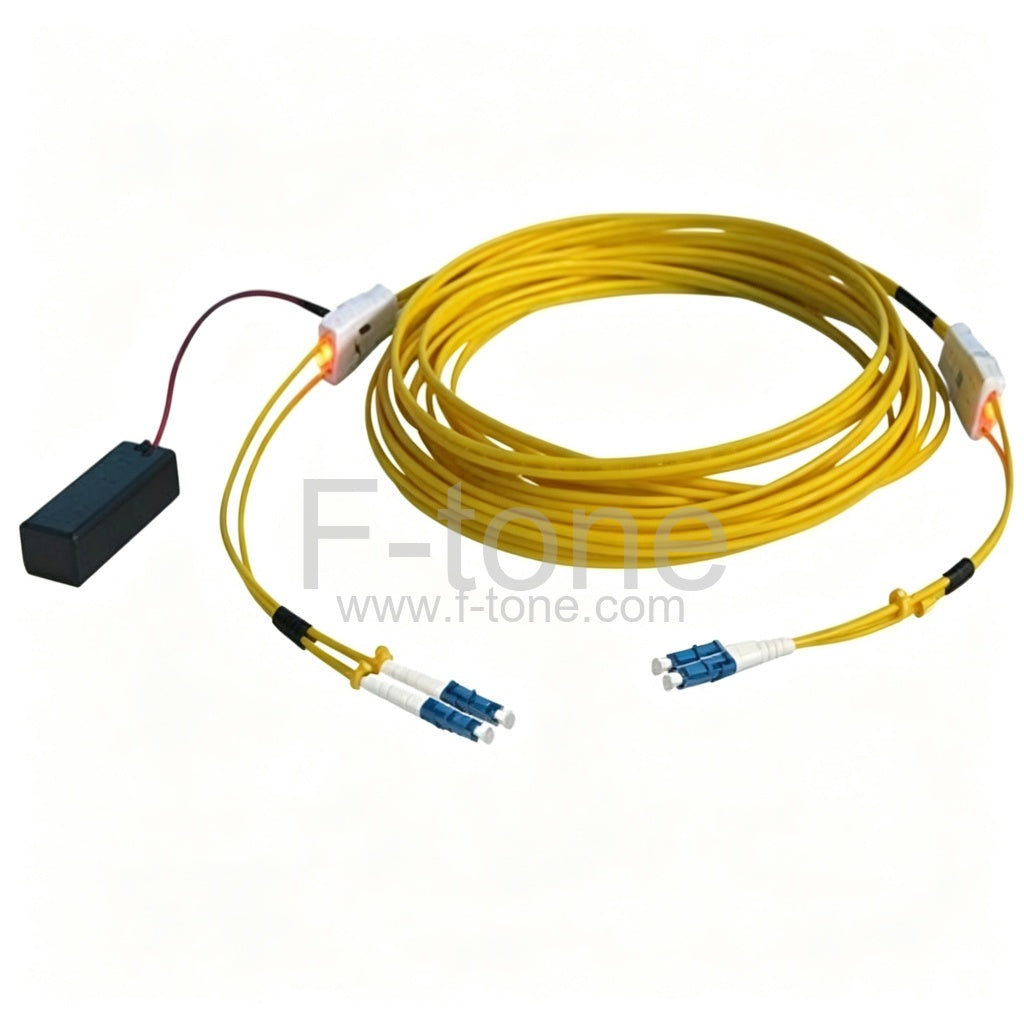

High Quality and Cost-effective SMA905-SMA905 Duplex 9/125 Single-mode Fiber Patch Cable
The 9/125um single-mode fiber patch cords with SMA905 connectors meet TIA and IEC compliant, and all cables are 100%optically tested for insertion loss to ensure high quality. It is widely used for the following areas:
Data Communication Laser Power DeliveryNear-IR SpectroscopyIndustrial and Military applicationAutomation and Programmable Logic Control system
F-tone also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.
Cable Details
| Fiber Mode: 9/125um Single-mode | Insertion loss: 0.3dB |
|---|---|
| Connector: SMA905 to SMA905 | Wavelength: 650nm |
| Numerical Aperture: 0.4-0.5NA | The Min bending radius: 10D |
| Out-Track: 2.0mm/3.0mm/2.5mm | (D: Optical Fiber Core Diameter) |
How to correctly choose between PVC, LSZH and OFNP
PVC Cable: PVC cable resistant to oxidation and degradation, is used for horizontal runs between the table.
It is also work for vertical runs if the building features a contained ventilation system running through the duct work.
LSZH Cable: LSZH cable has a special flame-retardant coating, and excellent fire safety characteristics of low smoke, low toxicity and low corrosion.
It is same to PVC cable for horizontal runs between the table.
OFNP Cable: OFNP cable is a space within the building created by building components, designed for the movement of environmental air, complies with the NFPA fire safety.
It is usually work for vertical runs between floors.
SMA905 Connector Structure
| 1.The difference between metal ferrule and zirconia ferrule: | |
|---|---|
| 2.Two types of metal ferrule (with or without groove): | |
| 3.SMA905 connector with extended tailstock: |
Notes:
1. The default ferrule is Metal Ferrule, the Zirconia Ferrule can be customized.
2. The default size standard of Inner Hole is 127um, other size standards can be customized.
Specifications
| OVERVIEW | |||||||||
| The Numerical Aperture Of the Quartz Fiber | 0.22-0.37 | ||||||||
| Fiber Diameter (mm) | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.65 | 0.8 | ||
| Minimum Bending Radius | 10D (D: Optical Fiber Core Diameter) | ||||||||
| Fiber Cor (Coating Layer) | 1:1.05/1:1.4 | ||||||||
| Numerical Aperture | 0.21-0.37 | ||||||||
| Transmission (%/m0) |
Transmission (0.20-0.4um) | 85-98 | |||||||
| Visible Light (0.4-0.7um) | 97-99 | ||||||||
| Near-Infrared (0.76-1.6um) | 90-99 | ||||||||
| Heliun-Neon (0.6328um) | 99 | ||||||||
| YAG (1.06um) | 98 | ||||||||
| Argon (0.5145um) | 98 | ||||||||
| Transmission Power | >130w (Fibre [email protected]) | ||||||||
Make To Order
| Connector Type | Inner Hole Size | Core Material | Concentricity | Roundness | Tailstock Of Connector | Bare Fiber Clamp | Cable Length |
|---|---|---|---|---|---|---|---|
| Metal ferrule (Default) Zirconia ferrule |
127μm (Default) Custom |
Stainless steel Cupronickel |
≤3.0μm | ≤2.0μm | Standard (Default) Lengthen (Custom) |
Without (Default) With |
1m~999m Others |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
