Part Number: SMUB-CSU-DX-1M-PVC

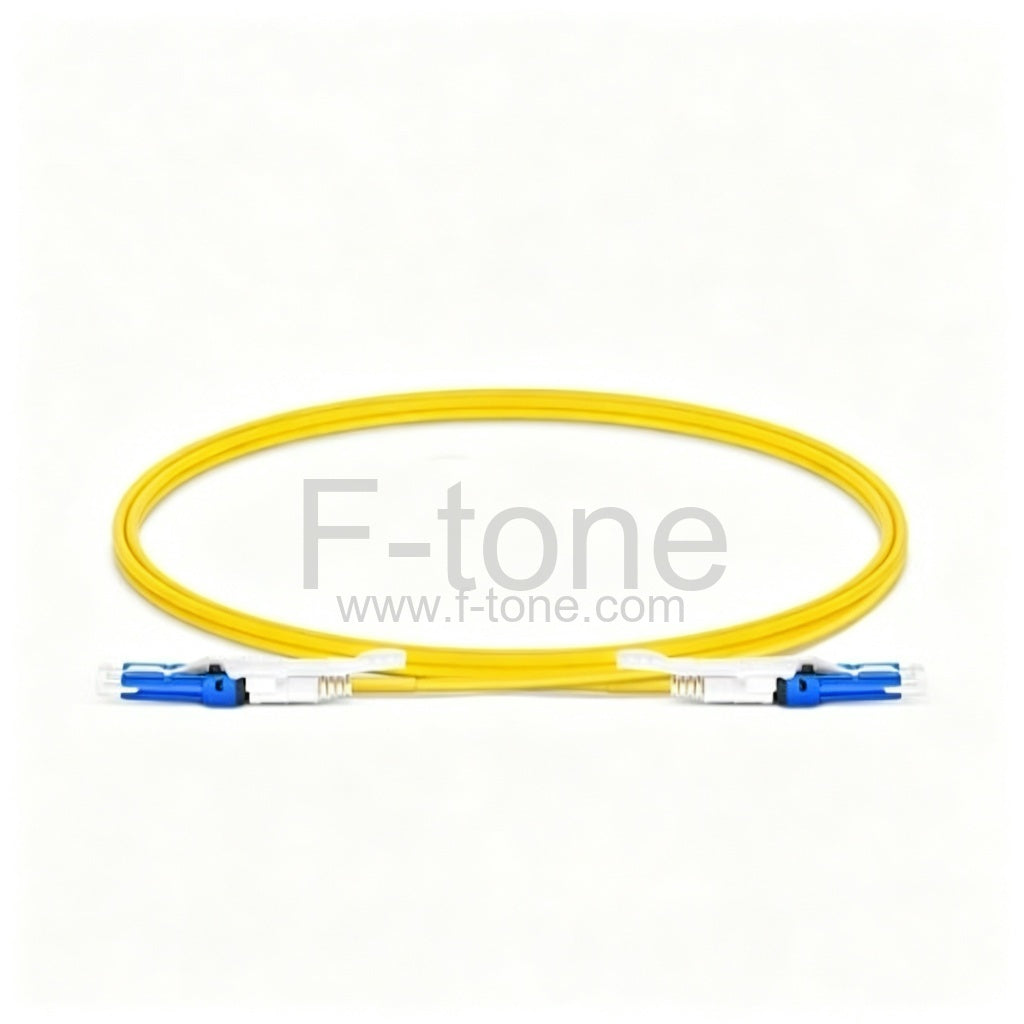

CS UPC to CS UPC Duplex OS2 SingleMode PVC (OFNR) 2.0mm Fiber Optic Patch Cable 1m (3ft) 200/400G Network Connection
Specifications
CS™ UPC to CS™ UPC Duplex 9/125μm Single Mode PVC Fiber Optic Patch Cable
Senko CS™ connector is designed for next generation 200/400G transceiver QSFP-DD and OSFP, meeting the requirement for CWDM4, FR4, LR4 and SR2.
The reduced size CS™ connector is not only capable of delivering low insertion and high return loss comparable to existing LC connectors, but it does so with a reduced footprint. Working with the QSFP-DD and OSFP pluggable form factors, the CS™ connector accentuates ease of fiber breakout.
Product Specification
| Connector Type | Senko CS™ to CS™ | Polish Type | UPC to UPC |
|---|---|---|---|
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| 400G Ethernet Distance | 2km with OSFP-400G-2FR4 | Glass Fiber | Corning Fiber |
| Insertion Loss | ≤0.2dB | Return Loss | ≥50dB |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) | Minimum Bend Radius | 10mm |
| Attenuation at 1310 nm | 0.4 dB/km | Attenuation at 1550 nm | 0.22 dB/km |
| Fiber Count | Duplex | Cable Diameter | 2.0mm |
| Cable Jacket | PVC | Polarity | A(Tx) to B(Rx) |
| Operating Temperature | -10~60°C | Storage Temperature | -20~70°C |
The smaller connector footprint of CS™ connectors enables two duplexes in a single QSFP-DD/OSFP transceiver, addressing a critical industry challenge of increasing port density for 400GbE optics.
This easy-to-take and well-protected fiber optical cable package has been labeled and marked by F-tone as default. Customized label or package solution are available on request.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
