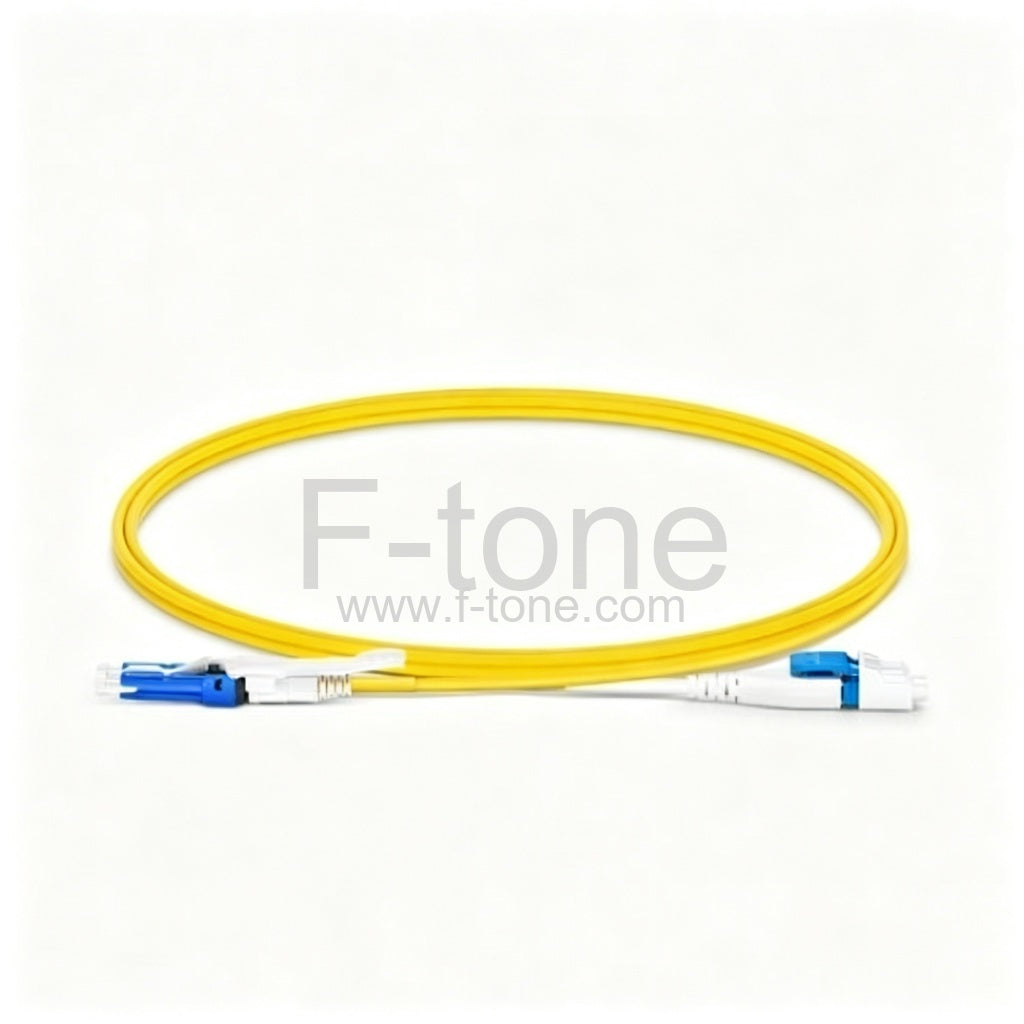

CS UPC to LC UPC Flat Clip Uniboot Duplex OS2 SingleMode PVC (OFNR) 2.0mm Fiber Optic Patch Cable 1m (3ft)

CS UPC to LC UPC Flat Clip Uniboot Duplex OS2 SingleMode PVC (OFNR) 2.0mm Fiber Optic Patch Cable 1m (3ft)

Просмотреть всю информацию

Part Number: SMUB-CSU-LCU-DX-1M-PVC

CS UPC to LC UPC Flat Clip Uniboot Duplex OS2 SingleMode PVC (OFNR) 2.0mm Fiber Optic Patch Cable 1m (3ft) 200/400G Network Connection

Specifications

CS™ UPC to LC UPC Uniboot Duplex 9/125μm Single Mode PVC Fiber Optic Patch Cable


Senko CS™ connector is designed for next generation 200/400G transceiver QSFP-DD and OSFP, meeting the requirement for CWDM4, FR4, LR4 and SR2, which is optimized as a robust higher density replacement over the duplex LC connector in both the rack and structured cabling environments.


The CS™-LC uniboot duplex single mode fiber optic patch cables are available to interconnect or cross connect fiber networks. It is also backward compatible with 40Gb and 100Gb networks, so you can future-proof your current application for an eventual upgrade to 400Gb.

Product Specification

Connector Type Senko CS™ to LC Flat Clip Polish Type UPC to UPC
Fiber Mode OS2 9/125μm Wavelength 1310/1550nm
400G Ethernet Distance 2km with OSFP-400G-2FR4 Glass Fiber Corning Fiber
Insertion Loss CS™≤0.2dB, LC≤0.2dB Return Loss ≥50dB
Fiber Grade G.657.A1 (Compatible with G.652.D) Minimum Bend Radius 10mm
Attenuation at 1310 nm 0.4 dB/km Attenuation at 1550 nm 0.22 dB/km
Fiber Count Duplex Cable Diameter 2.0mm
Cable Jacket PVC Polarity A(Tx) to B(Rx)
Operating Temperature -10~60°C Storage Temperature -20~70°C

Note: CS™ is a trademark of Senko Advanced Components, Inc. 2016-2020 © All Rights Reserved.

Quality Certifications

Network Connectivity

Direct Connection for 400G QSFP-DD/OSFP to 2x QSFP28 CWDM4

Product Highlights

Upgrading to 400G Links with CS™ to LC Fiber Patch Cables

The CS™ to LC uniboot fiber optic patch cables allow you to upgrade the network to 400G links without making changes to the existing fiber cable infrastructure.

For Next Generation Beyond 100G High Density

Reach Higher Density with CS™ Connector

40% size reduction compared to LC duplex.

Double the density in patch panel compared to LC.

High Performance SENKO CS™ Connector


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
