50mW Visual Fault Locator Fiber Optic Laser Tester ST-3105A (17-25km)

Part Number: ST-3105A-50

ST-3105A 50mW New Visual Fault Locator Fiber Optic Laser Tester 17-25km

This kind of visual fault locator is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in an optical network during and after installation.
It can send visible red laser light though fiber optic cables, then the breaks or faults in the fiber will refract the light, creating a bright glow around the faulty area. Its pen shape made it very easy to carry, and its Cu-alloy material shell made it sturdy and durable, 2.5mm universal interface make it more attractive. This series also have various inspection distances.

Note: Standard connector is 2.5mm UPP or 2.5mm UPP + FC.
If you need to connect with FC, ST or SC port, please choose the 2.5mm UPP adapter or 2.5mm UPP + FC.
If you need to connect with LC port, you can buy a 1.25mm UPP adapter or a FC male to LC female fiber adapter.

Features

• Easy to check fiber faults with visual red laser light
• FC, SC, ST General interface
• Sturdy and durable shell
• Constant output power
• Long inspection distance
• Operates in either CW (Continuous wave) or pulse (Both modes are available)
• Pen pattern design, convenient for use and carry
• Dust-proof design keeps fiber connectors clean
• Compact in size, light in weight, red laser output, both SM and MM available

Warranty and Shipping

• 1 year warranty is offered for this product. So you can buy it from us with confidence.
• It is always in stock which usually be shipped out in a short time, and a large quantity of it can be provided in 2-4 business days.
• Our primary delivery method is FedEx overnight, it is very fast, and DHL, EMS, UPS are also available on request. That is to say. We can ship to all the countries that FedEx, DHL, EMS, UPS can arrive. You can also choose to let us give the goods to your own forwarder.

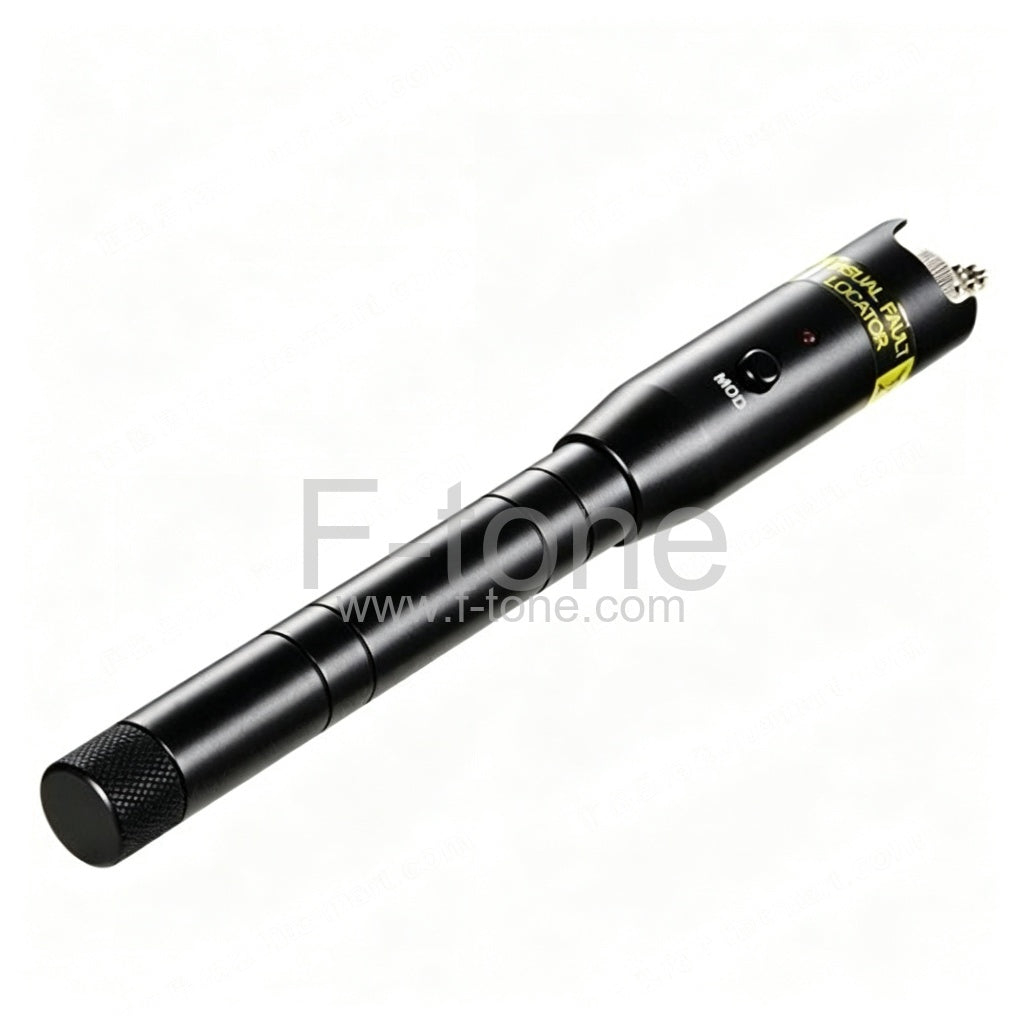

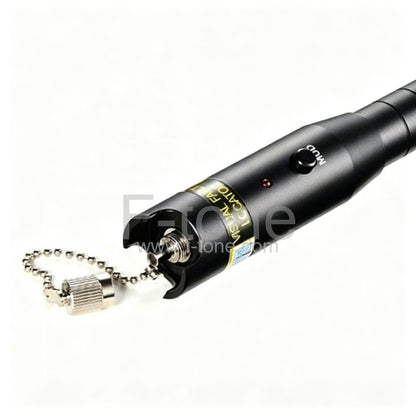

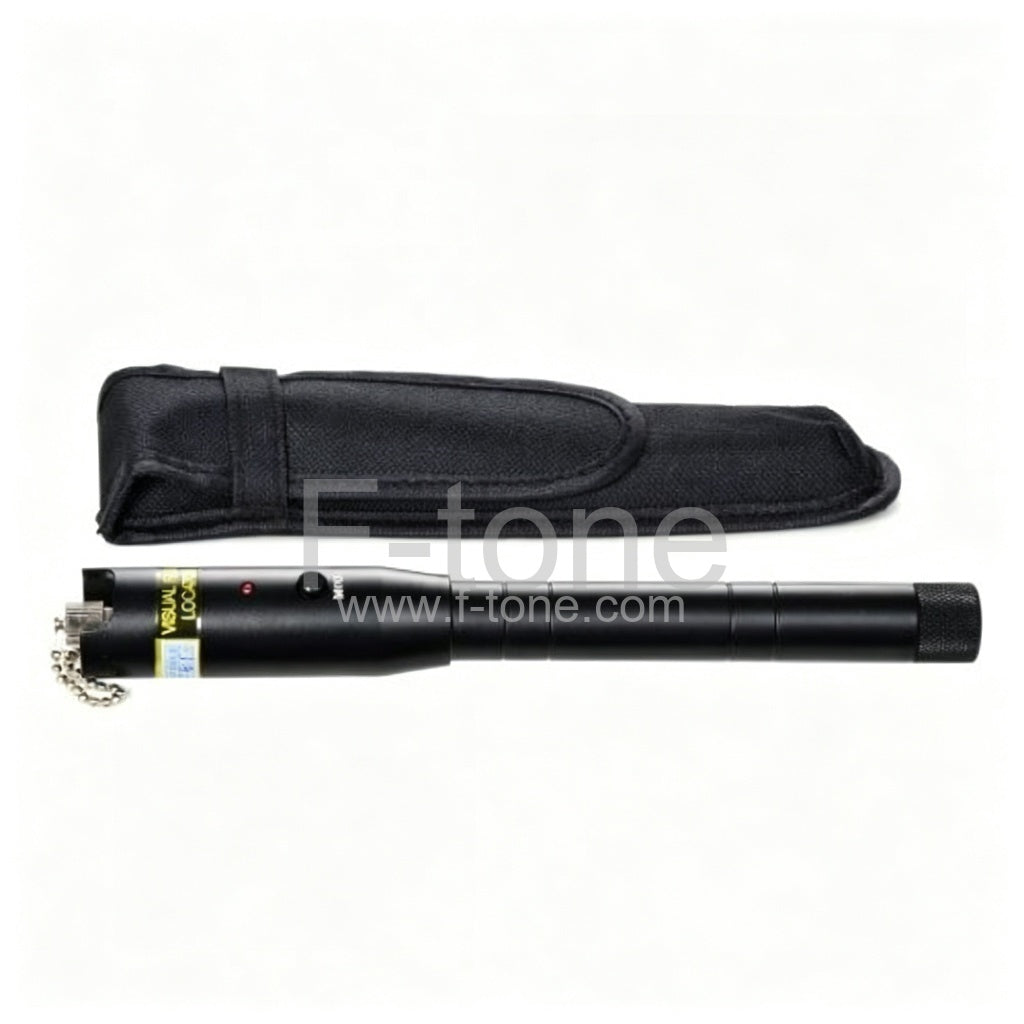

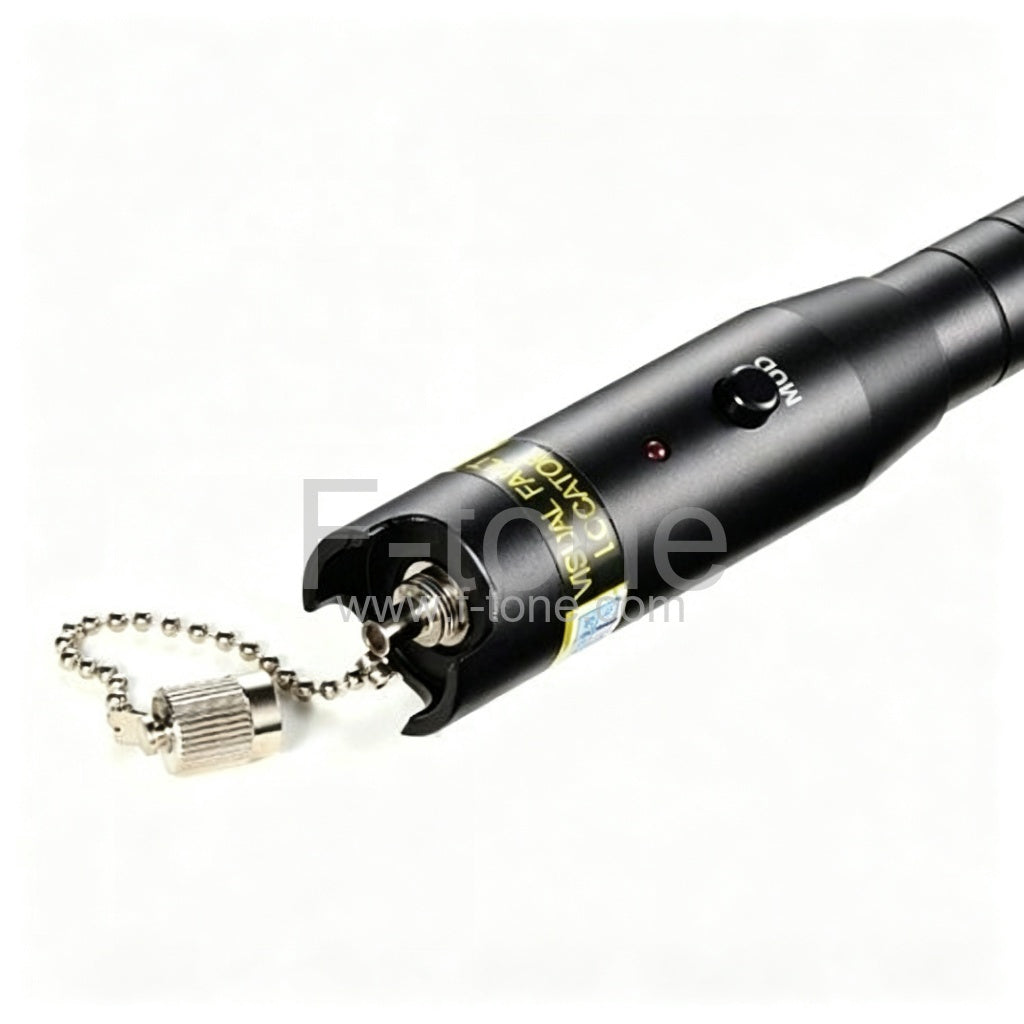

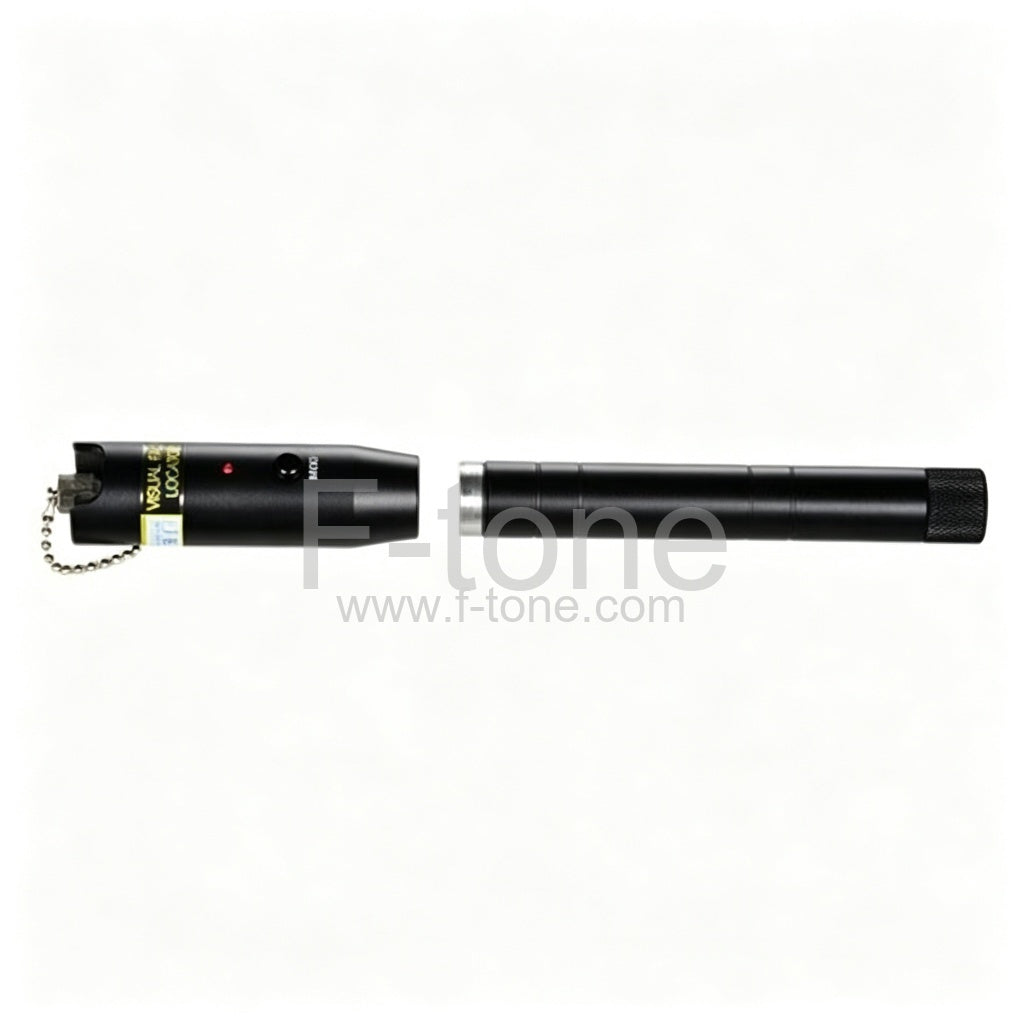

Product Picture

Specifications

• Wavelength: 650±10nm
• Fiber mode: SM, MM
• Output power: 50mW
• Inspection distance: 25-30Km
• Working time of batteries: About 12 hours
• Operating Temperature: 10~+60℃
• Storage Temperature: -40~+85℃
• Material of shell: Cu-alloy
• Net Weight: 170g

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
