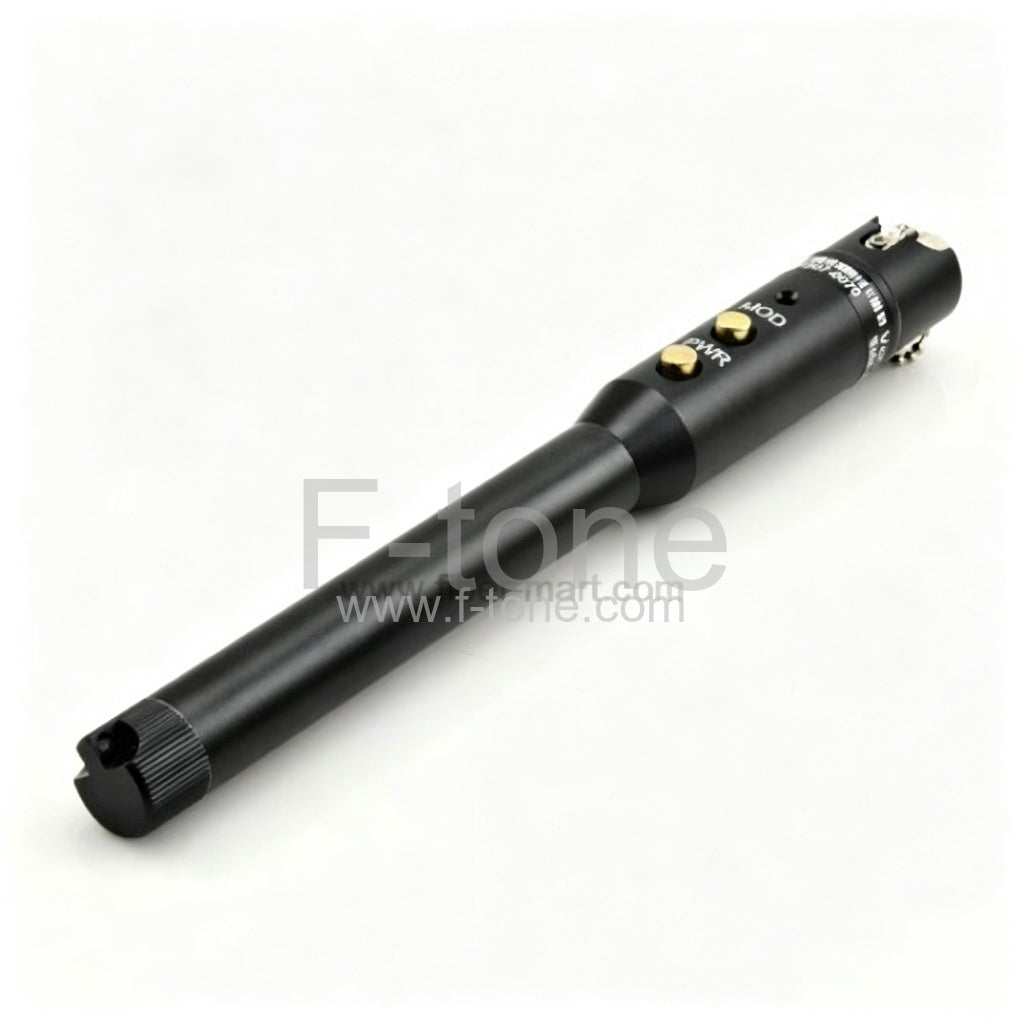

ST-3105X Visual Fault Locator with 2.5mm Universal Adapter(10km)

ST-3105X Visual Fault Locator with 2.5mm Universal Adapter(10km)

Просмотреть всю информацию

Part Number: ST-3105X-2

ST-3105 Visual Fault Locator with 2.5mm Universal Adapter(10km)

Description

ST-3105 Visual Fault Locator is used for the measurement in single-mode or multi-mode fibers. It features a rugged design, a universal connector and an accurate measurement. The ST-3105 visual fault locator easily identifies the cutting, micro-bending of the optic fiber, passes through the jacket fiber and performs an end-to-end fiber identification.
It is an ideal tool for the examination of all kinds of patch cords and ribbon or bunched pigtails in the installation and maintenance of fiber optic networks. The inspection distance of this ST-3105-2 visual fault locator is 10km. And for its operating temperature is -10~+60 ℃ and storage temperature to be -25~+70℃, it means that it can be used and stored in a more hostile environment than common visual fault locators.
Note: Standard connector is 2.5mm UPP or 2.5mm UPP + FC.
If you need to connect with FC, ST or SC port, please choose the 2.5mm UPP adapter or 2.5mm UPP + FC.
If you need to connect with LC port, you can buy a 1.25mm UPP adapter or a FC male to LC female fiber adapter.

Features

Detects breaks, micro-bends even through jacketed fibers
End-to-end visual fiber identification
Locates faults up to 5km along the fiber.
Mechanical fusion splice optimization
Compact size and light weight, suitable for field testing

Application

Maintenance in Telecom
Maintenance CATV
Fiber Optic Lab Testing
Other Fiber Optic Measurements

Order Information

MODEL INCLUDES

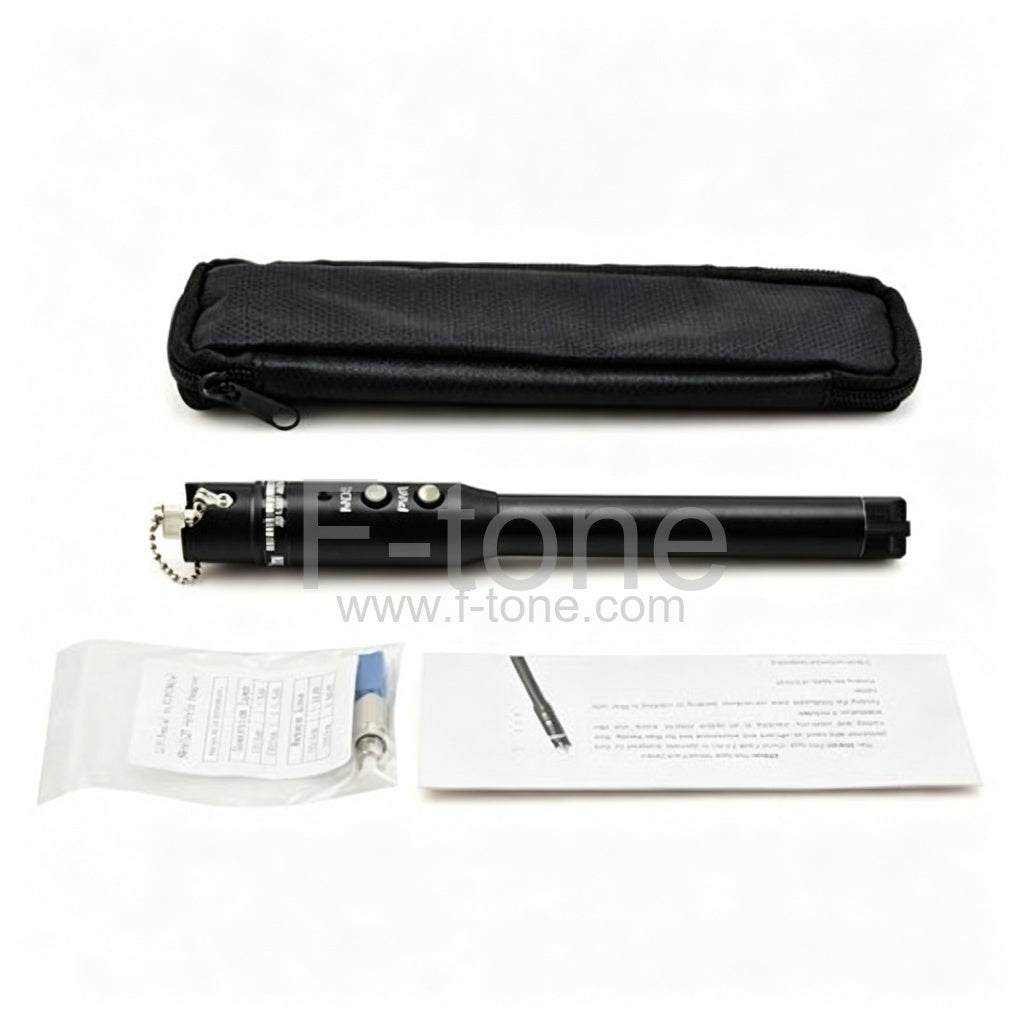

ST-3105 ST-3105 Visual Fault Locator, User Manual, Cotton swabs and Protective Holster.
  • View Details
  • http://127.0.0.1:8080/http://www.F-tone.com

Specification

Type ST-3105
Wavelengths(nm) 650±10nm
Fiber Model SM,MM
Spectral Width(nm) 10km
Emission CW, 2Hz can be optional

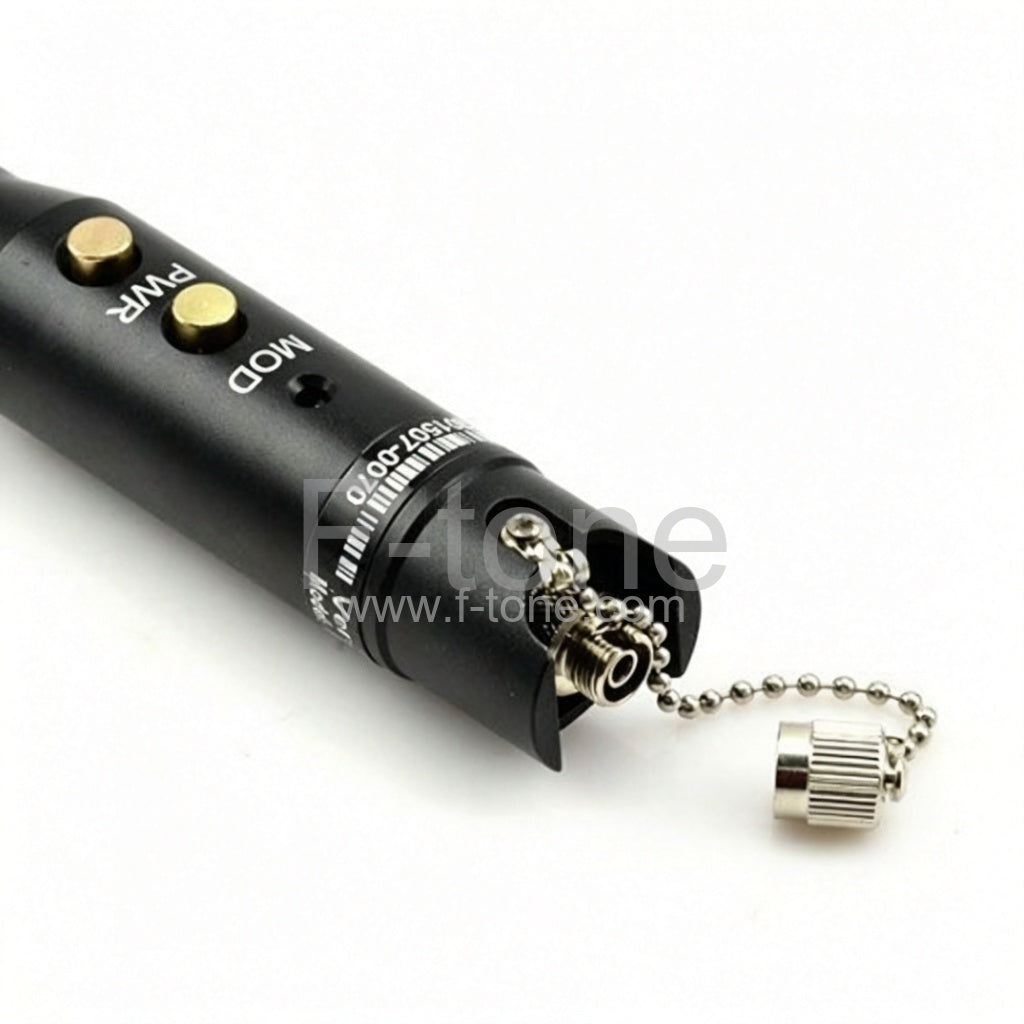

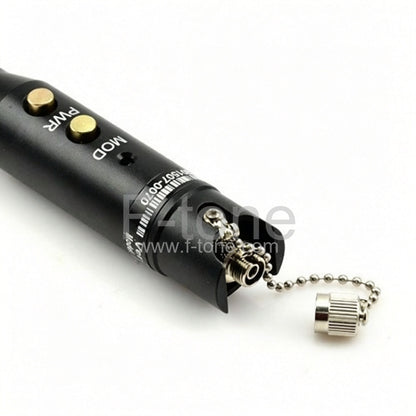

Optical Connector FC/Universal 2.5mm adaptor
Power Supply 2pcs AA alkaline batteries
BatteryOperating Time 30 hours
Operating Temperature(℃) -10~+60
Storage Temperature(℃) -25~+70
Dimension(mm) 100 x 50 x 25




This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
