Part Number: ST-3111-8
ST-3111-8 Fiber Optical Light Source (850/1300/1310/1490/1550nm)
Description
ST-3111 optical light source is a handheld optical light source, newly released in 2007. It can provide 1 to 6 wavelengths output to satisfy specific requirements including the 650nm visible light source and the 1310/1550nm wavelengths for single mode fiber or the 850/1300nm wavelengths for multimode fiber, as well as other wavelengths according to customer's needs. Together with the ST-3211 optical power meter, it is a perfect solution for fiber optic network applications.
Note: Together with 2.5mm UPP adapter, FC, SC, ST are all interchangeable.
SC adapter means FC male to SC female fiber adapter.
ST adapter means FC male to ST female fiber adapter.
LC adapter means FC male to LC female fiber adapter.
Features
Provides 1~6 wavelengths output which can be optional according to customers' needs
CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz modulation output at other wavelengths.
High stability of the output power
Stable output wavelength
Backlight LCD display supports night operation
Low battery power indication
Applications
Maintenance in Telecom
Maintenance CATV
Test Lab of optical fibers
Other Fiber Optic Measurements
Recommendation
ST-3111 Handheld Light Source is designed for optimal use with ST-3211 Optical Power Meter for measuring optical loss on both single mode and multimode fiber cable.
Standard Packages
| Model | Includes |
|---|---|
| All ST-3111 Models | ST-3111 Optical Light Source, AC Adapter, Instruction Manual, Cotton Tampon and Soft Carrying Case. |
Kind Note
This price for ST-311-8 light source with 850/1300/1310/1490/1550nm.
F-tone is your reliable supplier of optical light source, and all of it have been 100% tested before delivery. If you need this fiber optic light source ST-3111-8 with 850/1300/1310/1490/1550nm. at a large quantity or have any problems or special requirement, please feel free to contact us. We will try our best to provide you the best service.
| Type | ST-3111 |
|---|---|
| Wavelengths(nm) | Provides 1~6 Wavelengths (650/850/1300/1310/1490/1550nm) according to needs. |
| Emitter Type | FP-LD,LED |
| Typical Ouput Power(dBm) | 0@650nm /-7 @1310nm,1550nm, -20dBm for LED |
| Spectral Width(nm) | ≤10 |
| 0utput Stability | ±0.05dB/15mins; ±0.1dB/8hours |
| Modulation Frequencies | CW.2Hz@650nm /CW, 270Hz, 1KHz, 2KHz@1310nm, 1550nm |

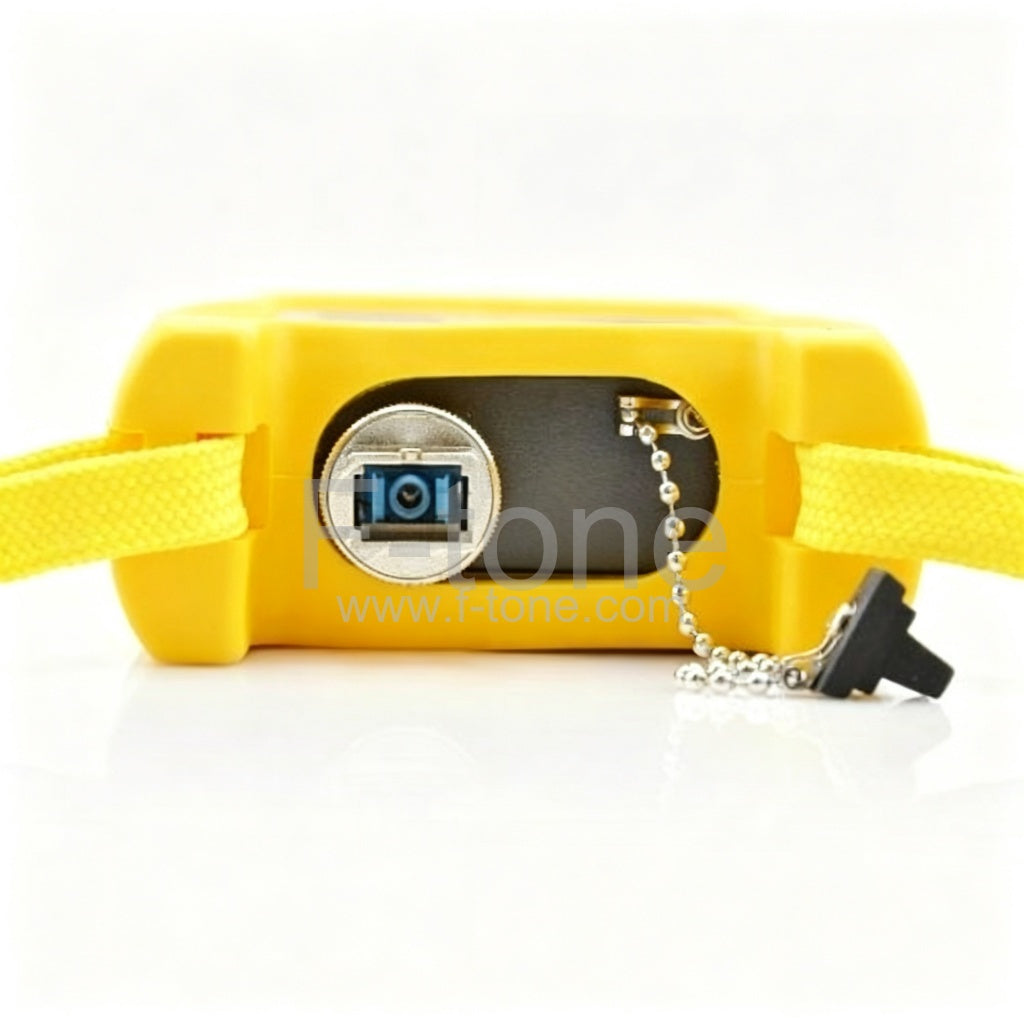

| Optical Connector | FC/PC(Other type adapters can be required) |
| Power Supply | Alkaline Battery(3 AA 1.5V batteries); AC Adaptor(9V) |
| Battery Operating Time(hour) | 45 |
| Operating Temperature(°C) | -10~+60 |
| Storage Temperature(°C) | -25~+70 |
| Dimension(mm) | 190X100X50 |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
