ST-3224 MPO Optical Power Meter

ST-3224 MPO Optical Power Meter

Просмотреть всю информацию

Part Number: ST-3224-MPO

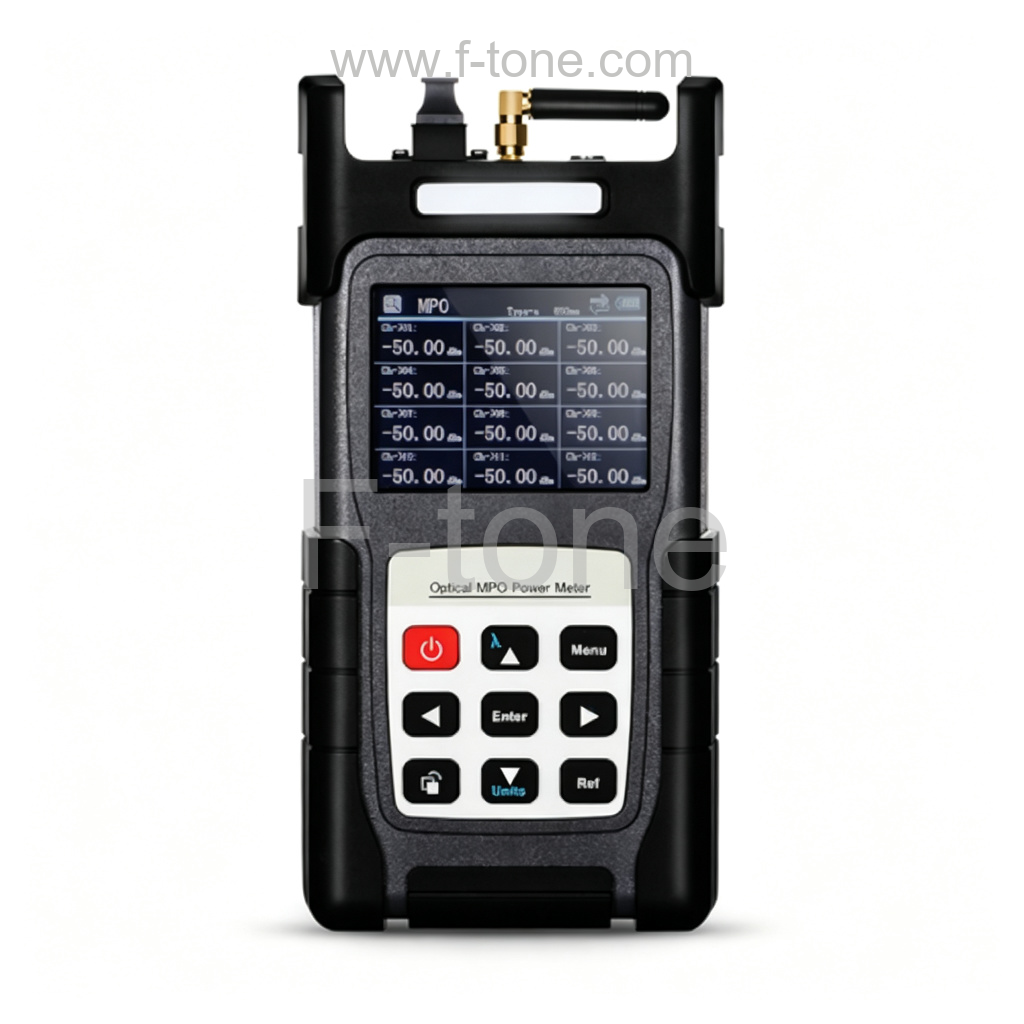

ST-3224 MPO Optical Power Meter

ST-3224 MPO Optical Power Meter is special for testing MPO fiber. The product can test the insertion loss of MPO fibers and polarity with only one key, and also supports data storage, threshold analysis, data export and other applications. Compared with traditional instruments, the testing efficiency of ST-3224 is more than 10 times. It is the best choice for field application of MPO room test, calibration of production line, and determination of polarity.
Wavelength Range 850~1700nm Detector InGaAs
Calibration Wavelength 850/1300nm or 1310/1550nm Optical Power Meter Range -50~+3 dBm
Insertion Loss Accuracy <0.2s/channel Resolution 0.01dB
Linearity ±0.2dB (-50~+5dBm) System Control USB
Interface Type SM/MM MPO/PC 12/24 fibers female Continuons Working Hours >10h
Working Temperature -5~+40°C Storage Temperature -5~+40°C
Dimensions 220x110x70mm Weight 850g

Product Highlights

MPO Optical Power Meter
  • Automatic scanning and testing all fibers in MPO connectors.
  • Built-in polarity identification support testing polarity of MPO cables.
  • Troubleshoot a single fiber within an MPO trunk and provide result.
  • Shatter-Resistant Sleeve

    Protect the power meter from falling, shocking and wearing.

  • Scientific Button Design

    Easily achieve multi-function only by a single button.

  • On-Board MPO Connector

    Eliminates the use of costly fan-out cords to test MPO fibers.

High Precision of Colored LCD display

Automatically test and display of all fibers in MPO connectors

Store Up to 100 Records of Test Results

Datas can be uploaded to a PC through a USB interface

On the Importance of Real Test

Support both multimode and single mode MPO trunk fiber test


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
