ST-950 Ribbon Fiber Fusion Splicer Kit

ST-950 Ribbon Fiber Fusion Splicer Kit

Просмотреть всю информацию

Part Number: ST-950RFS

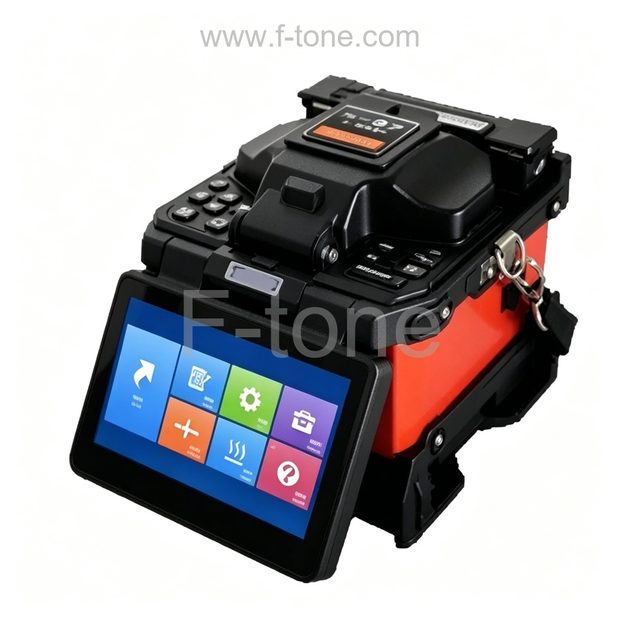

ST-950 Ribbon Fiber Fusion Splicer Kit, Designed for Ribbon Fiber Splicing

FEATURES
※ Applicable to 2-12 ribbon fiber splicing
※ Accurate alignment, world standard fusion loss
※ 20s splicing time, heating 1-2/4-12 fiber ribbon 26s/40s
※ Applicable to different types fibers (SM/MM/DS/NZDS)
※ Ruggedized body, waterproof, anti-dust, anti-shock
※ Pluggable Li-battery, support separate charging
※ Easy to maintenance, easy to replace the electrodes
※ USB port for software upgrading, records exporting
※ Support 4000/100 groups fusion records/fusion images
※ Comply with CE/Rohs international standard



Specifications

Alignment method Clad to clad
Applicable fiber SM(G.652)，MM(G.651)，DS(G.653)，NZDS(G.655)
Fiber cores quantity Single core，2-12 cores
Coating diameter 250～400µm
Typical splice loss SM: 0.05dB；MM: 0.02dB；DS: 0.08dB；NZDS: 0.08dB
Return loss ＞60dB
Splicing program 40 groups
Operation mode Manual/ Automatic
Auto- heating Available
Typical splice time 20 seconds
Typical heating time 1-2 cores 26 seconds，4-12 cores 40 seconds
Fiber magnification 25X
Viewing display Dual high sensitivity camera, 5 inch 800*480 LCD Monitor
Data storage 4000 groups data records and 100 group images
Loss evaluation Available
Tension test 1.8～2.2N
Interface GUI menu interface, easy for operation
Battery capacity 5200mAh Li-battery, 150 cycles splicing and heating
Power supply Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
Electrode life More than 3000 ARC discharges, easy to replace
Terminals USB 2.0 port, for software upgrading, records exporting
Operating condition Altitude:0-5000m,Humidity:0-95%,Temperature:-10℃～+50℃;Wind:max 15m/s：MAX15m/s
Dimension/Weight 155mm (L)×144mm (W)×155mm (H) /2.3kg (incuding battery)


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
