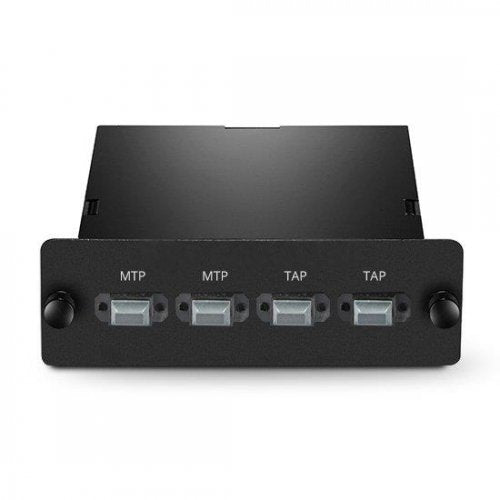

4x MTP Male, 50/50 Split Ratio, 24 Fibers, OM4 100GBASE SR10 TAP Cassette

4x MTP Male, 50/50 Split Ratio, 24 Fibers, OM4 100GBASE SR10 TAP Cassette

Просмотреть всю информацию

Part Number: TAP-4MTM24-55100GM4

4x MTP Male, 50/50 Split Ratio, 12 Fibers, OM4 100GBASE SR4 TAP Cassette

Traffic Access Point (TAP) is a passive monitoring device that passes traffic from the live network to the monitoring devices and provides a demarcation between the live network and monitoring infrastructure. It is designed for use to effectively monitor network traffic whilst optimising performance, are tools that provide users with an understanding of network flow patterns by splitting traffic for monitoring and security without interrupting network traffic.

Product Details

Live Ports Live Ports TAP Ports 2
Split Ratio 50/50 Termination Type Front
Front Connectivity US Conec MTP®-12 Male (Up to down) Rear Connectivity None
Insertion Loss ≤0.35dB Return Loss ≥20dB
Fiber Length 1.00±0.10m Glass Fiber Corning ClearCurve® Multimode
Operating Temperature -10°C to 60°C Dimensions (HxWxD) 1.38''x4.29''x4.64'' (35x109x118mm)
Fiber Type OM4 50/125μm Application Data Center LAN/SAN

Product Highlights

Real-time Monitoring Networks without Disruption

Designed to allow traffic to be monitored for security or network performance, the TAP provides a window into your data for security or surveillance, also makes it possible to look at data packets and advise the network administrator on how the network is performing in real time.

Passive Optical TAPs for Traffic Visibility

Completely passive, no electrical power needed

Permanent inline access to network links

Ideal for security applications, network monitoring

Working Principle and Line Sequence Inside the Cassette

The optical TAPs permit monitoring of signals within the communications channel by splitting off a fraction of the signal power towards a monitoring device. These modules contain optical splitters, dividing the incoming optical signals into two channels.

Fiber TAP Port Relationship

MTP Live and TAP ports providing permanent inline access to network links.

Fiber Splitter Inside

Fiber optic splitters inside the cassette divide the incoming optical signals into two outputs, for live link traffic and monitoring.




This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
