AVAGO HFBR-1521ETZ Compatible Domestic Alternative Optical Module
product presentation

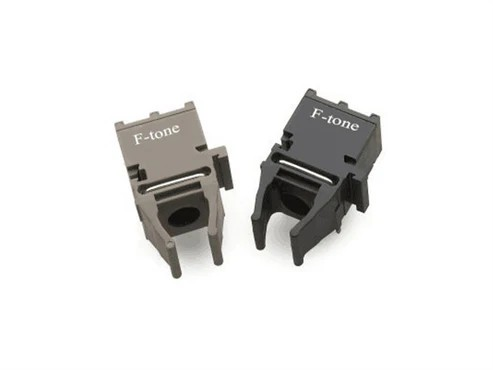

The FT-1521ETZ/2521ETZ series fiber optic transceivers are designed for use with 650nm plastic optical fibers (POF). They provide high-performance and cost-effective fiber optic communication links for applications in industrial, power generation, medical, transportation, and gaming sectors. When the FT-1521ETZ is driven by a 60mA current, it achieves a minimum typical transmission distance of 80 meters.
The FT-1521ETZ/2521ETZ series is fully compatible with AVAGO’s HFBR-1521ETZ/2521ETZ series products. It supports industry-standard plastic optical fiber interfaces and features a horizontal configuration. This series is compatible with 1mm-diameter plastic optical fibers and 200μm-diameter HCS (Hard-Clad Silica) fibers.
The FT-1521ETZ is a transmitter, encapsulated with a high-power LED chip with a peak wavelength of 650nm. When paired with 1mm-core-diameter plastic optical fibers and driven by a 60mA current, its typical output optical power is -5dBm. The FT-2521ETZ is a receiver, consisting of a high-gain transimpedance amplifier (TIA) integrated with a photodiode. Its output stage adopts an open-drain configuration, supporting a maximum output voltage of 18V. To enhance the stability of the receiver’s output pulse width, the receiver chip is designed with an automatic pulse width calibration circuit, ensuring pulse width distortion is within ±20ns.
Product characteristics
● Data transfer rate: DC-5 MBd
● Typical transmission distance: 80 meters
● The output waveform and pulse width is stable
● Meets industrial-grade temperature range: -40℃ to 85℃
● Compliance with the RoHS criteria
Product application
● Factory automation
● Lan
● Audio and video applications / game applications
● Industrial network and fieldbus
Overall dimensions drawing (FT-1521ETZ/2521ETZ)
List of product models
|
Product model |
Description |
|
FT-1521ETZ |
Transmitter |
|
FT-2521ETZ |
Receive devices |
