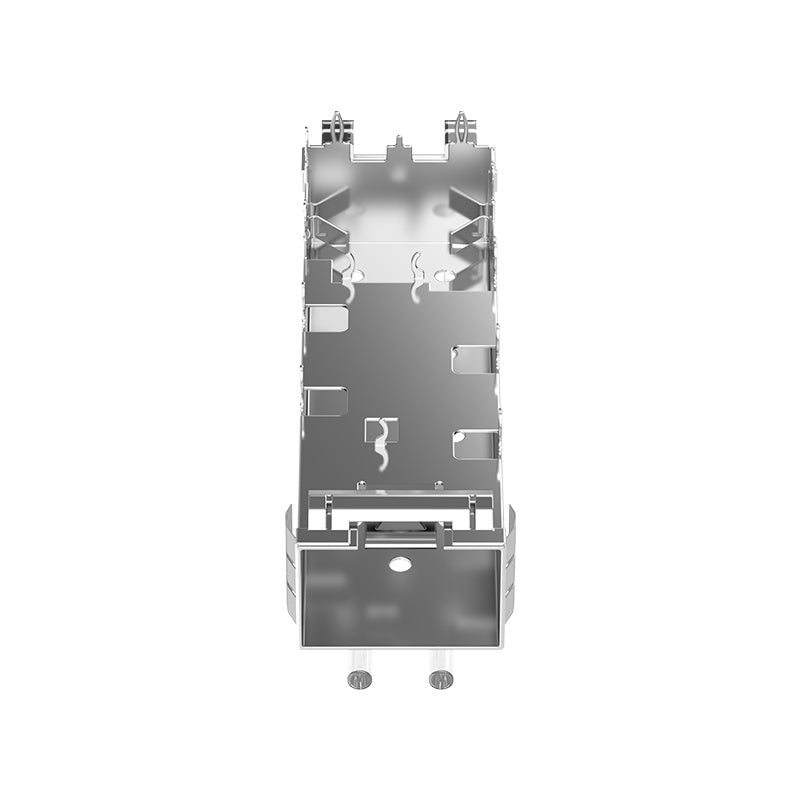

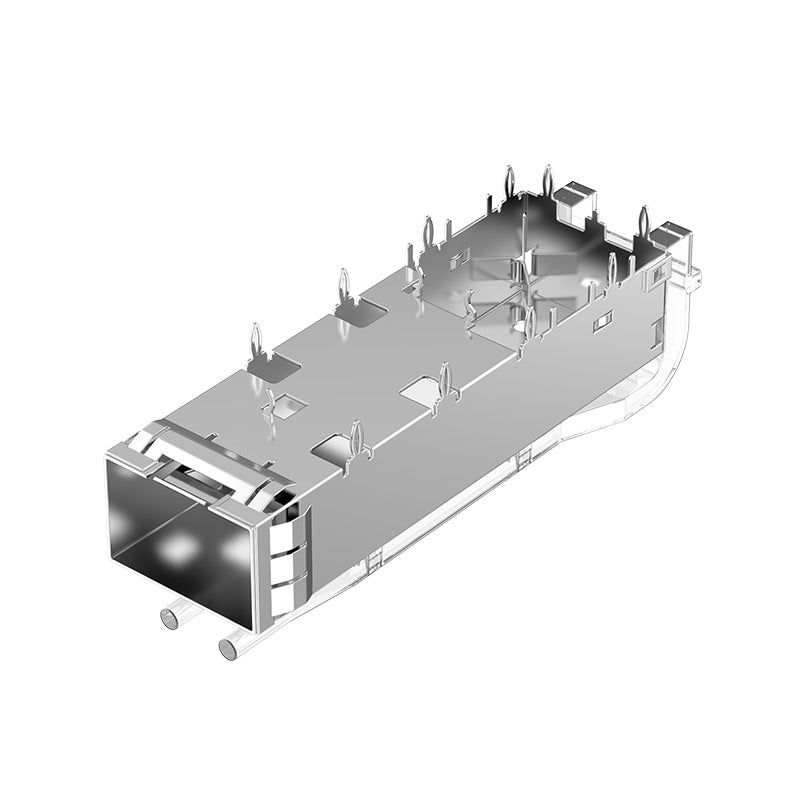

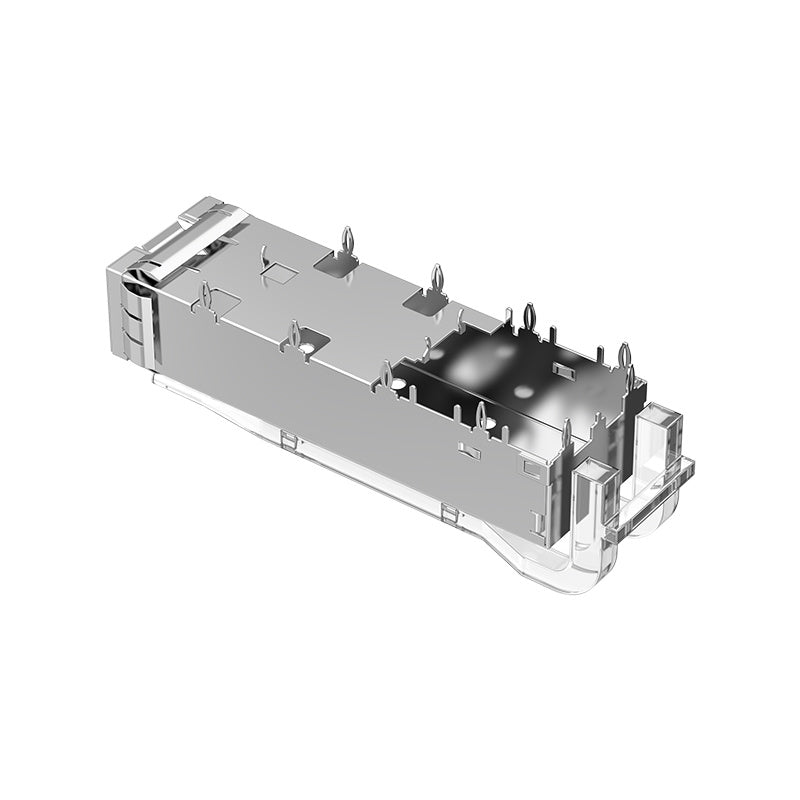

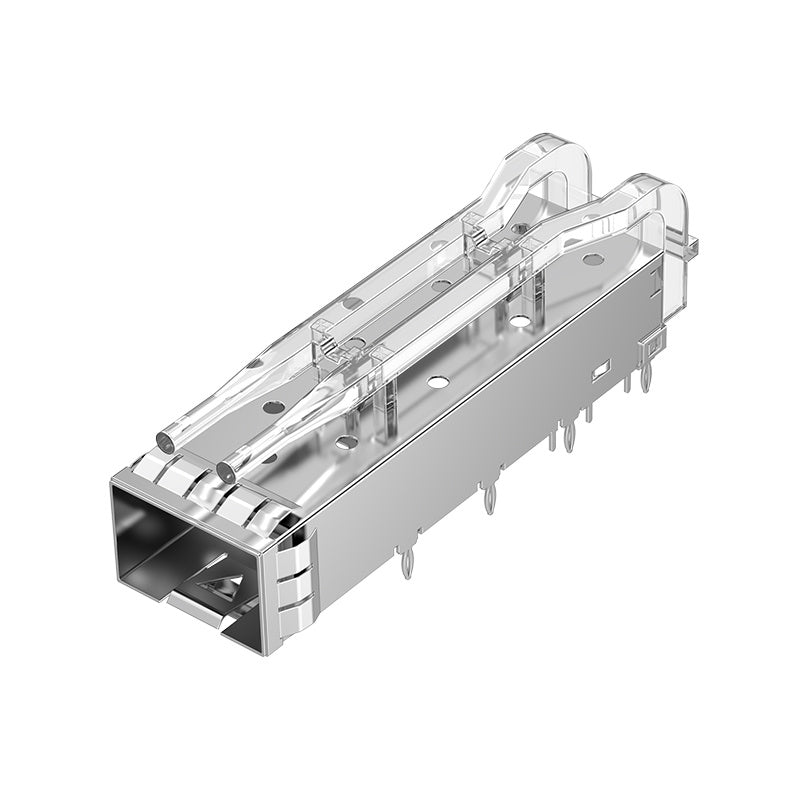

F-tone FT11BC02100 SFP 1x1 Cage Press-Fit With Lightpipe

The F-tone FT11BC02100 is an industrial-grade, extreme-environment 1x1 SFP (Small Form-factor Pluggable) Cage Assembly, engineered to provide robust mechanical housing and essential electromagnetic shielding for pluggable optical and copper transceivers. Designed for 1-port physical layer (PHY) implementations, this right-angle receptacle is a critical structural component for routing and switching platforms deployed in harsh or highly congested hardware environments.

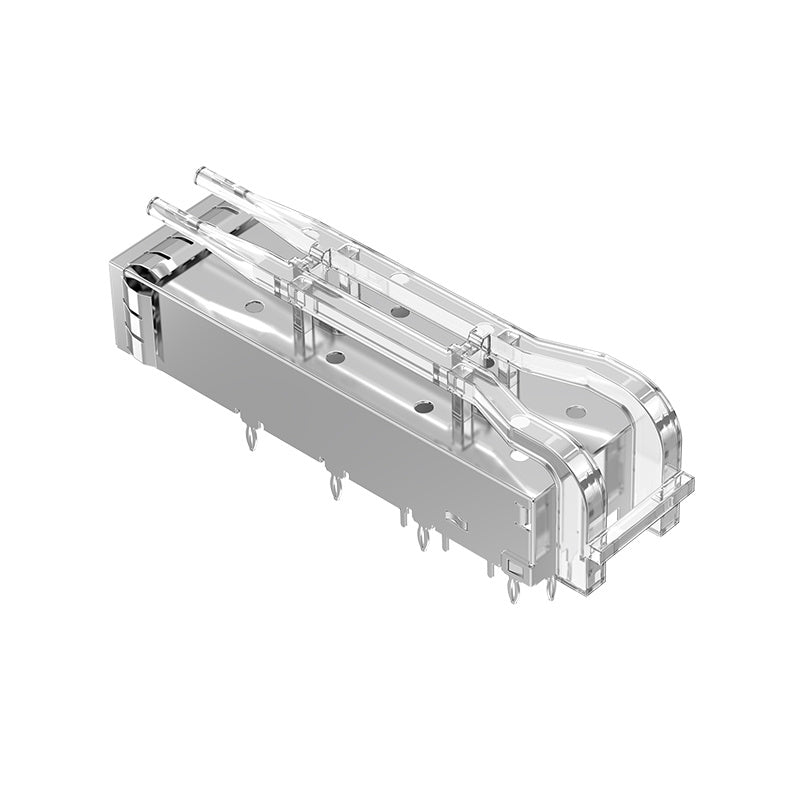

To ensure pristine signal integrity in noisy electronic chassis, the FT11BC02100 is constructed from highly durable Nickel-Plated Copper Alloy and features heavy-duty External EMI Springs. These springs establish continuous, 360-degree electrical grounding against the equipment chassis faceplate, critically absorbing structural tolerances and containing RF leakage to ensure strict FCC/CE electromagnetic compatibility. A major architectural advantage of this specific assembly is its Integrated Lightpipe. This optical feature allows PCB designers to route Link and Activity LED indicators from the underlying motherboard directly to the front bezel, optimizing front-panel density and eliminating the need for complex secondary LED mounting hardware.

Mechanically, the cage is tailored for high-yield, solderless manufacturing. It utilizes a Press-Fit termination, optimized for standard Through-Hole (THT) PCB layouts. This Press-Fit architecture is a crucial Design for Manufacturing (DFM) requirement, as it completely eliminates the extreme thermal stress associated with wave soldering on complex, high-layer-count motherboards while guaranteeing superior, long-term mechanical retention against transceiver insertion forces.

Uniquely, the FT11BC02100 boasts an extreme Operating Temperature Range of -55°C to +85°C. This aerospace and industrial-grade thermal resilience ensures zero structural warping or plating degradation under severe environmental stress. It is the definitive SFP housing solution for ruggedized outdoor 5G telecom base stations, unconditioned edge computing enclosures, industrial Ethernet switches, and compact networking gateways.

Product Specifications
