SteadiBeam® 1064 nm 200 W Isolator

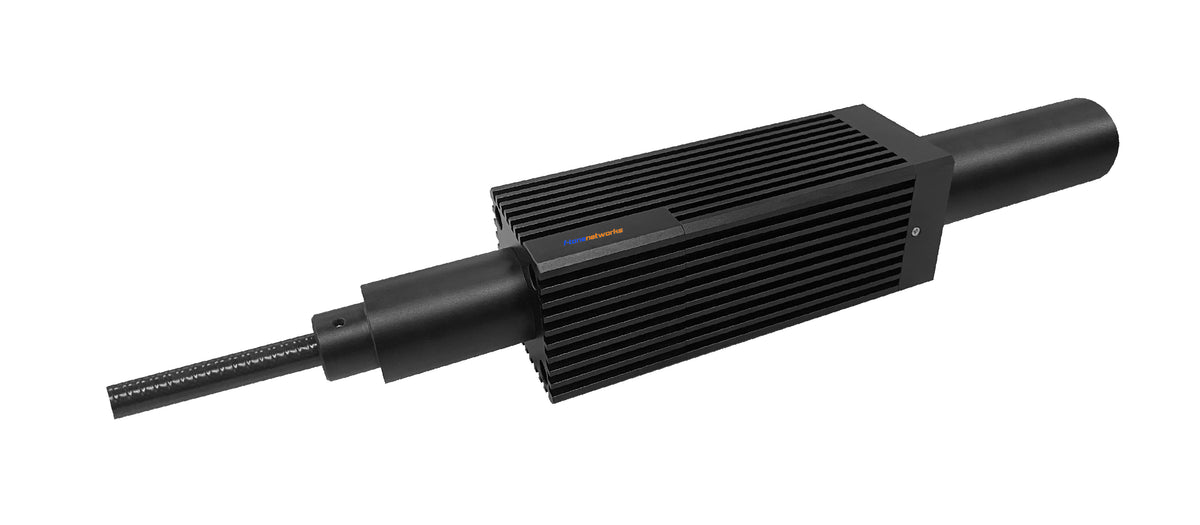

F-tone's SteadiBeam® is the best Isolator designed for high power pulsed fiber lasers. Two versions of design are compatible with lasers of 100 W and 200 W respectively. Under multiple patented technologies, the SteadiBeam® isolator delivers unparalleled performance of aberration-free and thermal lensing-free beam quality at any output power level. It also provides high isolation for reflection coming from all spatial angles.
Product Detail
|
Key Features |
Applications |
|
High Power Handling |
Fiber Lasers |
|
Low Insertion Loss |
Fiber Optic Instruments |
Specifications
|
Parameter |
Unit |
Value |
|
Center Wavelength (λc) |
nm |
1064 ± 15 |
|
Max. Insertion Loss @ 30 ℃, λc |
dB |
0.4 |
|
Typ. Peak Isolation |
dB |
40 |
|
Min. Isolation @ 30 ℃ |
dB |
30 |
|
Min. Isolation @ Whole Operating Temperature Range |
dB |
20 |
|
Min. Return Loss |
dB |
50 |
|
Nominal Output Beam Diameter (1/e2) |
mm |
6.5 ± 0.5 |
|
Beam Circularity |
% |
> 90 |
|
M2 Degradation |
% |
< 10 |
|
Focal Shift @ 200 W |
ZR |
< 0.3 |
|
Max. Average Optical Power |
W |
200 |
|
Max. Average Optical Power from Cladding |
W |
5 |
|
Max. Peak Power (Pulse Width, 10 ns) |
kW |
30 |
|
Reverse Power Handling |
W |
10 W Continuous |
|
50 W (3 min max.) |
||
|
Fiber Types |
- |
Specified by Ordering Info |
|
Operating Temperature |
℃ |
+ 10 to + 50 |
|
Storage Temperature (Non-Condensing Condition) |
℃ |
- 10 to + 60 |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Other details are available from any F-tone Networks sales representative.
