TE Connectivity 1-2007394-6 Compatible SFP+ 2x4 Stacked Cage Assembly Technical Overview

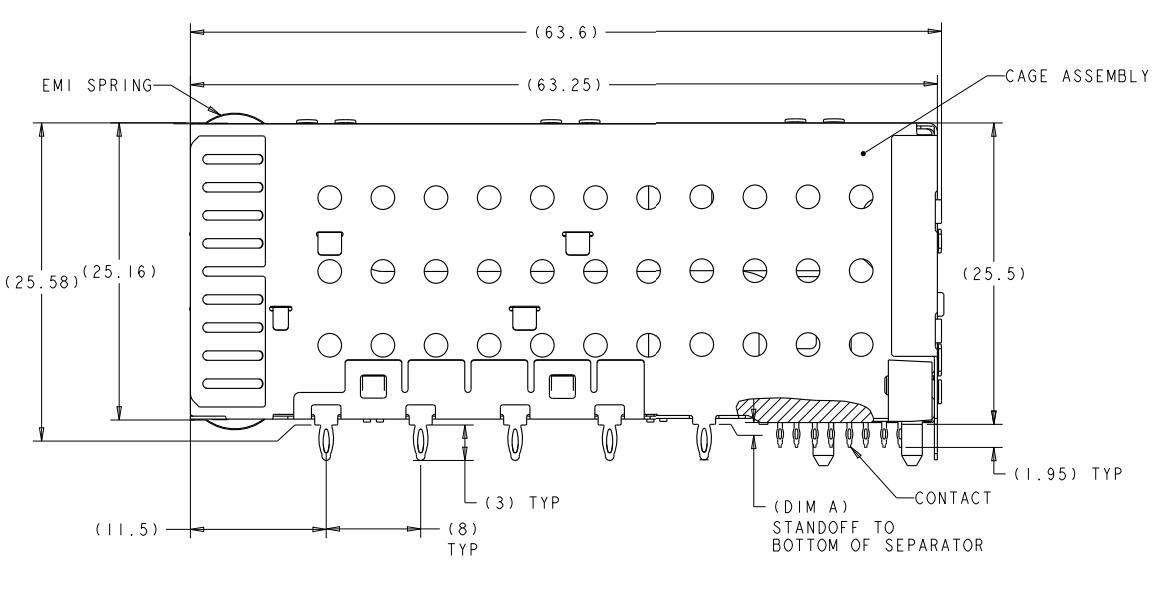

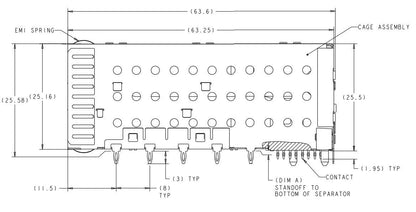

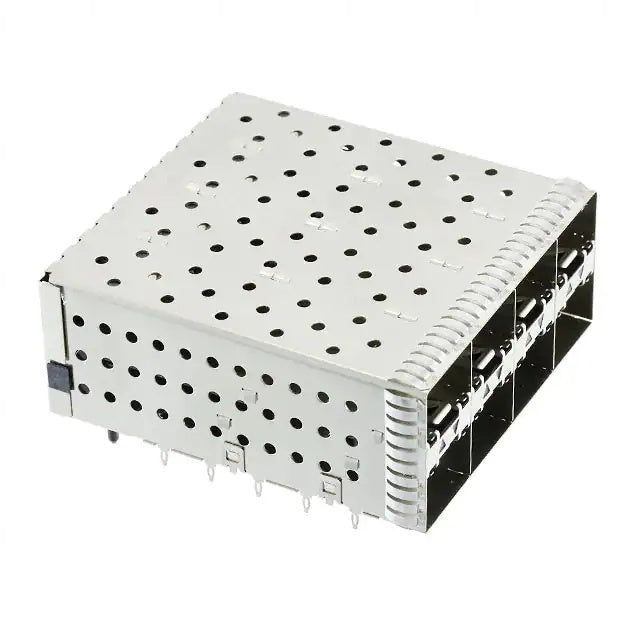

The TE Connectivity 1-2007394-6 is an EMI-enhanced 2x4 stacked SFP+ 8-port octal cage assembly featuring an integrated 160-position host electrical connector and integrated optical lightpipes designed for TE Connectivity 1-2007394-6 compatible applications in high-density 10Gb/s Ethernet and 16Gb/s Fibre Channel systems. Featuring a fully solderless press-fit design for both cage and receptacle pins, a nickel silver housing, and external metallic EMI springs, it combines octal-port vertical/horizontal I/O consolidation, real-time optical LED link status diagnostics, low transfer impedance panel grounding, and simplified board assembly for enterprise switches, SAN storage directors, and telecom infrastructure.
- Mechanical Form Factor: 2x4 Stacked Octal 8-Port SFP+ Cage Assembly with integrated dual-tier 160-position electrical receptacle and optical lightpipe channels (2 Rows x 4 Columns).
- Signal Ecosystem Support: Engineered for 10GbE optical transceivers, 16G Fibre Channel modules, and Direct Attach Copper (DAC) cables operating up to 16 Gb/s (SFF-8431).
- Board Mount Technology: Solderless Through-Hole Press-Fit termination with 3.0mm [.118 in] tail length, optimized for standard 1.5mm [.059 in] PCB substrates.
- Alternative Sourcing Option: Multi-source engineering options are available to support secondary sourcing strategies, BOM cost optimization, and supply chain flexibility.
TE Connectivity 1-2007394-6 SFP+ Cage Assembly Product Overview
TE Connectivity 1-2007394-6 is an integrated 2x4 stacked SFP+ receptacle and cage assembly featuring integrated lightpipe optics, EMI-enhanced external perimeter metallic EMI spring gaskets, nickel silver alloy construction, and press-fit PCB mounting. Designed for octal-port density expansion on high-performance line cards in enterprise core switches, SAN storage arrays, and telecom routing enclosures, this 8-port stacked assembly integrates the 160-position electrical card-edge connector inside the cage body, eliminating secondary SMT host connector reflow and lightpipe installation operations (-55°C to +105°C).
Key Benefits of TE Connectivity 1-2007394-6 SFP+ Cage Assembly
- Integrated 160-Position Receptacle, Cage & Lightpipe Architecture: Houses the 8-port 160-position electrical connector, metallic 2x4 cage shell, and optical lightpipes into a single press-fit assembly, eliminating separate SMT host connector reflow and lightpipe mounting steps.

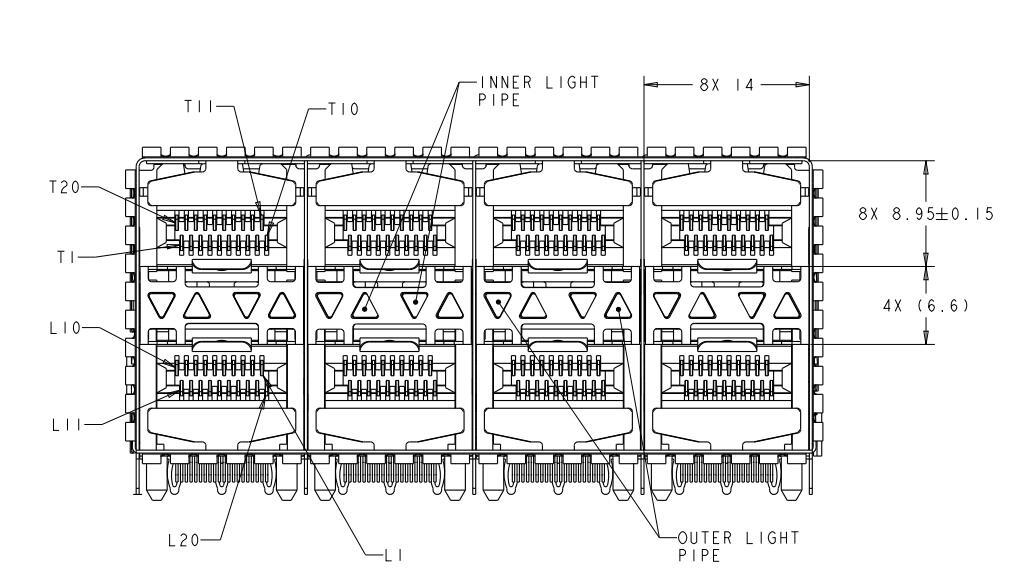

- Integrated Optical Status Diagnostics: Pre-assembled lightpipe channels guide light from surface-mount LEDs on the PCB cleanly to the front bezel, providing clear visual link and activity status indication for all eight stacked ports.
- Maximum 2x4 Octal 8-Port Density Consolidation: Arranges eight SFP+ ports in a 2-row by 4-column matrix, dramatically increasing front-panel I/O capacity per linear inch of faceplate width on 1RU/2RU switch line cards.
- Solderless All-Press-Fit PCB Assembly: 3.0mm [.118 in] press-fit tails terminate all 160 signal/ground contacts and cage retention legs into plated through-holes in a single press operation, avoiding thermal reflow stress on the board substrate.
- EMI-Enhanced External Spring Shielding: External perimeter metallic spring gaskets establish continuous, low-impedance grounding against front-panel bezel cutouts across all eight stacked ports.
- Multi-Source Availability: Industry-standard mechanical footprint enables secondary sourcing strategies to improve supply chain flexibility, lead-time management, and BOM optimization.
| Part Number | 1-2007394-6 | Part Status | Active |
| Connector Style | Receptacle with Cage, Ganged (2x4) | Connector Type | SFP+ |
| Data Rate (Max)(Gb/s) | 16 | Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 2x4 Ports | Number of Ports | 8 |
| Number of Positions | 160 | Connector Mounting Type | Board Mount |
| Operating Temperature Range | -55 – 105°C | Pluggable I/O Applications | EMI Enhanced |
| Circuit Application | Signal | EMI Containment Feature Type | Elastomeric Gasket |
| Included Lightpipe | Yes | Cage Material | Nickel Silver |
| PCB Thickness (Recommended) | 1.5mm[.059in] | Tail Length | 3mm[.118in] |
