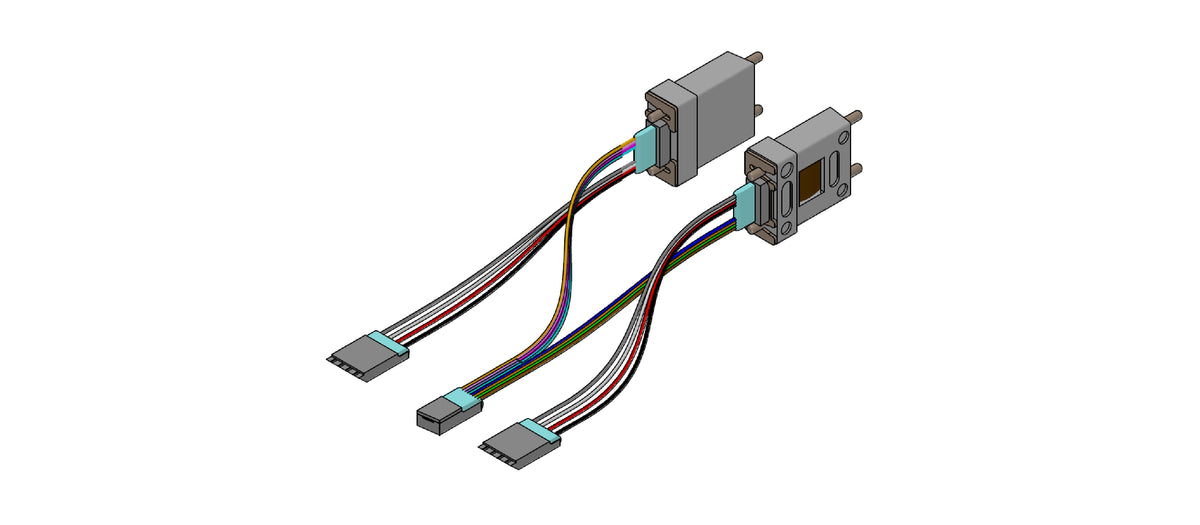

1.6T MT-FAU

1.6T MT-FAU

View full details

F-tone’s 400G/800G/1.6T DR product is assembled using the FA-MT method. It functions as the signal transmitter and receiver inside the optical module, and is a critical component of the 400G/800G/1.6T optical module.

Key Features Applications
High Market Demand 400G/800G/1.6T Data Center Application
High Degree of Automatic Assembly
Low Cost
Specifications
Parameter Unit Value
Wavelength nm 1310 or 1550
Channel Count
2004/8/16
Typ. Insertion Loss dB 0.25
Max. Insertion Loss dB 0.5
Max. Pitch Error μm 0.75
Fiber Length Tolerance % ± 0.2
Operating Temperature ℃ - 5 to + 70
Storage Temperature ℃ - 40 to + 85




This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

View all

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

View all

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
