ENQD55301C Compatible Replacement – 1×8 Optical Transceiver Module

ENQD55301C Compatible Replacement – 1×8 Optical Transceiver Module

View full details

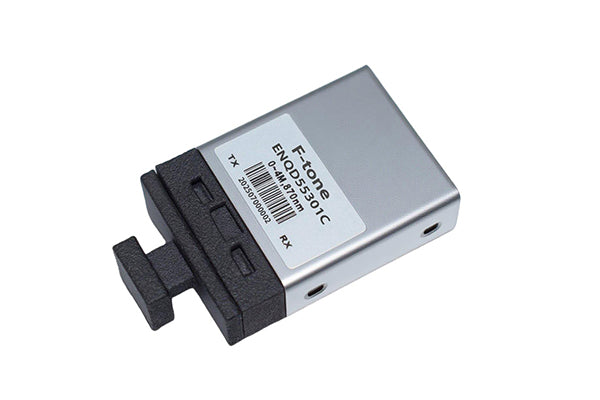

ENQD55301C Compatible Replacement – 1×8 Optical Transceiver Module

Product Description

F-tone’s ENQD55301C series of transceiver modules are the perfect solution for ultra-low speed communication networks. These transceiver modules support data rates DC to 4Mbps.

Looking for a replacement for the discontinued Panasonic ENQD55301C optical transceiver?

F-tone Networks offers the ENQD55301C series of 1×8 optical transceiver modules for ultra-low-speed optical communication applications, supporting data rates from DC to 4 Mbps.

Key Features

- 1×8 optical transceiver module
- Data rate: DC to 4 Mbps
- Designed for ultra-low-speed optical communication
- Technical datasheet, pin assignment and module outline drawing available
- Technical support for replacement compatibility evaluation

Need a Replacement for an Existing Device?

Contact F-tone Networks with your original part number, datasheet or equipment model. Our team can help evaluate the relevant specifications and replacement requirements.

Technical Support:

Email:una@f-tone.com
WhatsApp and WeChat: +86177 6116 3895


Performance metrics

Assignment & Signal Definition

Connector pin assignment

Recommended Circuit Schematic

Module Outline Drawing

Product display


Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
