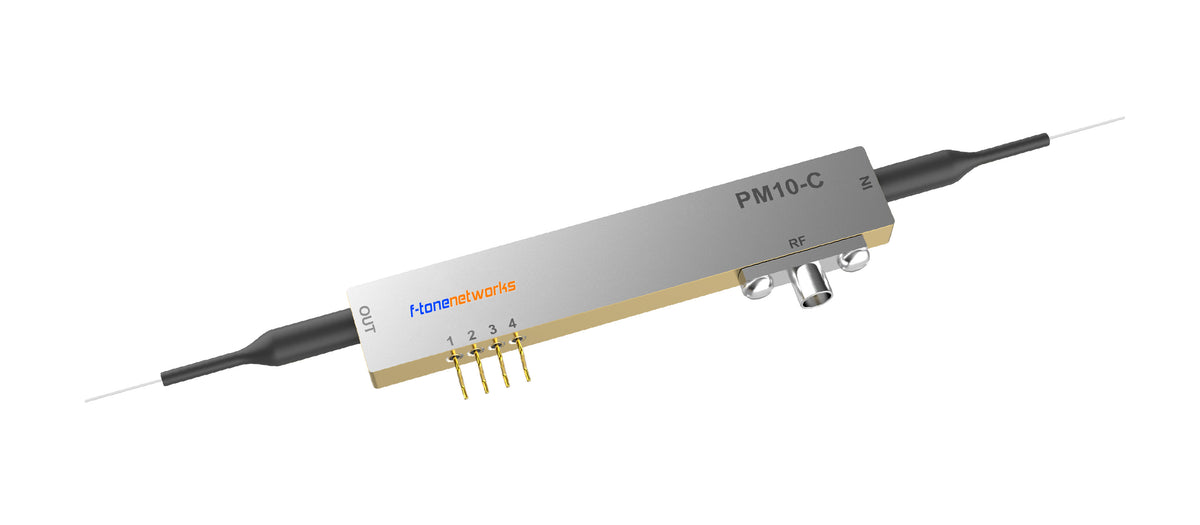

10 GHz Zero-Chirp Modulator

10 GHz Zero-Chirp Modulator

View full details

10 GHz Zero-Chirp Modulator



F-tone

high bandwidth zero-chirp F10 modulators are based on the Mach-Zehnder Interferometer (MZI) architecture. They are manufactured using the highly reliable titanium indiffusion technology in X-Cut, Y-Propagating LiNbO₃ substrates. The F10 is a single drive modulator designed for high bit rate advanced metro to long haul communication systems that requires the superior performance. The F10 modulator contains an integrated photo detector that may be used to set and lock the DC bias on the modulator as well as provide an estimate of the modulator output optical power.




Product Detail

Features

Applications

Titanium Indiffused Waveguid

External Intensity Modulation NRZ and RZ

X-Cut LiNbO3

High Frequency RF Signal over Fiber Optic Links

Operating at C-Band

Instrumentation

Enhances EO Bandwidth for up to 12.5 GHz

Zero-Chirp Modulator

Integrated Monitor Photodiode

Integrated Polarizer

Compliance with Telcordia GR-468-Core

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
