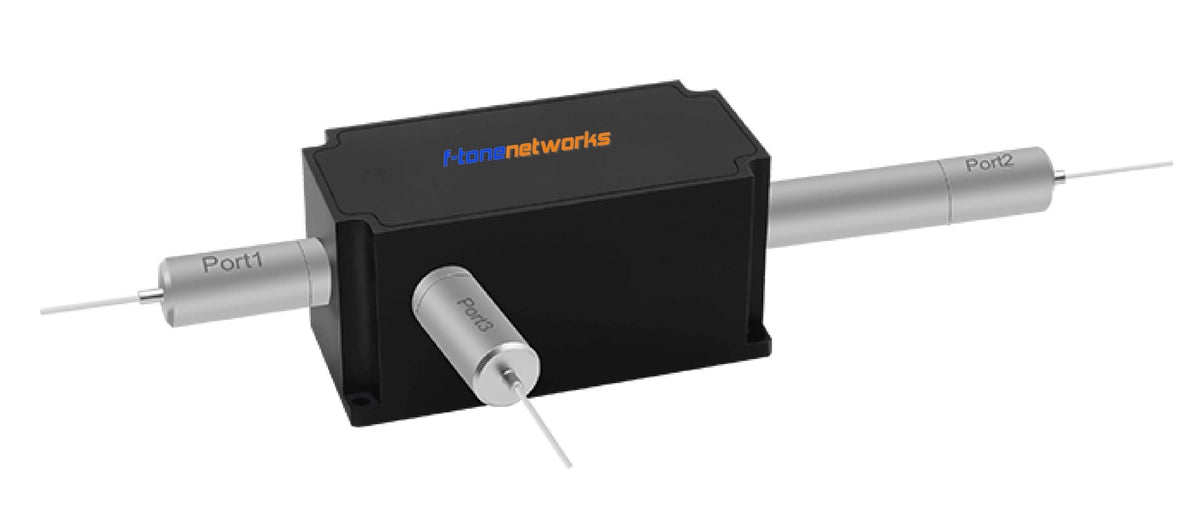

1064 nm 50 W Circulator
The High Power Polarization Insensitive Circulator is characterized with low insertion loss, high isolation, high power handling, high return loss. The circulator is ideal for fiber laser and instrumentation applications.
Product Detail
|
Key Features |
Applications |
|
Low Insertion Loss |
Fiber Lasers |
|
High Isolation |
Instrumentation |
|
High Return Loss |
Specifications
|
Parameter |
Unit |
Value |
|
Center Wavelength (λc) |
nm |
1064 |
|
Operating Wavelength Range |
nm |
λc ± 10 |
|
Min. Isolation, All Polarization States, 23 ℃ |
dB |
25 |
|
Typ. Insertion Loss, 23 ℃ |
dB |
0.5 |
|
Max. Insertion Loss, 23 ℃ |
dB |
0.8 |
|
Max. Polarization Dependent Loss |
dB |
0.2 |
|
Min. Crosstalk |
dB |
45 |
|
Min. Return Loss |
dB |
45 |
|
Max. Average Optical Power |
||
|
Port 1 → Port 2 |
W |
50 |
|
Port 2 → Port 3 |
W |
10 |
|
Max. Peak Power (Pulse Width, 10 ns) |
kW |
20 |
|
Max. Tensile Load |
N |
5 |
|
Fiber Type |
- |
Specified by ordering info |
|
Operating Temperature |
℃ |
+ 10 to + 50 |
|
Storage Temperature |
℃ |
0 to + 60 |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
