1064 nm Free Space Isolator

1064 nm Free Space Isolator

View full details

1064 nm Free Space Isolator

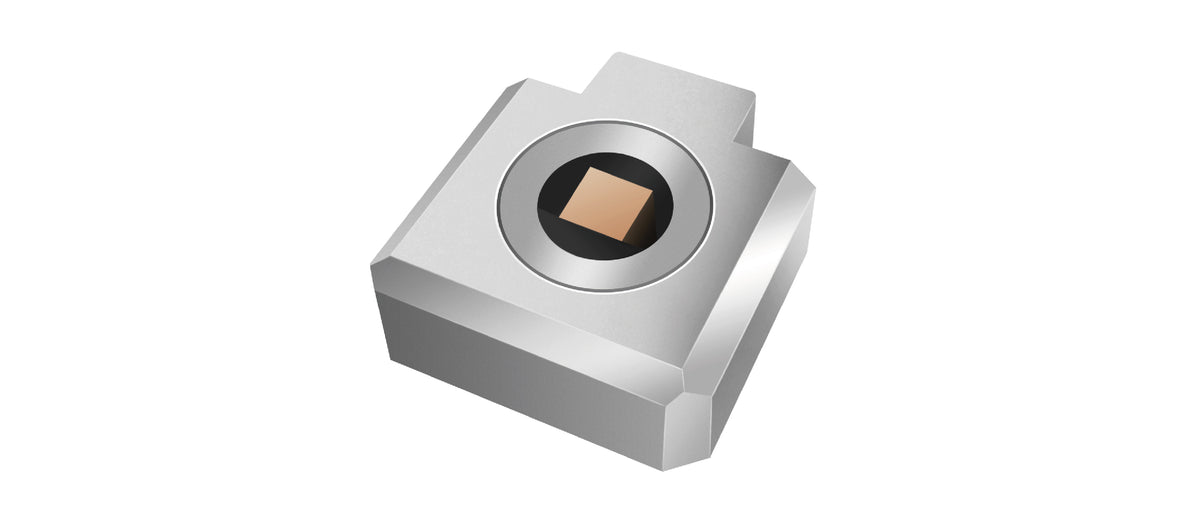

The Free Space Isolator series is designed for integration within laser diode package to prevent back reflection. The high isolation, low insertion loss and large aperture features make this free space isolator flexible to fit with different diode laser packaging requirements.


Product Detail

Key Features

Applications

High Isolation

Fiber Lasers

Low Insertion Loss

Protect Laser Chip
Specifications

 Parameter

Unit

Value

 Stage

-

Single Stage

Dual Stage

 Center Wavelength (λc)

nm

1064

 Peak Isolation

dB

40

52

 Min. Isolation, λc ± 10 nm, 23 ℃

dB

30

42

 Typ. Insertion Loss, 23 ℃

dB

1

2.1

 Max. Insertion Loss, 23 ℃

dB

1.2

2.3

 Clear Aperture

mm

0.9

 Max. Optical Power (Continuous Wave)

mW

300

 Polarization Plane of Input

-

As indicated

 Tilt Angle of Input Polarization

degree

0 or specify

 Operating Temperature

℃

0 to + 50

 Storage Temperature

℃

- 40 to + 85
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!

Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Other details are available from any F-tone Networks sales representative.
