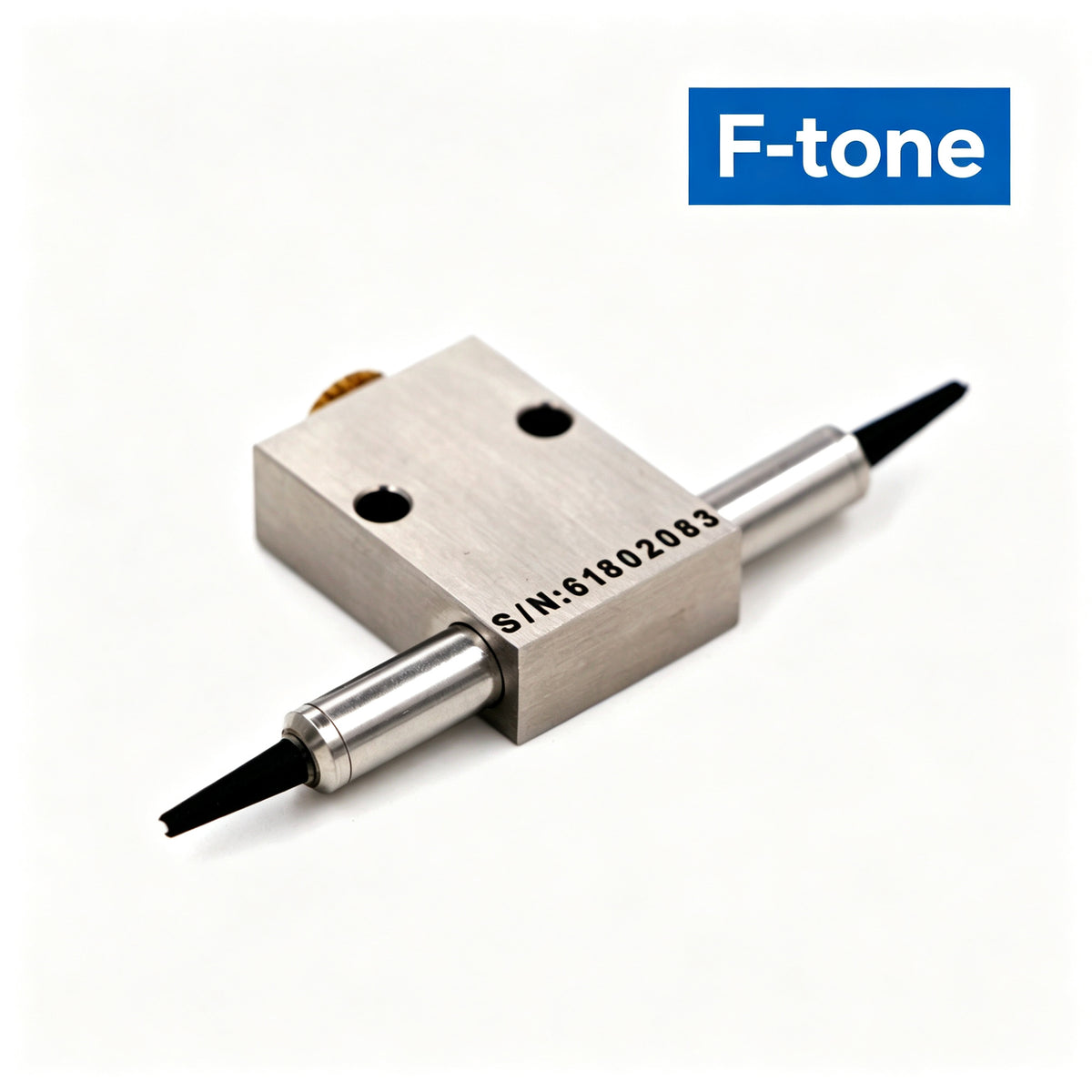

F-tone's Manual Variable Optical Attenuator is used for reducing the light power, by blocking the light with a screw.
Features & Applications
| Features | Applications |
|---|---|
| High Precision | Optical Communication Systems Test |
| Wide Attenuation Range | Optics Laboratory |
| Low Insertion Loss |
Specifications
| Parameter | Unit | Value |
|---|---|---|
| Center Wavelength | nm | 1064 |
| Operating Wavelength Range | nm | ±20 |
| Attenuation Range | dB | 0.6~60 |
| Max. Insertion Loss at 23℃ | dB | 0.6 |
| Min. Extinction Ratio at 23℃ | dB | 20 |
| Min. Return Loss at 23℃ | dB | 50 |
| Adjustment Precision | dB | 0.02 |
| Max. Power Handling (CW) | mW | 500 |
| Fiber Type | - | PM Panda Fiber |
| Operating Temperature | ℃ | 0 ~ +70 |
| Storage Temperature | ℃ | -40~+85 |
| Package Dimensions | mm | 26x18x8 |
Ordering Information
①①①①
- Wavelength:
1064=1064nm, SSSS=Specified
②
- Working Axis:
B=Both axis working, F=Fast axis blocked
③③③
- Fiber Type:
003=PM980, SSS=Specified
④
-
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
