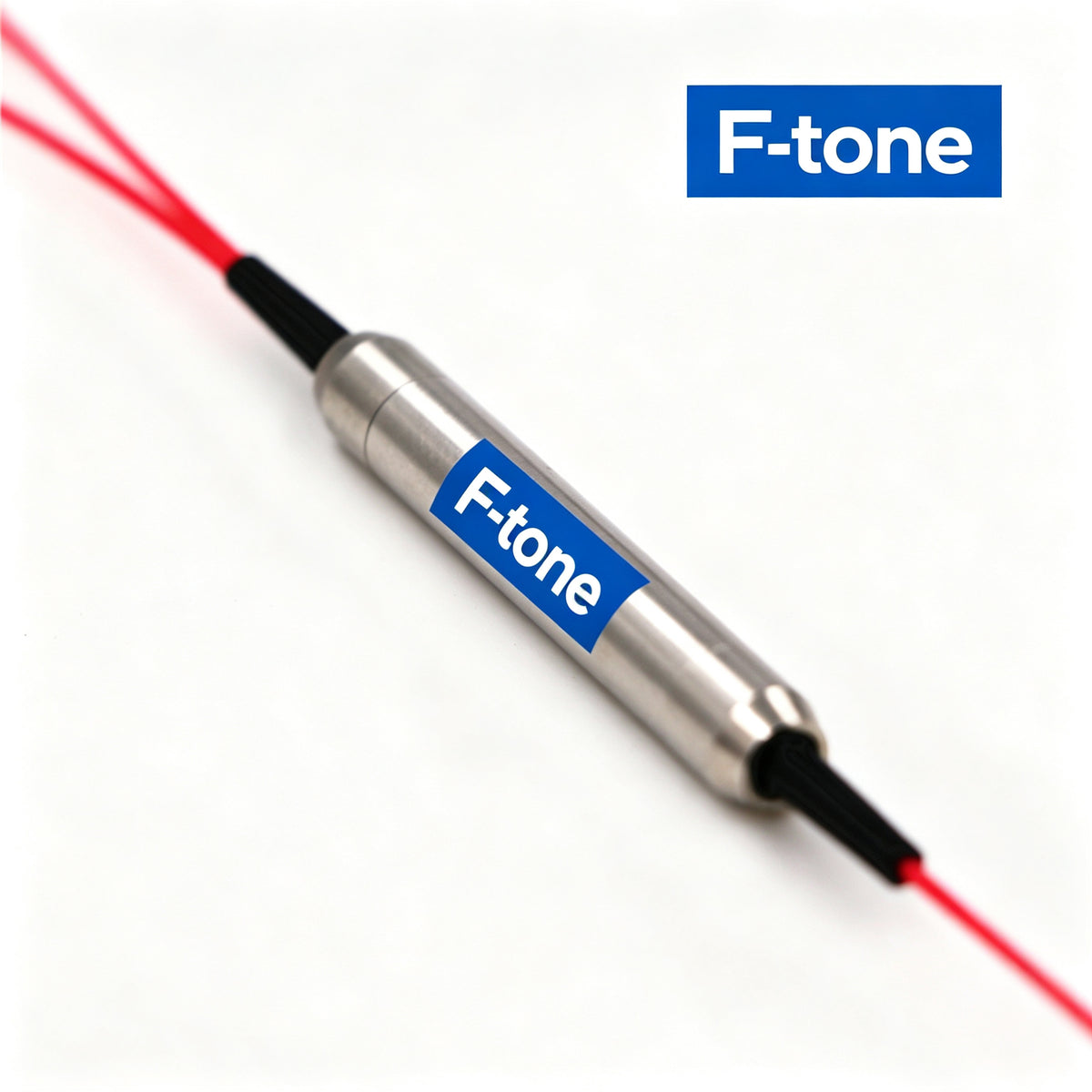

F-tone's Polarization Beam Splitter is designed to divide one beam of any polarization into the two beams of the polarization vertical to each. The optical route is from one fiber to two fiber.
Features & Applications
| Features | Applications |
|---|---|
| Low Insertion Loss | Fiber Optical Current Transducer |
| High Return Loss | Fiber Sensor |
| High Extinction Ratio | Optical Fiber Gyro |
| High Reliability & Stability | Coherent Telecommunication Systems |
Specifications
| Parameter | Unit | Value |
|---|---|---|
| Grade | - | P / A |
| Center Wavelength | nm | 1064 |
| Operating Wavelength Range | nm | ±20 |
| Typ. Insertion Loss at 23℃ | dB | 0.6 / 0.7 |
| Max. Insertion Loss at 23℃ | dB | 0.7 / 0.8 |
| Min. Extinction Ratio at 23℃ | dB | 22 / 20 |
| Min. Directivity | dB | 50 |
| Min. Return Loss | dB | 50 |
| Max. Optical Power (CW) | mW | 300 |
| Max. Tensile Load | N | 5 |
| Fiber Type | Port 1 & 2 | - / PM Panda fiber |
| Operating temperature | ℃ | -5~+70 |
| Storage temperature | ℃ | -40~+85 |
Ordering Information
PBC-①①①①-②③-④④④-⑤⑤⑤-⑥⑦-⑧-⑨⑨⑨
①①①①
- Wavelength:
1064=1064nm, SSSS=Specified
②
- Grade:
P=Perfect grade, A=A grade
③
- Option for Port 3 to 1&2:
1=SM Fiber to PM Fiber;
2=PM Fiber to PM Fiber, Port 3 is slow axis 0° aligned to Port 1;
3=PM Fiber to PM Fiber, Port 3 is slow axis 45° aligned to Port 1;
④④④
- Fiber Type for Port 3:
003=PM980, 004=Hi1060, SSS=Specified
⑤⑤⑤
- Fiber Type for Port 1&2:
003=PM980, 004=Hi1060, SSS=Specified
⑥
-
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
