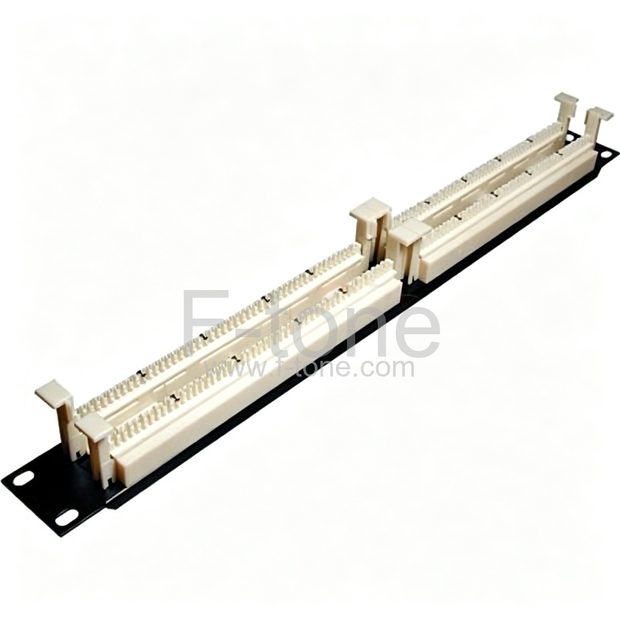

110 type 400 Pair Cross Connection Panel, 19' 4U

110 type 400 Pair Cross Connection Panel, 19' 4U

View full details

Part Number: 110C-400P-FT004

110 type 400 Pair Cross Connection Panel, 19" 4U

110 Cross Connection Panel from F-tone is a flexible, reliable and high density system that exceeds the ANSI/TIA/EIA-568-B.2 Category 5e component performance specifictions. They are designed for 19" mounting construction. These are used for voice and data applications where space limits the use of relay rack. A high density 110 termination field for voice and data applications can be created by mounting 110 Cross Connection Panel on wall or distribution frame. 110 Cross Connection Panel are available 100,200,300 and 400 pair type panel.

Features:

Exceeds ANSI/TIA/EIA-B.2 Category 5e Specifications
Accepts discrete wire or 110-type patch cord
Cost-effective, reliable solution for high-density applications
Interoperability with existing 110 systems
Flexible solution sonsisting of 100,200,300 and 400 pair connecting panels

Material specifications:

Polycarbonate UL 94V-0
Conductor: Solid or Stranded 26-22 AWG

Standards/Compliance

Meets ANSI/TIA/EIA-568-B.2-6-110 Requirements
Meets ISO/IEC Generic Cabling Standard 11801:2002 ed.2.0
Meets CENELEC Generic Cabling Standard EN50173-1:2002
Electrical specs according to UL 1863
RoHS Compliant


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
