40 GHz IQ Modulator

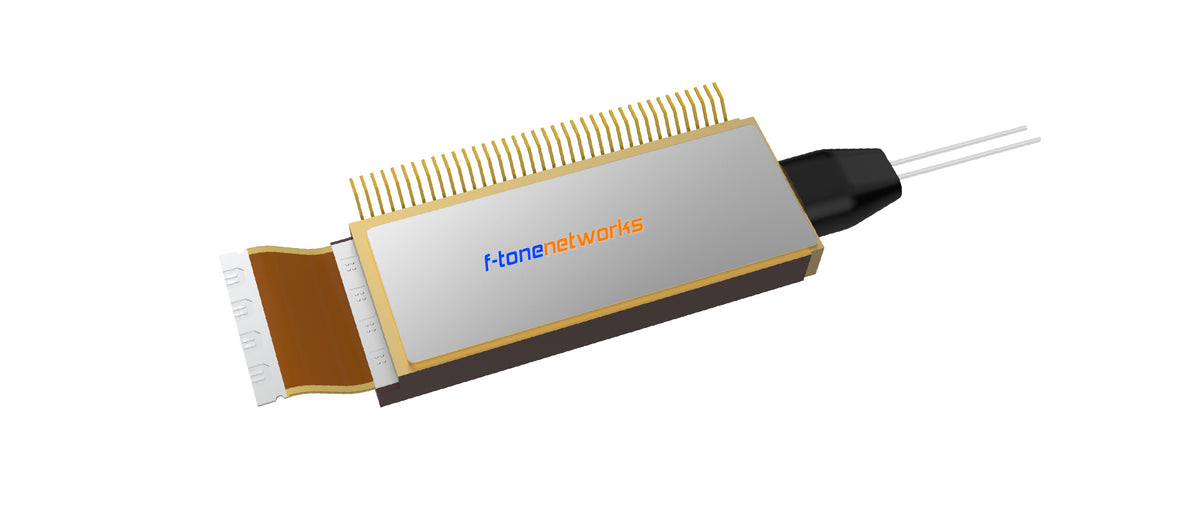

F-tone's HB-CDM-130G is a quad-channel 130 GBaud high-bandwidth coherent driver modulator integrated with an RF driver, based on Thin-Film LiNbO₃ chip. It is designed for 400/800 Gb/s or 1.2Tb/s coherent optical transport systems and transceivers, with baud rate over 130G per channel.
|
Features |
Applications |
| Support Coherent Transmission at Baud Rate of up to 130 GBaud |
DP-QPSK Coding |
|
C/C++ Band, and L/L++ Band Available |
DP-16QAM Coding |
|
High EO Bandwidth 65 GHz |
DP-64QAM Coding |
|
High Extinction Ratio ≥ 23 dB |
|
|
Compatible with OIF-HB-CDM-2.0 IA Type-3 |
|
|
Standard Form Factor Module 30 × 11.8 × 4.35 mm |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
