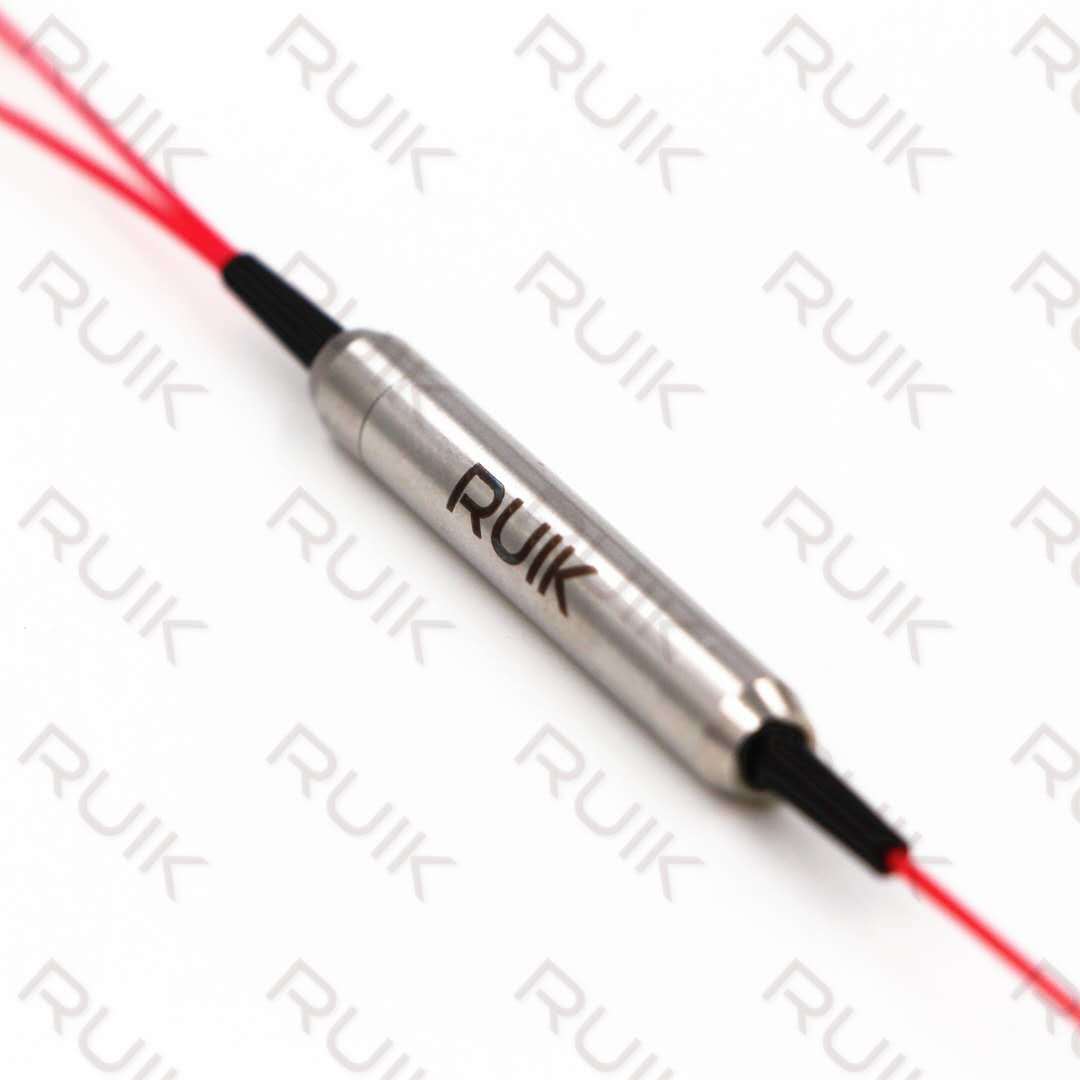

The Polarization Maintaining Tap Isolator combines a tap coupler and isolator into a single compact package. It is characterized with high extinction ratio, low insertion loss, high isolation and a very stable tap-coupling ratio. It is widely used in fiber amplifiers, fiber lasers and fiber sensors.
Features & Applications
| Features | Applications |
|---|---|
| Low Insertion Loss | Compact Fiber Amplifiers |
| High Return Loss | Compact Fiber Optical System |
| High Extinction Ratio | Fiber Laser |
| High Isolation | Fiber Sensor |
Specifications
| Parameter | Unit | Value |
|---|---|---|
| Stage | - | Single / Dual |
| Center Wavelength | nm | 1310 |
| Operating Wavelength Range | nm | ±15 |
| Max. Excess Loss at 23℃ | dB | 1.0 / 1.2 |
| Typ. Peak Isolation | dB | 40 / 52 |
| Min. Isolation at 23℃ | dB | 28 / 45 |
| Min. Extinction Ratio at 23℃ | dB | 20 |
| Signal Tap Ratio | % | 1±0.2%, 2±0.4%, 5±1%, 10±2% |
| Min. Return Loss at 23℃ | dB | 50 |
| Max. Optical Power (CW) | mW | 300 |
| Max. Tensile Load | N | 5 |
| Fiber Type | - | PM Panda Fiber |
| Operating Temperature | ℃ | 0~+70 |
| Storage Temperature | ℃ | -40~+85 |
Ordering Information
①①①①
- Wavelength:
1310=1310nm
②
- Working Axis:
1=Option 1, 2=Option 2, 3=Option 3, 4=Option 4, 5=Option 5, 6=Option 6
③
- Stage:
S=Single-core stage, D=Dual-core stage
④④
- Tap ratio:
01=1%, 02=2%, ..., 50=50%
⑤⑤⑤
- Fiber Type for In & Out:
002=PM1310, SSS=Specified
⑥⑥⑥
- Fiber Type for Tap:
002=PM1310, SSS=Specified
⑦
-
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
