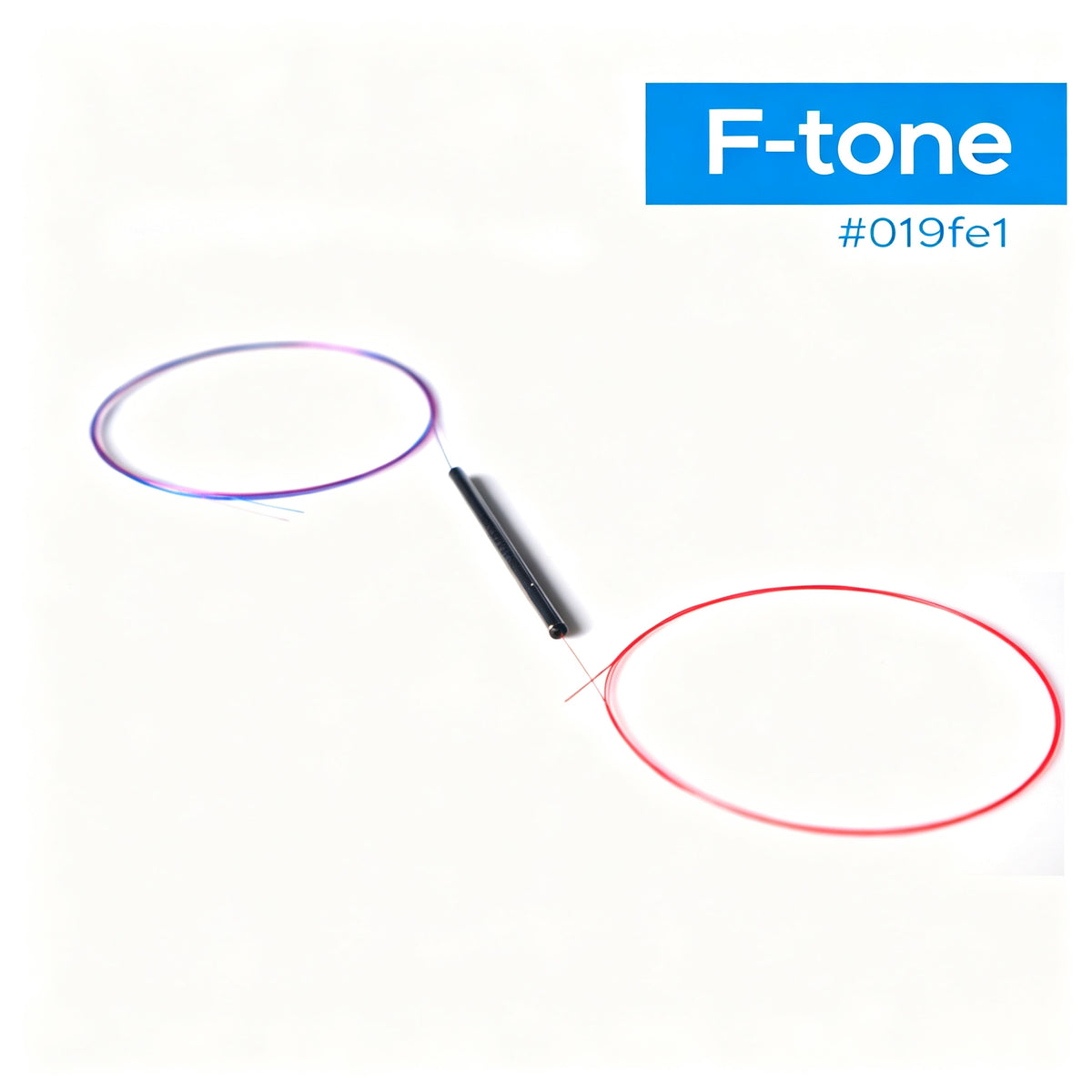

The Fused Type PM Fiber Coupler is characterized by low insertion loss, high power signal processing and stable & reliable environment. Suitable for Fiber Gyroscope, Power Monitor and Optical Sensor.
Features & Applications
| Features | Applications |
|---|---|
| Wavelength 532 - 2100nm available | Coherent Communication |
| Low Insertion Loss | Power Monitor |
| High Stability & Reliability | Fiber Sensor |
Specifications
| Parameter | Unit | Value |
|---|---|---|
| Type | - | 1x2 / 2x2 |
| Center Wavelength | nm | 1310 |
| Operating Bandwidth | nm | ±15 |
| Max. Excess Loss | dB | 0.5 / 0.6 |
| Min. Extinction Ratio | dB | 20 |
| Min. Directivity | dB | 50 |
| Max. Return Loss | dB | 50 |
| Max. Optical Power (CW) | W | 3 |
| Fiber Type | - | PM Panda Fiber |
| Package Dimensions | mm | φ3*54 |
| Operating Temperature | ℃ | -5~+75 |
| Storage Temperature | ℃ | -40~+85 |
| Splitting Ratio | 50 | % / ±3.0 |
| 40 | % | ±2.5 |
| 30 | % | ±2.0 |
| 20 | % | ±1.5 |
| 10 | % | ±1.0 |
| 5 | % | ±0.7 |
| 1 | % | ±0.3 |
Ordering Information
PMFUC-①①①①-②③③-④④④-⑤⑥-⑦-⑧⑧⑧⑧ (2x2 Type)
①①①①
- Wavelength:
1310=1310nm, SSSS=Specified
②
- Port Type:
3=1x2, 4=2x2
3
③③
- Tap Ratio：
01=1/99, 05=5/95, ..., 50=50/50
④④④
- Fiber type:
002=PM1310, SSS=Specified
⑤
-
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
