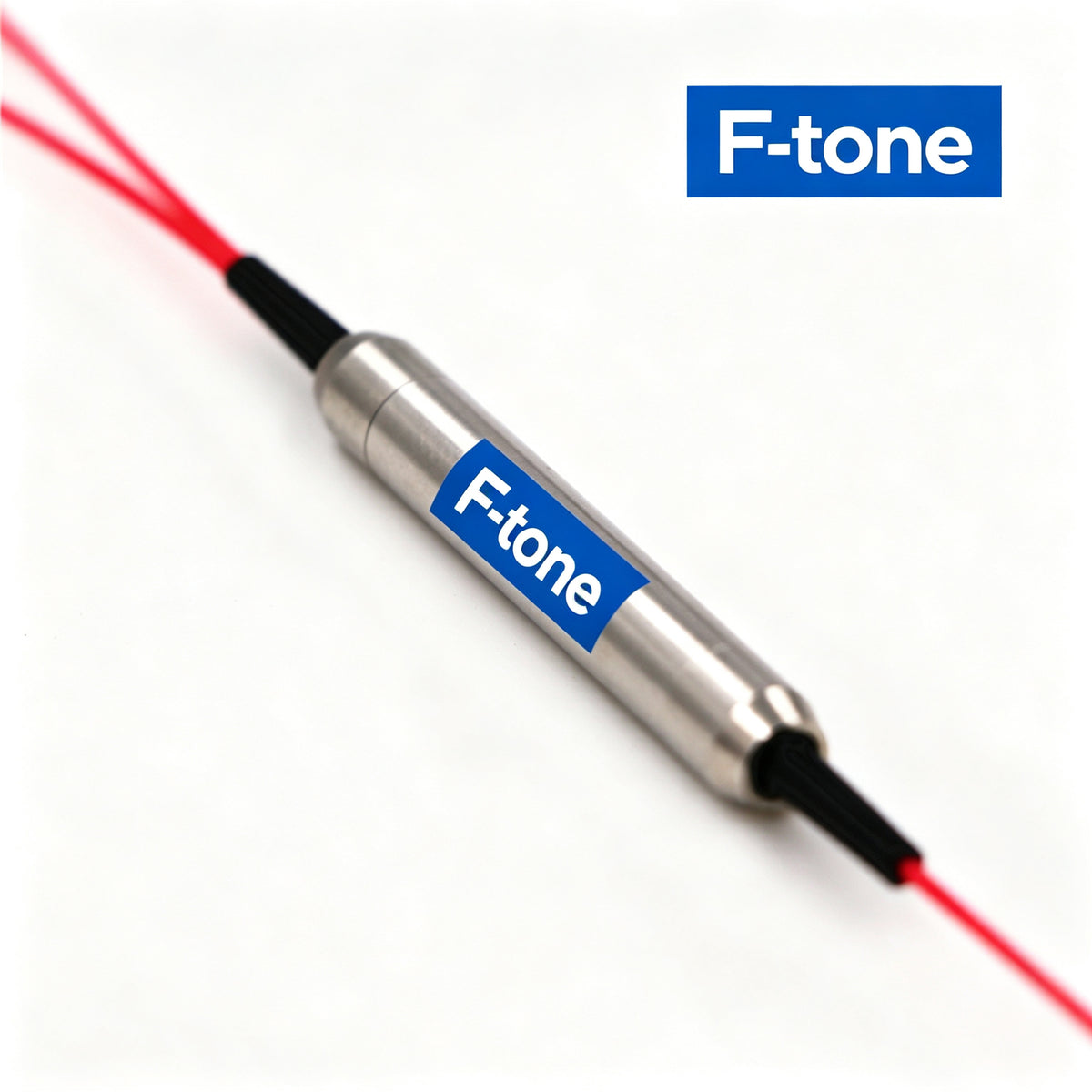

The Polarization Beam Splitter is a device with compact size, which combines two polarization signals into one output fiber. Characterized with excellent features of low insertion loss, high extinction ratio & return loss, high reliability and stability.
Features & Applications
| Features | Applications |
|---|---|
| Low Insertion Loss | Fiber Optical Current Transducer |
| High Return Loss | Fiber Sensor |
| High Extinction Ratio | Optical Fiber Gyro |
| High Reliability & Stability | Coherent Telecommunication Systems |
Specifications
| Parameter | Unit | Value |
|---|---|---|
| Grade | - | P / A |
| Center Wavelength | nm | 1310 |
| Operating Wavelength Range | nm | ±40 |
| Typ. Insertion Loss at 23℃ | dB | 0.4 / 0.5 |
| Max. Insertion Loss at 23℃ | dB | 0.6 / 0.7 |
| Min. Extinction Ratio at 23℃ | dB | 22 / 20 |
| Min. Directivity | dB | 50 |
| Min. Return Loss | dB | 50 |
| Max. Optical Power (CW) | mW | 300 |
| Max. Tensile Load | N | 5 |
| Fiber Type | Port 1 & 2 | - / PM Panda fiber |
| Operating temperature | ℃ | -5~+70 |
| Storage temperature | ℃ | -40~+85 |
Ordering Information
PBC-①①①①-②③-④④④-⑤⑤⑤-⑥⑦-⑧-⑨⑨⑨
①①①①
- Wavelength:
1310=1310nm, SSSS=Specified
②
- Grade:
P=Perfect grade, A=A grade
③
- Option for Port 3 to 1&2:
1=SM Fiber to PM Fiber;
2=PM Fiber to PM Fiber, Port 3 is slow axis 0° aligned to Port 1;
3=PM Fiber to PM Fiber, Port 3 is slow axis 45° aligned to Port 1;
④④④
- Fiber Type for Port 3:
002=PM1310, 008=SMF-28E, SSS=Specified
⑤⑤⑤
- Fiber Type for Port 1&2:
002=PM1310, 008=SMF-28E, SSS=Specified
⑥
-
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
