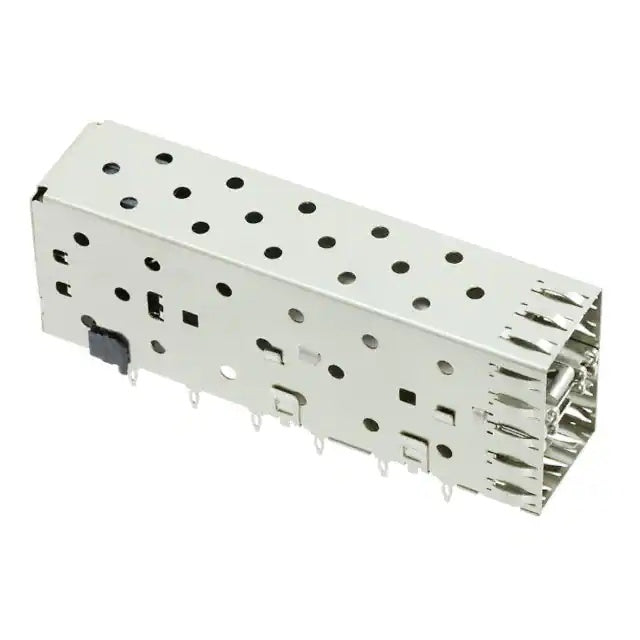

1658628-2 SFP Cage Assembly with Integrated Connector 4 Gb/s EMI Springs,40 (20 x 2) Position SFP Receptacle with Cage, Ganged (2x1) Connector Solder Through Hole, Right Angle
The TE 1658628-2 is a high-reliability SFP cage assembly with integrated connector designed for high-speed optical and networking applications. Supporting up to 4Gb/s data transmission, this 2x1 ganged SFP receptacle provides stable mechanical and electrical performance for demanding communication systems.
Featuring a robust through-hole, right-angle solder mount design, the 1658628-2 ensures secure PCB attachment and efficient space utilization in high-density board layouts. Its EMI-shielded construction with EMI springs helps reduce electromagnetic interference and improves signal integrity in high-speed environments.
Compliant with industrial-grade requirements, this SFP cage assembly is engineered for reliability across a wide operating temperature range of -55°C to +105°C. It is suitable for use in telecom infrastructure, data center switches, routers, optical transceivers, and high-performance networking equipment.
The integrated cage and connector structure simplifies system design while maintaining excellent durability and consistent signal performance, making it an ideal solution for modern SFP-based optical communication platforms.
Key Features:
- SFP cage assembly with integrated connector design
- Supports up to 4Gb/s data rate
- 2x1 ganged (dual-port) configuration
- Through-hole right-angle solder mounting
- EMI shielded with integrated EMI springs
- Board guide for improved mechanical alignment
- Operating temperature: -55°C to +105°C
- Suitable for SFP optical modules and high-speed networking systems
Product Specifications
| Part Number | 1658628-2 | Part Status | Active |
| Connector Style | Receptacle with Cage, Ganged (2x1) | Connector Type | SFP |
| Number of Positions | 40(20 x 2) | Mounting Type | Through Hole, Right Angle |
| Termination | Solder | Features | Board Guide, EMI Shielded |
| Port Matrix Configuration | 2x1 Ports | Number of Ports | 2 |
| Data Rate (Max)(Gb/s) | 4 GB/S | PCB Mounting Style | Through Hole -Solder |
| Operating Temperature Range | -55 – 105°C | Pluggable I/O Applications | SFP |
| Circuit Application | Signal | EMI Containment Feature Type | EMI Springs |
| Included Lightpipe | NO |
