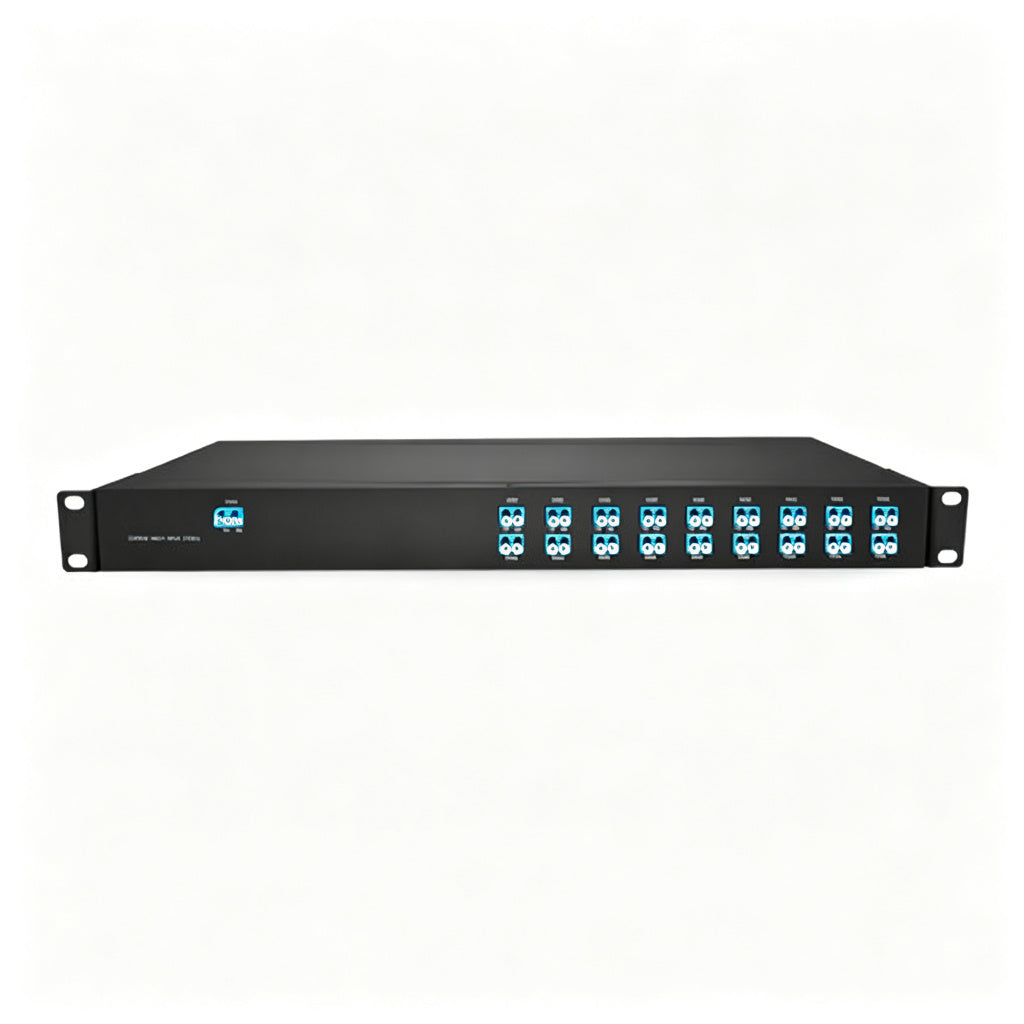

18 channels Duplex CWDM MUX DEMUX 1270nm to 1610nm with Monitor Port

Part Number: 18MDD-1RU-FTCWDM

CWDM MUX DEMUX 18 channels Duplex 1270nm to 1610nm with Monitor Port

Duplex CWDM MUX & DEMUX

Multiplexer (MUX) and demultiplexer (DEMUX) are combined together into a single piece of equipment for bi-directional data transmission over two fibers.

F-tone CWDM Mux/Demux is a passive technology, it allows for any protocol to be transported over the link, as long as it is at a specific wavelength (i.e. T1 over fiber at 1570nm transported alongside 10Gbps Ethernet at 1590nm). This allows for long-term future proofing of the networking infrastructure because the multiplexers simply refract light at any network speed, regardless of the protocol being deployed.
F-tone provides a complete portfolio of CWDM Mux Demux and Optical Add Drop Multiplexer (OADM) units to suit all applications such as: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV. And we provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice.

Front Panel Details

a

Common port:

• LC, SC, ST and FC connectors available.

b

Standard port 1310nm:

• Allows a legacy 1310nm signal to pass. That is to say, it can carry LR optics, LX optics etc.
• LC, SC, ST and FC connectors available.

c

Standard port 1550nm:

• Allows a legacy 1550nm signal to pass. That is to say, it can carry ER optics, ZR optics, LX optics, ZX optics etc.
• LC, SC, ST and FC connectors available.

d

Mux/Demux port for specific wavelengths:

• LC, SC, ST and FC connectors available.
• Compliant with the ITU G.657A1 standard as default.

e

Express port:

• Enables the cascading of two CWDM mux/demux modules, doubling the channel capacity on the common fiber link.
• Channel Isolation is 15dB as default, 16dB ~40dB available on request.
• LC, SC, ST and FC connectors available.

f

Monitor port:

• Connects measurement/monitoring equipment, such as power meters or network analyzers, to the module outputs.
• When finished monitoring, disconnect the instruments and the network is left undisturbed.
• LC, SC, ST and FC connectors available.
• Tap percentage is 5% as default, 1%, 2%, 3%, or 10% available on request.

NOTE:

• Actual layout depends on the chosen connector type as well as other factors. However, the principal scheme stays the same
• We provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice, need more details, please contact at [email protected]
• When using with 1310nm legacy SDH/SONET, CWDM wavelengths 1270, 1290, 1310, 1330 and 1350nm should not be used.
• When using with 1550nm legacy SDN/SONET, CWDM wavelengths 1510, 1530, 1550, 1570 and 1590nm should not be used.

Item Details

• 18 channels CWDM mux and demux in one 1U Rack
• Com port is duplex
• 1U 19 inch Rack Mount Housing
• It is equipped with configuration ports like Monitor, Express port according to customer choice (see options)
• Front panel is equipped with adapters according to customer choice (see options)
• Passive, no electric power required. (MTBF ca. 500 years)
• Insertion loss: 6dB
• Simple to install, requires no configuration or maintenance
• ISO 9001 manufacturing facility

Mechanical Details for Housing

Note: Please, note that the drawings shown here only show the dimensions and do not the specific configuration of the module.

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
