18 channels ABS Pigtailed Module Simplex CWDM OADM East or West

Part Number: 18S-ABS-FTCADM

18 channels CWDM OADM East or West ABS Pigtailed Module Simplex

Simplex CWDM OADM for East or West Traffic

The Simplex CWDM/AD modules add (multiplex) and drop (demultiplex) selected wavelengths over single fiber Simplex CWDM MUX or DEMUX link for East or West Traffic.

F-tone CWDM OADM ( CWDM/AD) modules are Course Wave Division Multiplexing (CWDM) Optical Add and Drop Multiplexers (OADM). "Add" and "drop" here refer to the capability of the device to add one or more new wavelength channels to an existing multi-wavelength WDM signal, and to drop (remove) one or more channels, passing those signals to another network path.

The CWDM/AD is a passive optical add/drop multiplexer designed for point-to-point, ring, or bus configurations' applications that provides the ideal solution for the increasing bandwidth demand on enterprise and metro access networks and delivers dramatic cost savings to network equipment manufacturers, enabling them to develop metro access systems that are lower in cost, easier to provision and simpler to operate.

Added/dropped channels are interfaced to any of F-tone CWDM transceivers on the equipment side, and we also provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice.

Front Panel Details

a

Common port:

• Trunk input and output in west and east traffic.
• LC, SC, ST and FC connectors available.

b

Add/Drop port for specific wavelength:

• Add and Drop on west or east.
• LC, SC, ST and FC connectors available .
• Compliant to ITU-T G.657A1 CWDM standard from 1270nm to 1610nm, with 20nm increase.

NOTE:

• Actual layout depends on the chosen connector type as well as other factors. However, the principal scheme stays the same
• We also provide optional port configurations such as Monitor Port for these multiplexers according to customer choice, need more details, please contact at [email protected]

Item Details

• 18 channel CWDM OADM
• 1 x Common ports for West or East traffic: Simplex Connector
• All Add/Drop Channels for West or East traffic: Simplex Connector; Channel separation 20nm from 1270nm to 1610nm

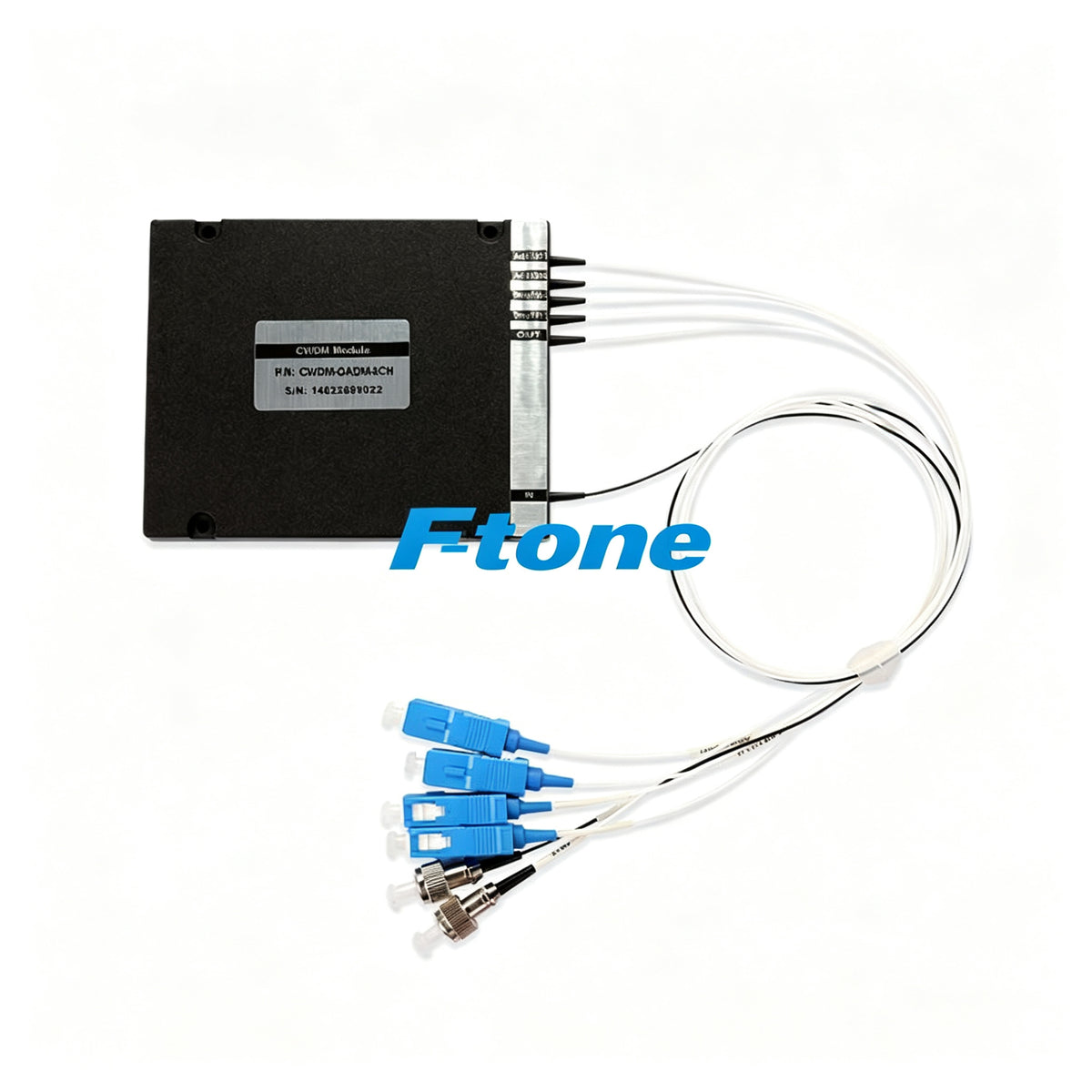

• 1 x ABS pigtailed housing
• OADM complement to the express CWDM product line
• Compliant to ITU-T G.657A1 CWDM standard
• Protocol and rate transparent for applications up to 10Gbp
• Low-cost transceivers applicable, existing equipment can still be used
• It is equipped with configuration ports like Monitor, Express port according to customer choice (see options)
• Front panel is equipped with adapters according to customer choice (see options)
• ISO 9001 manufacturing facility

Mechanical Details for Housing

Note: Please, note that the drawings shown here only show the dimensions and do not the specific configuration of the module.

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
