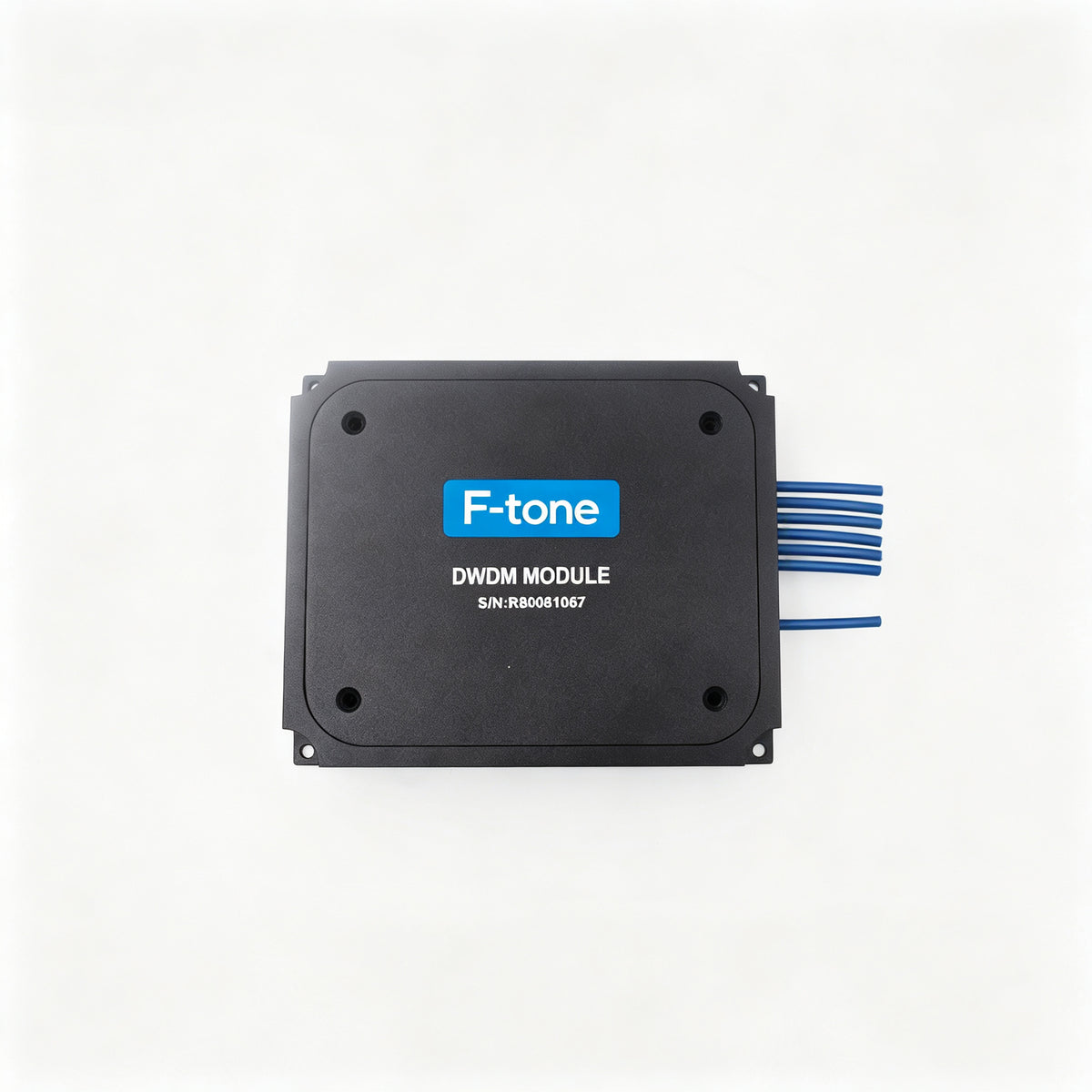

DWDM technology is an important part of optical fiber communication field, for improving the transmission capacity and efficiency of optical fiber network.
Features & Applications
| Features | Applications |
|---|---|
| Low Insertion Loss | DWDM System |
| High Return Loss & Channel Isolation | GPON Networks |
| Good Channel to Channel Uniformity | CATV Links |
| High Reliability & Stability |
Specifications
| Parameter | Unit | Value |
|---|---|---|
| Channel Number | - | 1x16 |
| Center Wavelength | nm | ITU Grid |
| Channel Space | Ghz | 100 or 200 |
| Center Wavelength Accuracy | nm | 100G:±0.05; 200G: ±0.1 |
| Max. Insertion Loss | Mux to Demux (Link) | dB / 7.5 |
| Min. Isolation | Adjacent channel | dB / 30 |
| Max. Channel Flatness | dB | 0.3 |
| Min. Return Loss | dB | 50 |
| Min. Extinction Ratio at 23℃ | dB | 16 |
| Max. Wavelength Thermal Stability | nm/℃ | 0.003 |
| Max. Insertion Loss Thermal Stability | dB/℃ | 0.005 |
| Max. Power Handling (CW) | mW | 500 |
| Operating Temperature | ℃ | 0~+70 |
| Storage Temperature | ℃ | -40~+85 |
Ordering Information
①
- Module Type:
M=Mux, D=Demux
②
- Channel Space:
1=100G, 2=200G
③③
- Intial Wavelength:
26=26CH, 27=27CH, ..., 40=40CH, 41=41CH, SS=Specified
④④④
- Port Type:
116=1x16, SSS=Specified
⑤
- Working Axis:
B=Both axis working, F=Fast axis blocked
⑥⑥⑥
- Fiber Type:
001=PM1550, 002=PM1310, SSS=Specified
⑦
-
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
