F-tone's 1x4 1550nm Polarization Maintaining Fused Coupler is based on proven “Fused Biconical Tapered” technique (FBT) —molten and stretched fibers between which light passes. It enables users to split a single input signal evenly into 4 output signals, which is ideal for high-channel-count applications.
Features & Applications
| Features | Applications |
|---|---|
| High Power Handling | Coherent Communication |
| Low Insertion Loss | Power Monitor |
| High Stability & Reliability | Fiber Sensor |
Specifications
| Parameter | Unit | Value |
|---|---|---|
| Center Wavelength | nm | 1550 |
| Operating Bandwidth | nm | ±15 |
| Insertion Loss | dB | 7 |
| Min. Extinction Ratio | dB | 17 |
| Splitting Ratio | % | 25:25:25:25 |
| Min. Directivity | dB | 50 |
| Max. Return Loss | dB | 50 |
| Max. Optical Power (CW) | mw | 300 |
| Fiber Type | - | PM Panda Fiber |

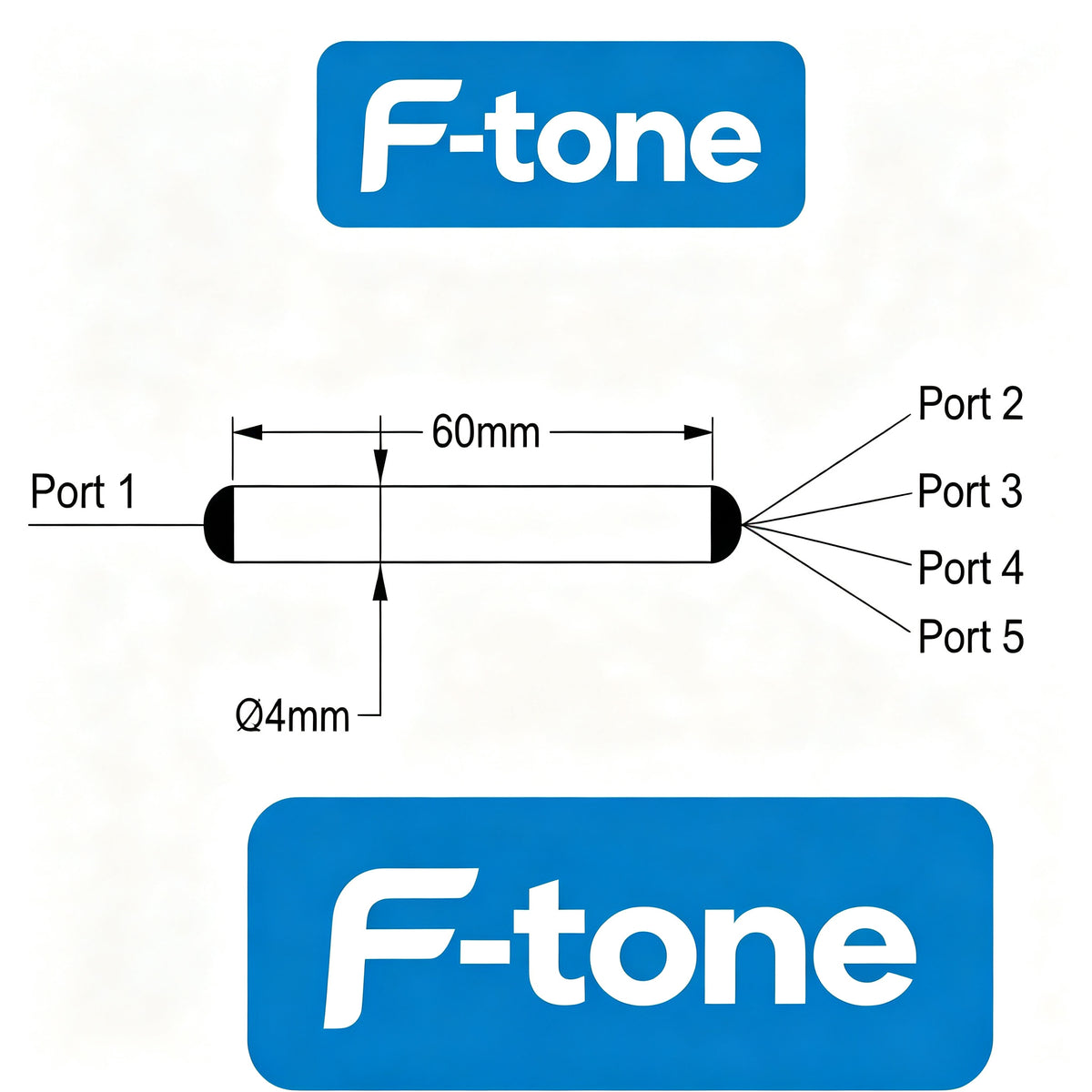

| Package Dimensions (Bare fiber) | mm | Φ4*60 |
| Package Dimensions (900um loose tube) | mm | Φ4*70 |
| Operating Temperature | ℃ | -5~+70 |
| Storage Temperature | ℃ | -40~+85 |
Ordering Information
Ordering Information: PMFUC-①①①①-②②-③③③-④⑤-⑥-⑦⑧
①①①① - Wavelength: 1550=1550nm
②② - Port Type: 14=1x4
③③③ - Fiber Type: 001=PM1550
④ - Package Dimensions: 0=φ4.0x60mm, 1=φ4.0x70mm, S=Specified
⑤ - Pigtail Type: 0=bare fiber, 1=900μm loose tube
⑥ - Fiber Length: 0.8=0.8m, 1.0=1m, S=Specified
⑦ - Connector Type for Input: 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified
⑧ - Connector Type for Output: 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified
*With connectors, the Max. handling power is 1W only, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.
*The default connector key is aligned to slow axis.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
