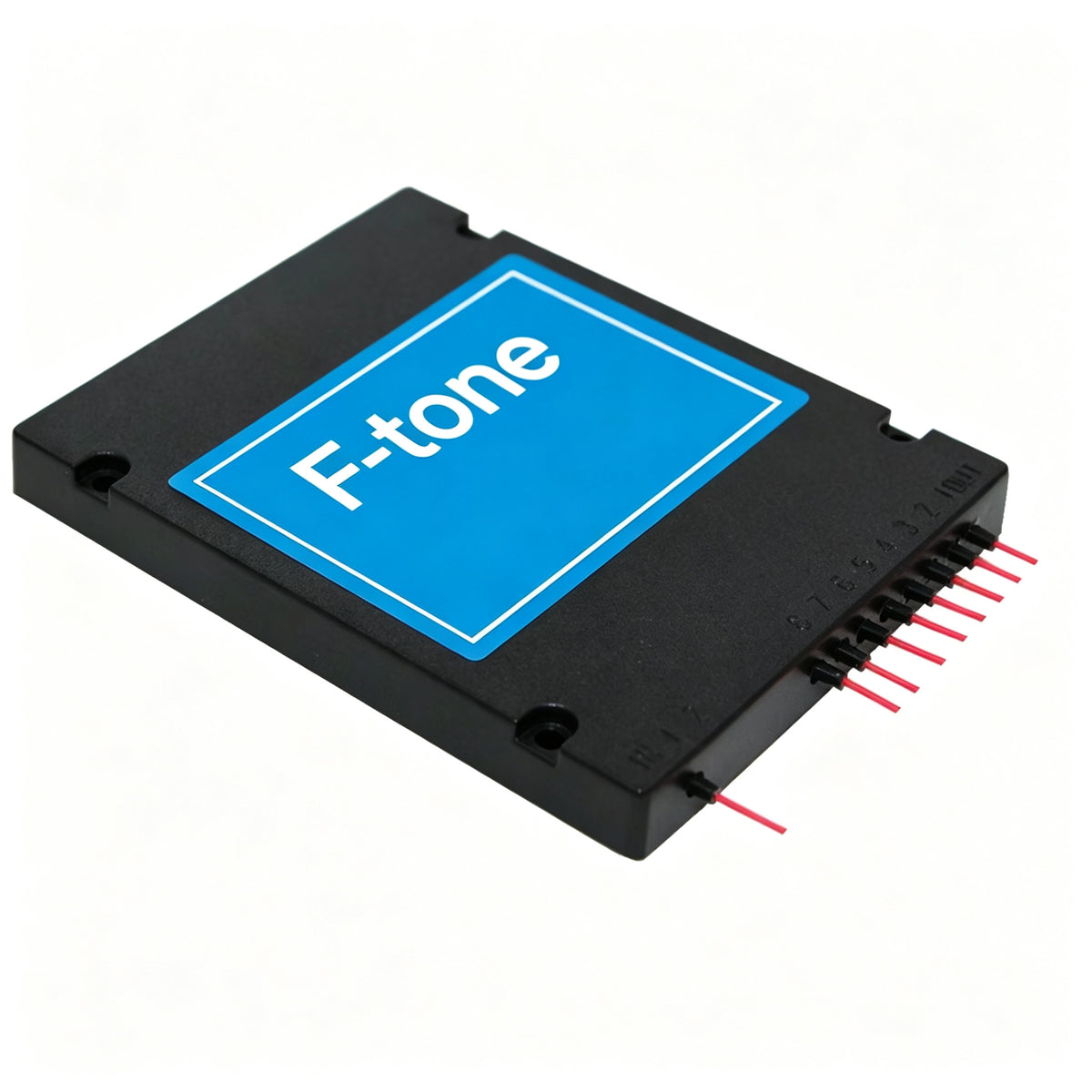

Coarse wavelength Division multiplexer (WDM) is a low-cost WDM transmission technology for the access layer of metropolitan area network (MAN). the optical multiplexer multiplexes optical signals of different wavelengths into a single optical fiber for transmission, the receiving end decomgenerates the mixed signals in the optical fiber into signals of different wavelengths through the optical demultiplexer, and is connected to the corresponding receiving equipment.
Features & Applications
| Features | Applications |
|---|---|
| Low Insertion Loss | DWDM System |
| High Return Loss & Channel Isolation | GPON Networks |
| Good Channel to Channel Uniformity | CATV Links |
| High Reliability & Stability |
Specifications
| Parameter | Unit | Value |
|---|---|---|
| Channel Number | - | 1x4 |
| Center Wavelength | nm | ITU or ITU+1 |
| Channel Space | Ghz | 1260~1460 or 1460~1620 or 1260~1620 |
| Channel Space | nm | 20 |
| Min. Channel Bandwidth @λc | nm | ± 6.5 |
| Max. Channel Flatness | dB | 0.4 |
| Max. Insertion Loss | Mux to Demux (Link) | dB / 2.2 |
| Min. Isolation | Adjacent channel | dB / 30 |
| Min. Return Loss | dB | 50 |
| Min. Extinction Ratio at 23℃ | dB | 20 |
| Max. Wavelength Thermal Stability | nm/℃ | 0.003 |
| Max. Insertion Loss Thermal Stability | dB/℃ | 0.005 |
| Max. Power Handling (CW) | mW | 500 |
| Operating Temperature | ℃ | 0~+70 |
| Storage Temperature | ℃ | -40~+85 |
Ordering Information
①
- Module Type:
M=Mux, D=Demux
②
- Operating Wavelength:
F=Full wave(1260nm~1620nm), H=half wave(1260~1460 or 1460~1620)
③③
- Start Wavelength:
27=1270nm or 1271nm, ..., 55=1550 or 1551nm, ..., 61=1610nm or 1611nm
④④④
- Port type:
104=1x4, SSS=Specified
⑤
- Working Axis:
B=Both axis working, F=Fast axis blocked
⑥⑥⑥
- Fiber Type:
001=PM1550, 002=PM1310, SSS=Specified
⑦
-
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
