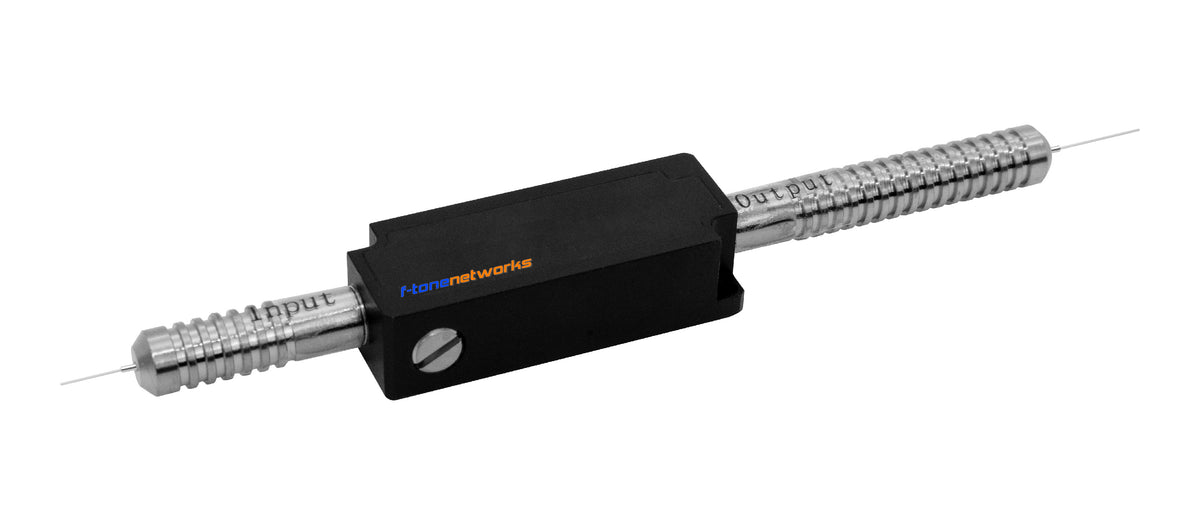

2 μm High Power Polarization Maintaining Isolator
The Polarization Maintaining Isolator is characterized with excellent environmental stability and reliability. It is designed for 2 μm polarization maintaining fiber amplifers, fiber laser systems.
| Key Features | Applications |
| High Power Handling | Fiber Optic Instruments |
| Parameter | Unit | Value |
| Center Wavelength (λc) | nm | 2000 |
| Max. Extinction Ratio | dB | 18 |
| Min. Isolation @ λc, 23 ℃ | dB | 40 |
| Max. Insertion Loss @ λc ± 20 nm, All Polarization States | dB | 1.6 |
| Min. Return Loss (Input/Output) | dB | 45 |
| Max. Average Optical Power | W | 20 |
| Max. Peak Power for ns Pulse | kW | 10 |
| Max. Tensile Load | N | 5 |
| Fiber Type | — | Specified by Ordering Info |
| Operating Temperature | ℃ | 10 to + 50 |
| Storage Temperature | ℃ | 0 to + 65 |
1IL is 0.3 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added.
2Optical Power is 1W only for connector added. Connector key is aligned to slow axis.
3The input light ER of the customer system needs to be greater than 16 dB.
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Other details are available from any F-tone Networks sales representative.
