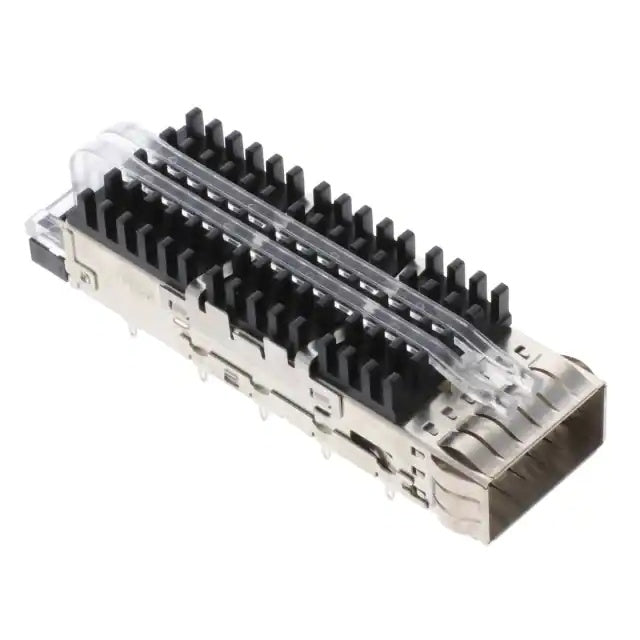

2-2170705-5 TE ZQSFP+ Cage Assembly With Heat Sink Included Lightpipe 28 Gb/s

2-2170705-5 TE ZQSFP+ Cage Assembly With Heat Sink Included Lightpipe 28 Gb/s

View full details

zQSFP+, Cage Assembly, 1 x 1, Internal/External EMI Springs, Included Lightpipe, Standard, Data Rate (Max) 28 Gb/s



    Part Number 2-2170705-5  Part Status Active
    Connector Style Cage with Heat Sink Connector Type ZQSFP+
    Number of Positions - Mounting Type Through Hole, Right Angle
    Termination Press-Fit Features EMI Shielded
    Port Matrix Configuration 1x1 Ports Number of Ports 1
    Number of Rear EONs per Port Column 2 Data Rate (Max)(Gb/s) 28
    Operating Temperature Range -40 – 85°C Pluggable I/O Applications SFP+ Stacked Belly-to-Belly
    Circuit Application Signal EMI Containment Feature Type Internal/External EMI Springs
    Included Lightpipe No Cage Material Nickel Silver
    PCB Thickness (Recommended) 1.57mm[.062in] Tail Length 2.05mm[.081in]
