2007215-1 SFP+ Cage Press-Fit Through Hole 16 Gb/s

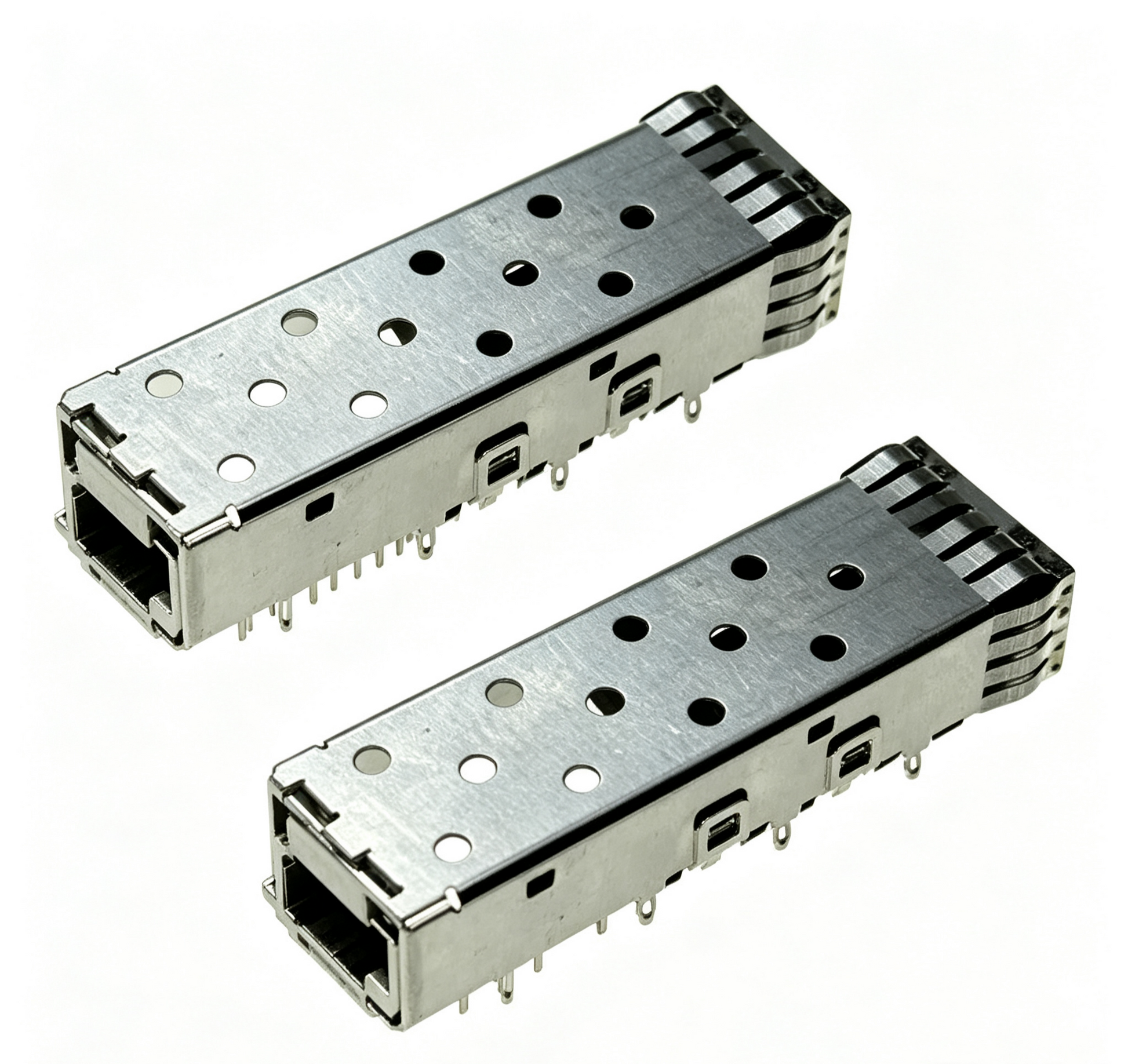

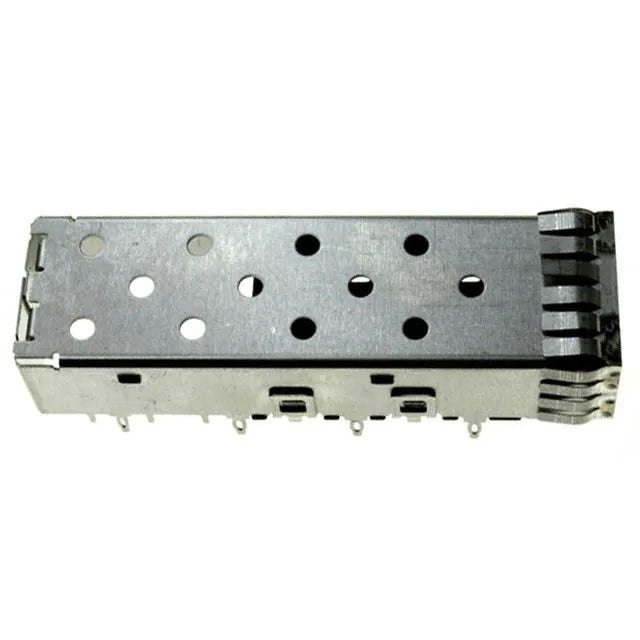

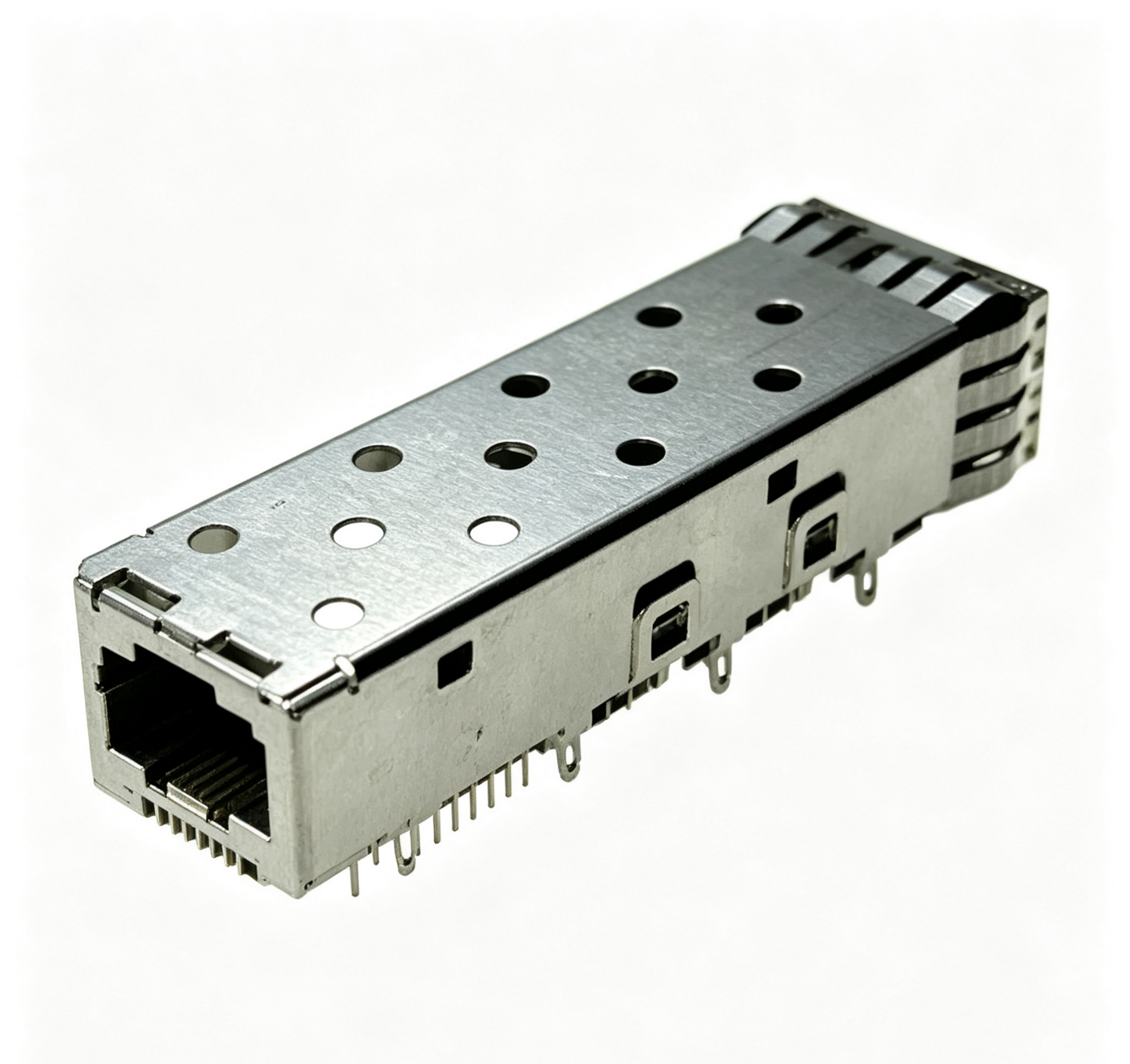

TE 2007215-1 1x1 SFP+ Cage Assembly

Engineered to deliver uncompromising signal integrity and robust physical protection for next-generation data center and telecommunications infrastructure, the TE 2007215-1 is a premium 1x1 (single-port) SFP+ cage assembly. Designed as a ruggedized cable-to-board mechanical receptacle to house high-speed Small Form-factor Pluggable Plus (SFP+) optical transceivers and direct-attach copper (DAC) cables, this shielding cage seamlessly supports data transmission rates up to 16 Gb/s. Operating as a standalone mechanical housing, it is explicitly designed to envelop discrete surface-mount (SMT) SFP+ electrical connectors, granting hardware architects maximum layout flexibility on the printed circuit board (PCB).

Constructed to endure severe environmental extremes, this cage assembly delivers intrinsic resistance to oxidation and robust mechanical durability across a military-grade temperature range of -55°C to 105°C. Utilizing a highly reliable solderless Through Hole Press-Fit mounting mechanism, the 2007215-1 ensures precise PCB alignment and a permanent, vibration-resistant connection ideal for mission-critical networking hardware.

Single Port Architecture & PCB Integration

The discrete 1x1 port configuration serves as an essential mechanical foundation for modular, high-capacity aggregation routers, edge switches, and specialized telecommunications equipment requiring flexible, single-channel transceiver placements.

• SMT Connector Compatibility: Designed to mate seamlessly with standard 20-position SFP+ SMT electrical connectors, ensuring exact mechanical alignment and optimal 16 Gbps signal fidelity.
• Streamlined Front Panel (No Lightpipes): Designed explicitly without integrated lightpipes, this cage offers a clean, low-interference outer profile. This is highly advantageous for custom faceplate bezels or systems that rely on external, chassis-mounted diagnostic LEDs, significantly reducing internal trace routing complexity.

Advanced EMI Containment via Active Springs

Managing Electromagnetic Interference (EMI) at 16 Gb/s frequencies is a critical design mandate, especially in densely packed rack environments. The 2007215-1 achieves superior electromagnetic compatibility (EMC) through its advanced shielding construction.

• Active EMI Springs: Heavy-duty metallic EMI springs surround the front perimeter of the cage opening. These external springs compress directly against the inner edge of the metallic chassis bezel, creating a continuous 360-degree, low-impedance electrical path to ground, effectively sealing the enclosure against external Radio Frequency Interference (RFI).
• High-Frequency Shielding: The robust metallic structure acts as a continuous Faraday shield, aggressively containing internal high-frequency emissions generated by the PHY transceivers and ensuring strict compliance with FCC, CE, and CISPR regulatory standards.

Mechanical Design & Press-Fit Manufacturing

Hardware engineers prioritize long-term mechanical reliability alongside high-yield automated manufacturing. The 2007215-1 leverages robust Through-Hole Technology (THT) to optimize the PCB assembly workflow.

• Press-Fit (Compliant Pin) Technology: The cage utilizes a Through-Hole Press-Fit mounting style. The compliant pins are driven directly into plated through-holes (PTH) on the PCB, creating a cold-welded, gas-tight mechanical bond that heavily resists vibration, physical shock, and completely eliminates the thermal fatigue associated with secondary wave soldering.
• Extreme Thermal Endurance: The extended -55°C to 105°C operating range ensures uninterrupted physical protection for optics deployed in unconditioned outdoor enclosures, industrial factory floors, and aerospace applications.

Technical Specifications
