TE Connectivity 2007251-1 Compatible SFP+ 1x6 Cage Assembly Technical Overview

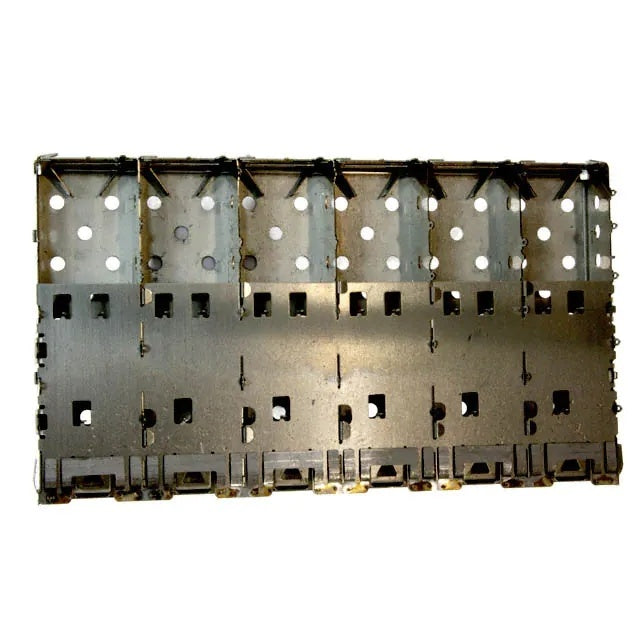

The TE Connectivity 2007251-1 is a 1x6 ganged SFP+ 6-port cage assembly with external metallic EMI springs designed for TE Connectivity 2007251-1 compatible applications in high-density 10Gb/s Ethernet and 16Gb/s Fibre Channel platforms. Featuring solderless press-fit PCB mounting, a nickel silver alloy housing, and belly-to-belly board mounting support, it provides ultra-dense 6-port I/O consolidation, reliable chassis grounding, and mechanical module retention for enterprise storage directors, core switches, and telecom infrastructure.
- Mechanical Form Factor: 1x6 Ganged Single-Row 6-Port SFP+ Cage Assembly (Lightpipe-free low-profile footprint).
- Signal Ecosystem Support: Engineered for 10GbE optical transceivers, 16G Fibre Channel modules, and Direct Attach Copper (DAC) cables operating up to 16 Gb/s (SFF-8431).
- Board Mount Technology: Solderless Through-Hole Press-Fit termination with 2.05mm tail length, optimized for thick 2.25mm [.089 in] enterprise PCB substrates.
- Alternative Sourcing Option: Multi-source engineering options are available to support secondary sourcing strategies, BOM cost optimization, and supply chain flexibility.
| Part Number | 2007251-1 | Part Status | Active |
| Connector Style | Cage, Ganged (1 x 6) | Connector Type | SFP+ |
| Data Rate (Max)(Gb/s) | 16 | Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 1x6 Ports | Number of Ports | 6 |
| Number of Rear EONs per Port Column | - | Connector Mounting Type | Board Mount |
| Operating Temperature Range | -55 – 105°C | Pluggable I/O Applications | SFP+ Stacked Belly-to-Belly |
| Circuit Application | Signal | EMI Containment Feature Type | EMI Springs |
| Included Lightpipe | NO | Cage Material | Nickel Silver Alloy |
| PCB Thickness (Recommended) | 2.25mm[.089in] | Tail Length | 2.05mm[.081in] |
Contact us.
For any inquiries, please feel free to contact us. We reply within 24 hours.
📧 Email: una@f-tone.com
📱 Mobile / WhatsApp / WeChat: +86 177 6116 3895
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
