SFP+,Cage Assembly,Data Rate (Max) 16 Gb/s,External Springs,SFP+,1 x 1,Pin,Heat Sink Height 4.2 mm [.165 in]

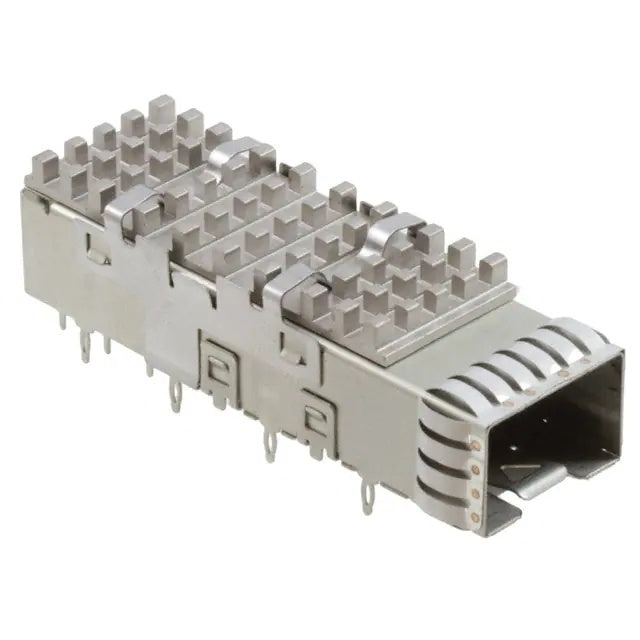

The 2007464-1 SFP+ cage assembly is a high-performance 1x1 port connector designed for 16 Gb/s high-speed networking applications. Integrated with a 4.2 mm heat sink and EMI spring structure, it delivers enhanced thermal management and superior electromagnetic shielding for stable signal integrity in dense electronic environments.
Engineered with a through-hole right-angle press-fit design, this SFP+ cage ensures secure PCB mounting, excellent mechanical strength, and efficient assembly for board-level optical and copper interconnect systems. The nickel silver alloy construction improves durability, corrosion resistance, and long-term reliability under continuous operation.
Optimized for SFP+ stacked belly-to-belly configurations, this connector supports switches, routers, servers, storage systems, and telecom equipment requiring compact, high-bandwidth connectivity. Its wide operating temperature range of -55°C to +105°C makes it suitable for industrial, enterprise, and carrier-grade networking environments.
Designed for OEM-grade networking hardware, the 2007464-1 cage provides effective EMI containment, improved heat dissipation, and reliable 16 Gb/s performance for next-generation high-speed communication systems.
Technical Specifications
| Part Number | 2007464-1 | Part Status | Active |
| Connector Style | Cage with Heat Sink | Connector Type | SFP+ |
| Data Rate (Max)(Gb/s) | 16 | Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 1x1 Ports | Number of Ports | 1 |
| Number of Rear EONs per Port Column | - | Connector Mounting Type | Board Mount |
| Operating Temperature Range | -55 – 105°C | Pluggable I/O Applications | SFP+ Stacked Belly-to-Belly |
| Circuit Application | Signal | EMI Containment Feature Type | EMI Springs |
| Included Lightpipe | NO | Cage Material | Nickel Silver Alloy |
| PCB Thickness (Recommended) | 2.25mm[.089in] | Tail Length | 2.05mm[.081in] |
