TE Connectivity 2007492-8 Compatible SFP+ 2x1 Stacked Cage Assembly Technical Overview
The TE Connectivity 2007492-8 is a 2x1 stacked SFP+ cage assembly with an integrated 40-position host electrical connector designed for TE Connectivity 2007492-8 compatible applications in high-density 10Gb/s Ethernet and 16Gb/s Fibre Channel systems. Featuring a fully solderless press-fit design for both cage and receptacle pins, a nickel silver housing, and external metallic EMI springs, it combines vertical 2-port I/O density consolidation, low transfer impedance panel grounding, and simplified board assembly for enterprise switches, SAN storage arrays, and telecom infrastructure.
- Mechanical Form Factor: 2x1 Stacked 2-Port Vertical SFP+ Cage Assembly with integrated dual-tier 40-position electrical receptacle (Lightpipe-free profile).
- Signal Ecosystem Support: Engineered for 10GbE optical transceivers, 16G Fibre Channel modules, and Direct Attach Copper (DAC) cables operating up to 16 Gb/s (SFF-8431).
- Board Mount Technology: Solderless Through-Hole Press-Fit termination with 3.0mm [.118 in] tail length, optimized for standard 1.5mm [.059 in] PCB substrates.
- Alternative Sourcing Option: Multi-source engineering options are available to support secondary sourcing strategies, BOM cost optimization, and supply chain flexibility.
TE Connectivity 2007492-8 SFP+ Cage Assembly Product Overview

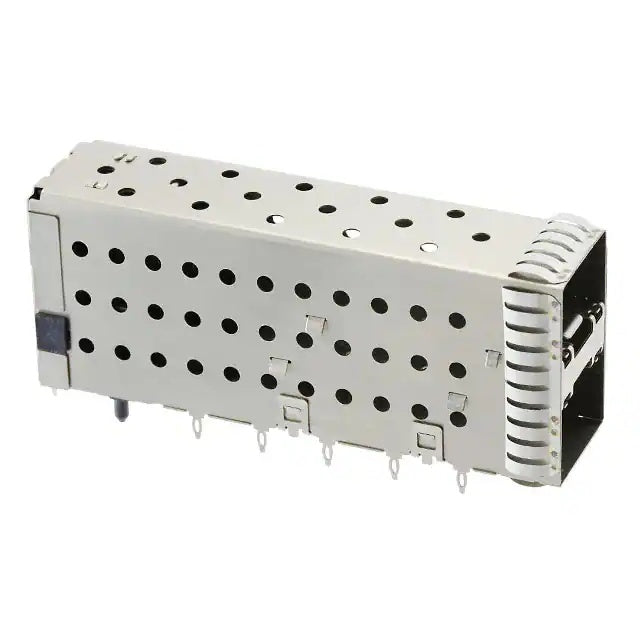

TE Connectivity 2007492-8 is an integrated 2x1 stacked SFP+ receptacle and cage assembly featuring external perimeter metallic EMI spring gaskets, nickel silver alloy construction, and press-fit PCB mounting. Designed for vertical port expansion on high-density line cards in enterprise core switches, SAN storage arrays, and telecom enclosures, this 2-port stacked assembly integrates the 40-position electrical card-edge receptacle inside the cage body, eliminating secondary SMT host connector reflow operations (-55°C to +105°C).
| Part Number | 2007492-8 | Part Status | Active |
| Connector Style | Receptacle with Cage, Ganged (2x1) | Connector Type | SFP+ |
| Data Rate (Max)(Gb/s) | 16 | Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 2x1 Ports | Number of Ports | 2 |
| Number of Positions | 40 | Connector Mounting Type | Board Mount |
| Operating Temperature Range | -55 – 105°C | Pluggable I/O Applications | SFP+ |
| Circuit Application | Signal | EMI Containment Feature Type | External Springs |
| Included Lightpipe | NO | Cage Material | Nickel Silver |
| PCB Thickness (Recommended) | 1.5mm[.059in] | Tail Length | 3mm[.118in] |
