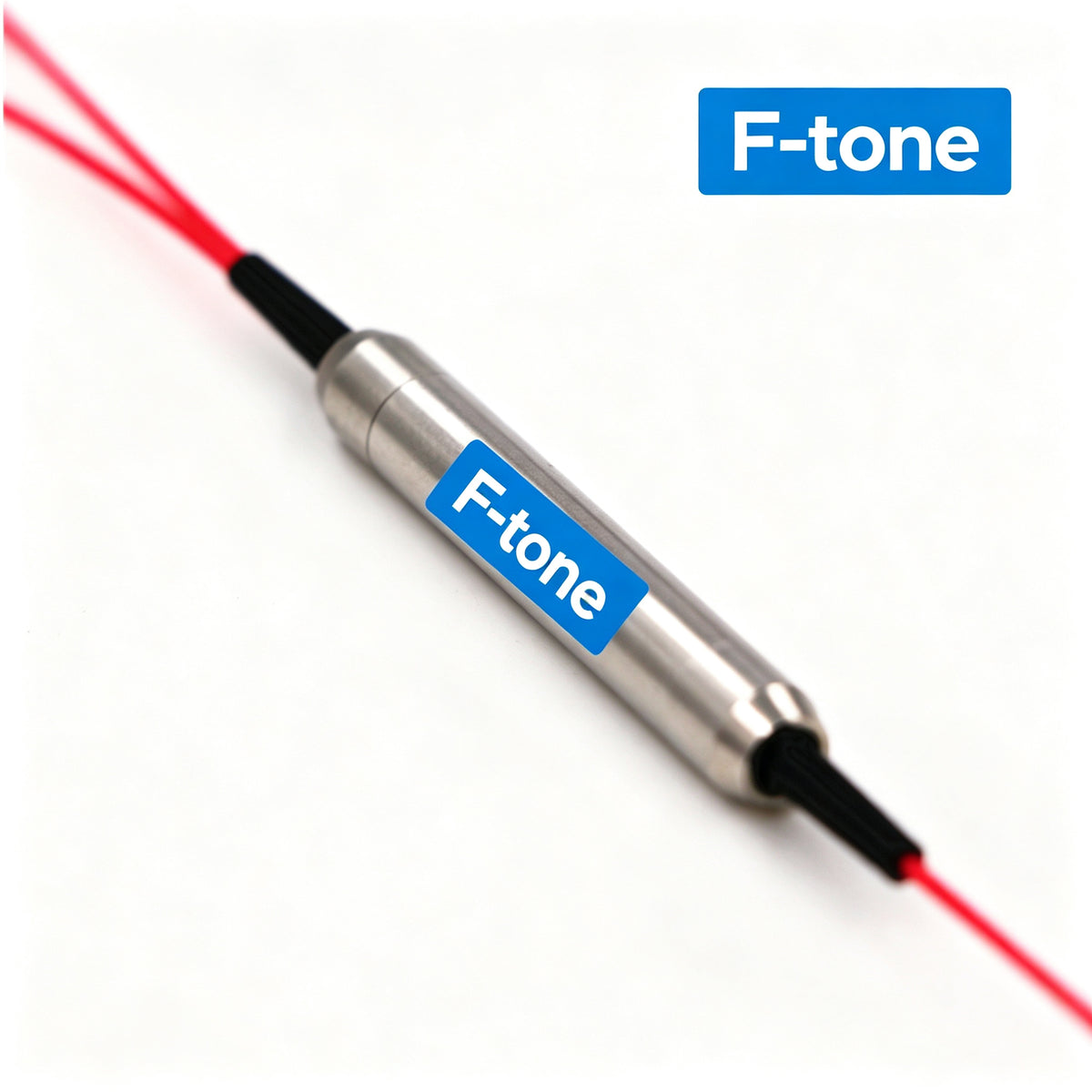

The Polarization Maintaining Dense Wavelength Division Multiplexer is manufactured based on environmentally stable thin film filter technology. The DWDM is designed mainly for signals adding/dropping on OADM, and Mux/Demux DWDM communication systems, with the advantage of high isolation, low insertion loss, excellent environmental stability and high power handling capability.
Features & Applications
| Features | Applications |
|---|---|
| Low Insertion Loss | DWDM Module |
| High Return Loss | DWDM System |
| High Isolation | GPON Networks |
| High Reliability & Stability | CATV Links |
Specifications
| Parameter | Unit | Value |
|---|---|---|
| Channel Space | Ghz | 200 |
| Center Wavelength | nm | ITU Grid |
| Center Wavelength Accuracy | nm | ±0.1 |
| Channel Pass band (@-0.5dB) | nm | 0.5 |
| Max. Insertion Loss at 23℃ | Transmission Channel | dB / 0.9 |
| Min. Isolation at 23℃ | Adjacent Channel | dB / 30 |
| Max. Channel Flatness | dB | 0.3 |
| Min. Extinction Ratio at 23℃ | dB | 20 |
| Max. Wavelength Thermal Stability | nm/℃ | 0.003 |
| Max. Insertion Loss Thermal Stability | dB/℃ | 0.005 |
| Min. Return Loss at 23℃ | dB | 50 |
| Max. Power Handling (CW) | mW | 500 |
| Fiber Type | - | PM Panda fiber |
| Operating Temperature | ℃ | 0~+70 |
| Storage Temperature | ℃ | -40~+85 |
Ordering Information
①①
- Wavelength:
26=26CH, 27=27CH, ..., 40=40CH, 41=41CH, SS=Specified
②
- Configuration:
2=1x1, 3=1x2
③
- Channel Space:
2=200G
④
- Working Axis:
B=Both axis working, F=Fast axis blocked
⑤⑤⑤
- Fiber Type:
001=PM1550, 002=PM1310, SSS=Specified
⑥
-
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
