Part Number: 20XFMTPLCOM4

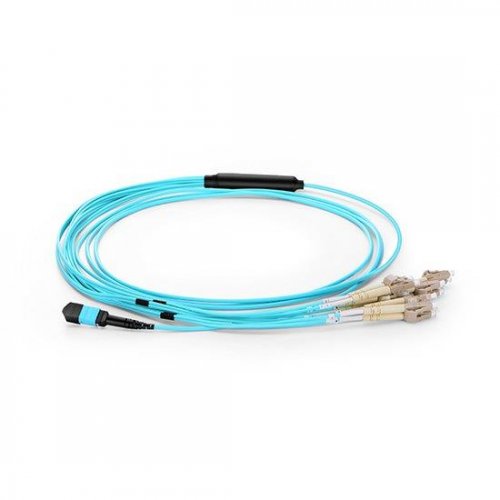

Low Loss MTP-10LC Duplex OM4 50/125 Multimode Fiber Optic Harness Fan-out/Breakout Cable
| Connector A | MTP | Connector B | LC UPC (10) |
|---|---|---|---|
| Fiber Category | 50μm MM (OM4) | Fiber Count | 24 |
| Fiber Type | Duplex | Wavelength | 850nm |
| Cable Jacket | 3.0mm LSZH-Magenta | Fan-Out Diameter | 2.0mm |
| Insertion loss, max. | ≤0.35dB | Return Loss,min. | MTP≥20dB, LC≥30dB |
| Breakout Length | 0.5m | Durability | ≥500 times |
| Min. Bend Radius Installation | 29 mm | Min. Bend Radius Operation | 15 mm |
| Tensile strength | 400 N | Crush resistance (Reversible) | 750 N/10 cm |
| Operating Temperature | -40° to +80°C | Fiber Grade | G.651 |
2. From which direction should the staggered harness cable utilizing your switch? Figure 2 illustrates the different cabling directions.
| Polarity | Key Position | Fiber Features | 12 Fibers Laying | Application |
|---|---|---|---|---|
| Type A (straight through transmission) | Key up | Each fiber is in the same position on each end | 1 to 1...12 to 12 | Typically for connecting FAPs and cassettes in 10Gbps networks |
| Type B(full flipped transmission) | Key up | The fiber is fully flipped on either end | 1 to 2 3 to 4...11 to 12 | Connecting to QSFP+ /CFP / FAPs or cassettes in 10G to 40G/100G |
b.3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards.
c.The flexibility of the tester provides the complete spectrum of optical testing required for complex and high fiber count cable assemblies.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
